Futureline Hinged Door

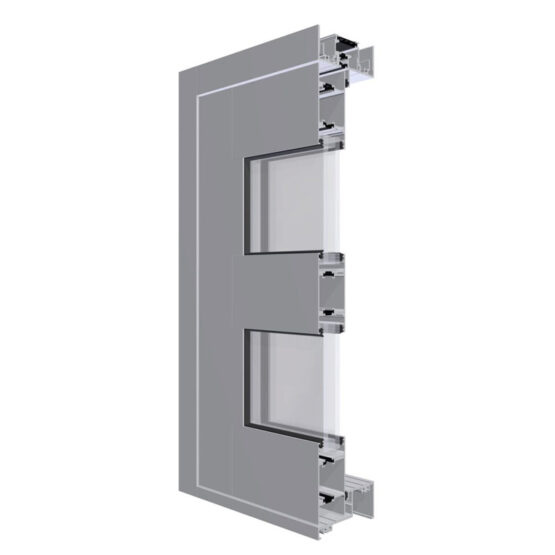

The Futureline Hinged Door system fits perfectly with any Futureline framing setup, giving you a top-notch thermally broken hinged door.
Broken
Certified
Rated
Key features
- Outstanding ‘Uw’ values down to 2.6
- Two rail and midrail (standard and tall) options
- Spigot Corner Joints
- Crisp, clean square profiles
- High Quality Hardware

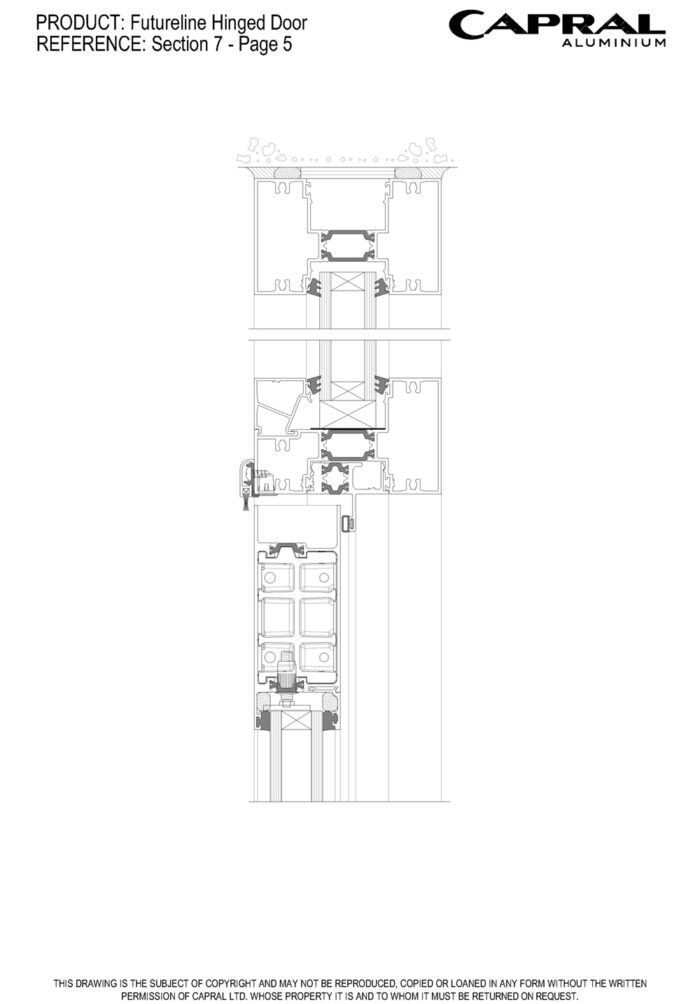

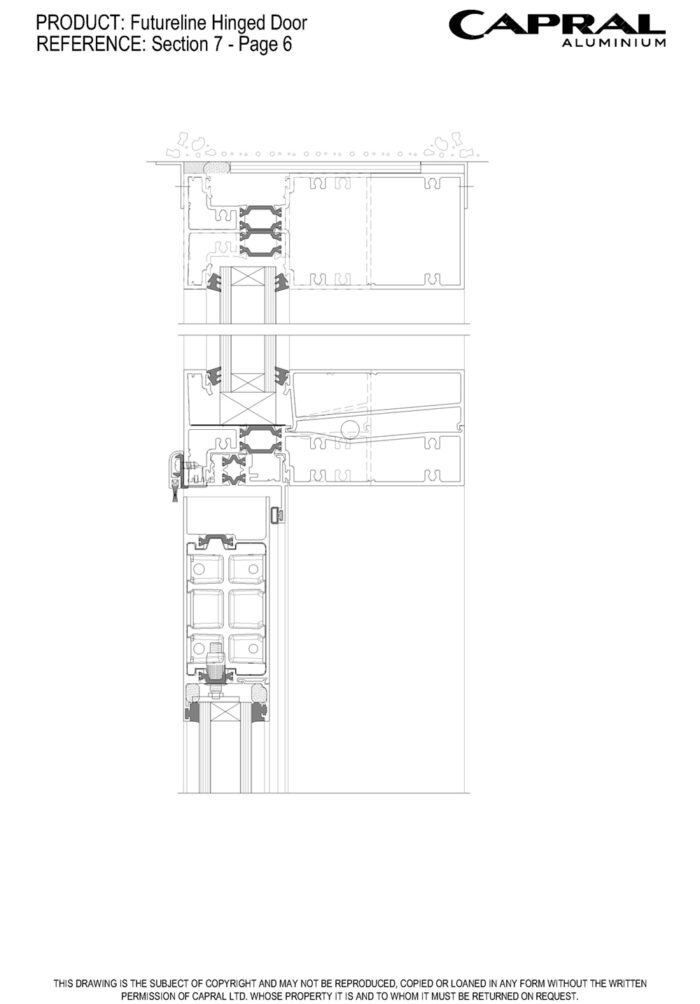

The Futureline Hinged Door system integrates seamlessly into the Futureline 425TB, 429TB & 629TB framing system to provide a high quality, thermally broken hinged door option.

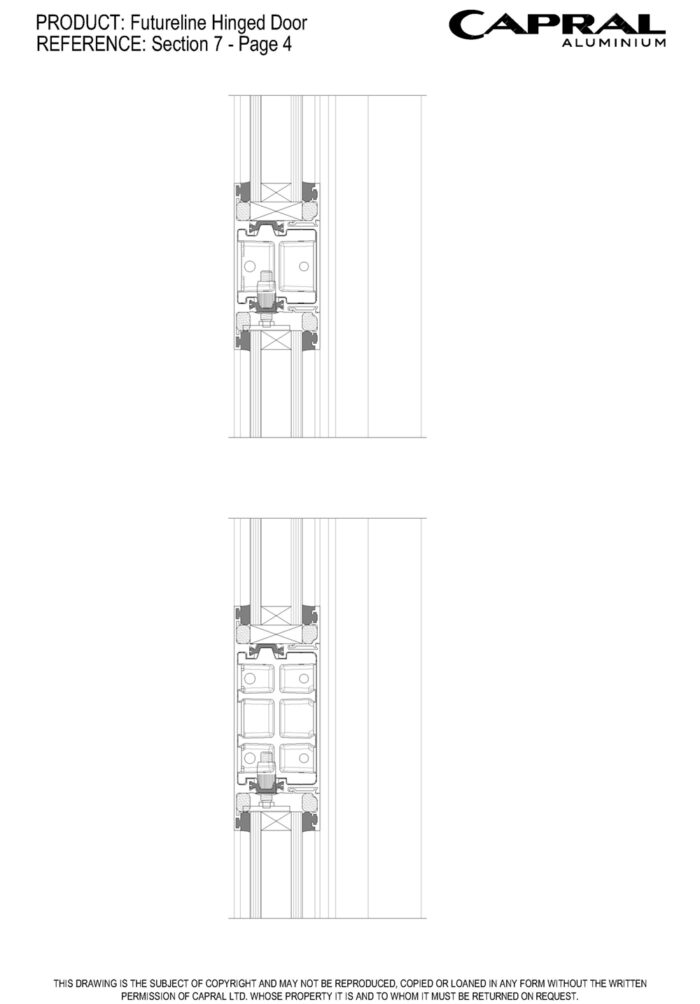

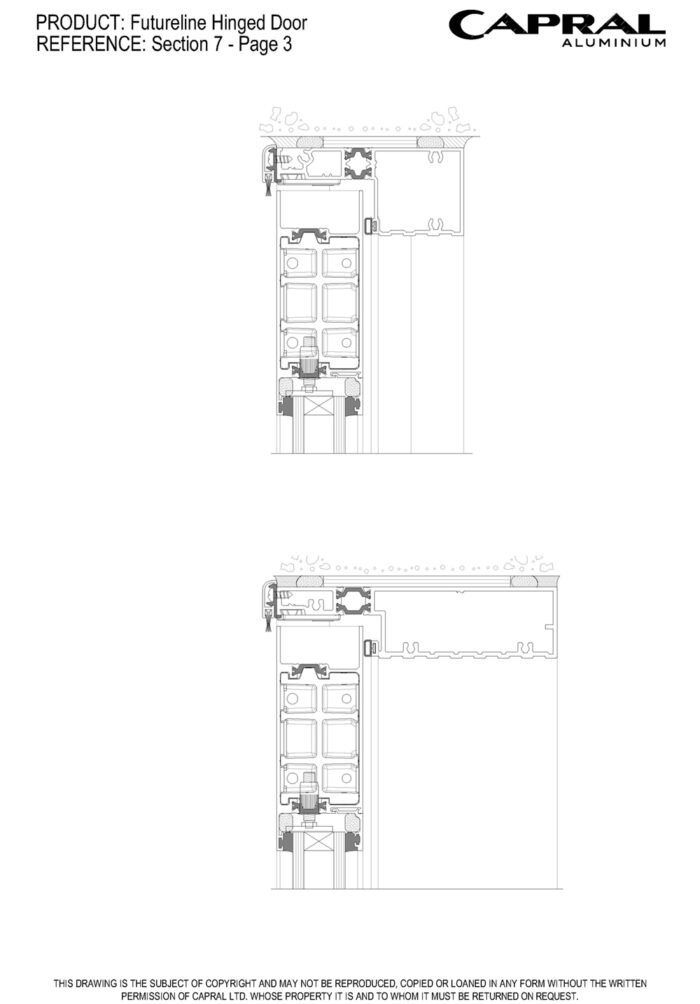

The 46mm door panel has been designed with clean, flat faces and a choice of standard or tall door rail options for added design flexibility. Midrails are also available to create a segmented look or to align with adjacent transoms.

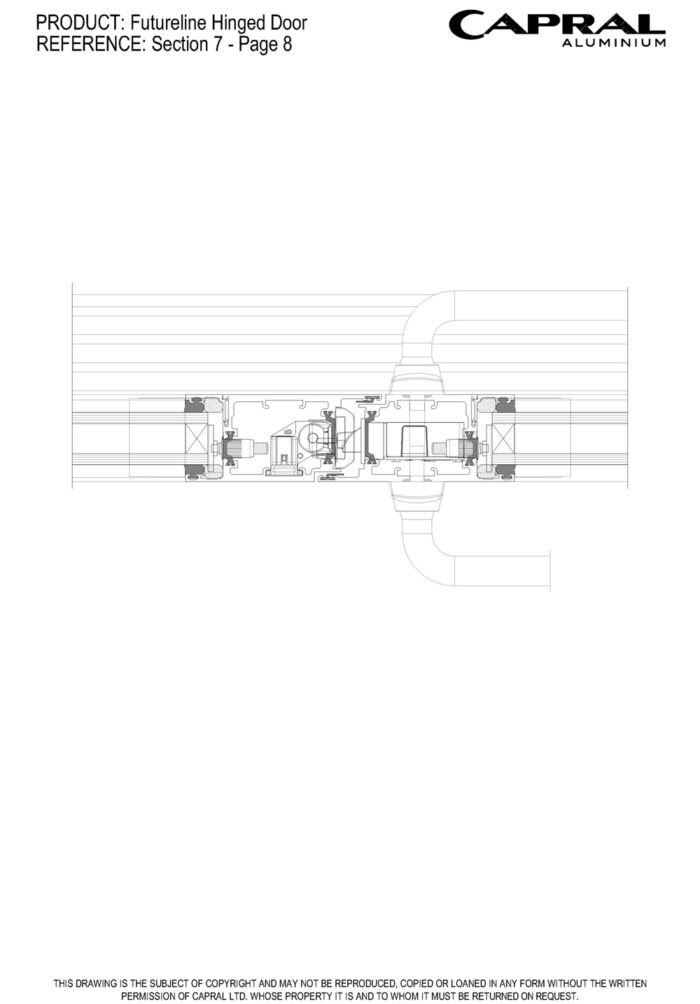

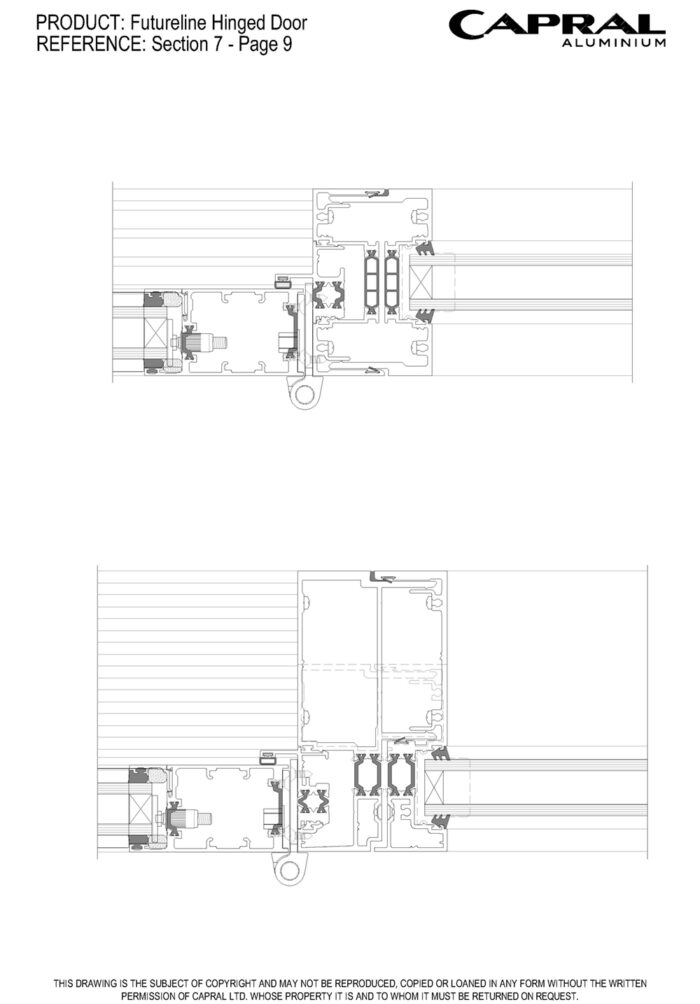

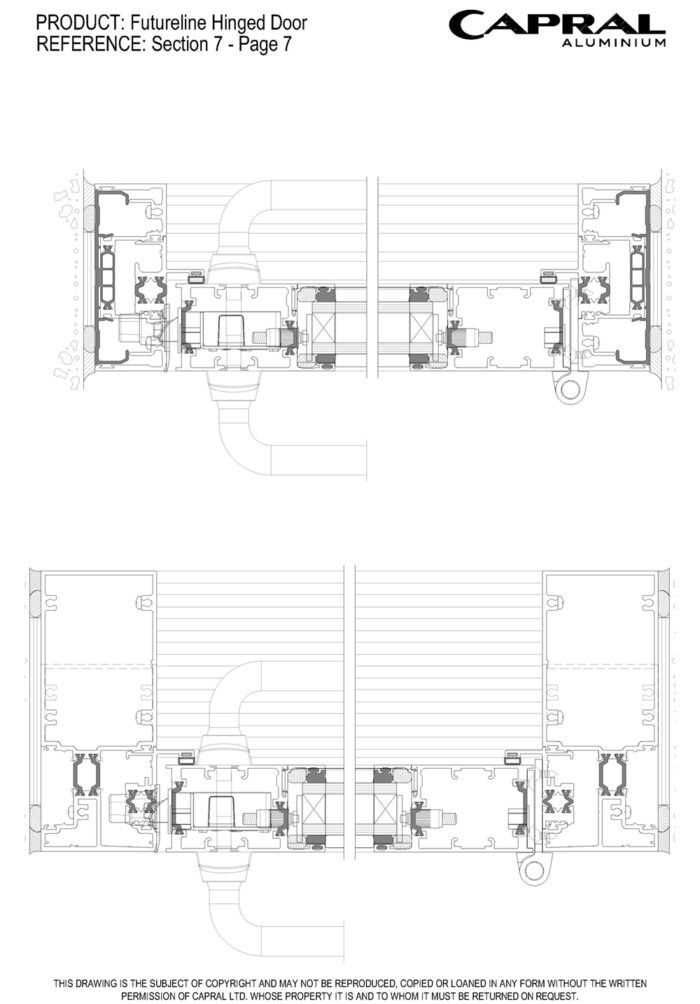

High quality hardware is featured throughout including thermally isolated hinges, heavy duty corner spigots and optional multi-point locks.
The door panel profiles incorporate a pair of wide thermal spacers to minimise heat transfer while a selection of glazing bead options accommodate double glazing up to a width of 32mm.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
1000
Panel Weight (kg)
115

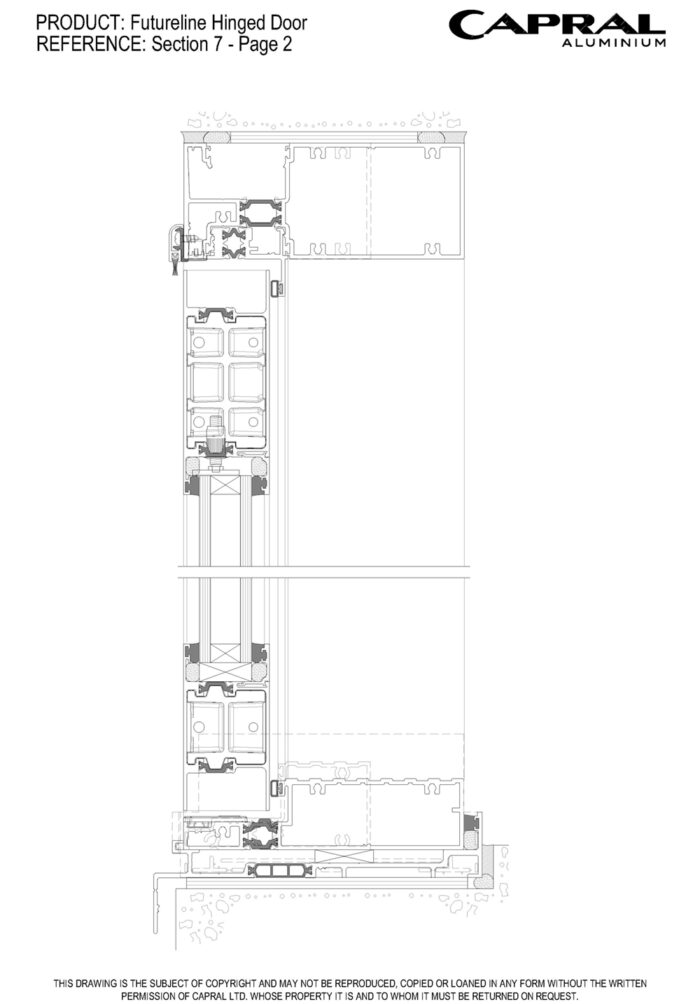

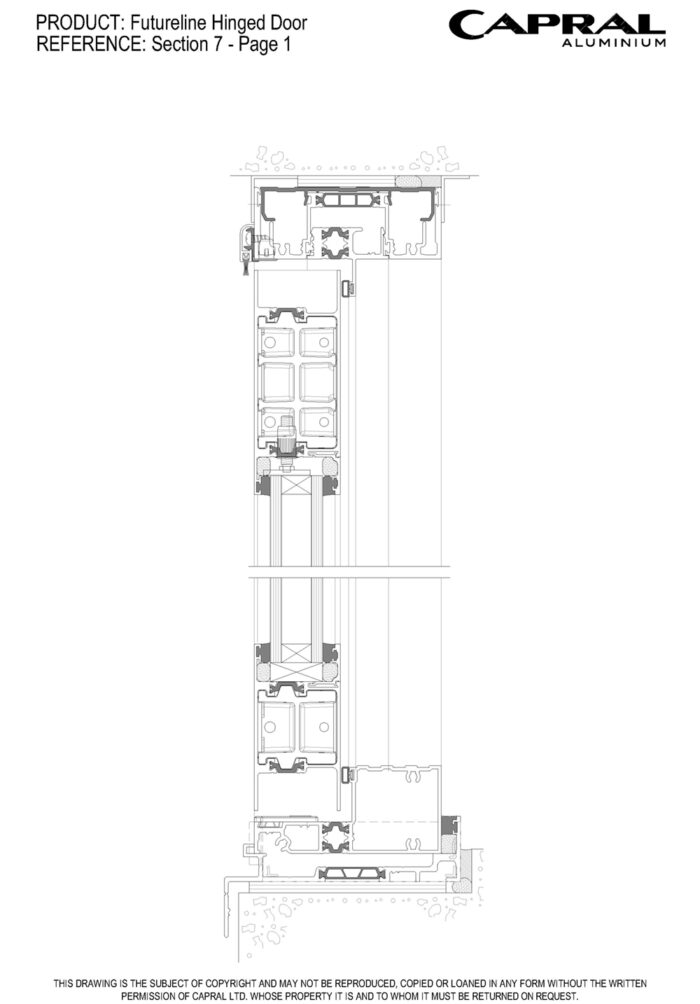

Frame Dimensions (mm)
Frame depth (mm)
100 & 150
Face Width (mm)
47, 38 & 80
Acoustic Rating
Rw (C;Ctr)
36 (-2;-2)
Maximum Product Performance
SLS (Pa)
1500
ULS (Pa)
2500
WATER (Pa)
600
Glazing Details
Single Glazed
6 - 10
Double Glazed
10 - 32
Wet glazing only
Energy Performance
Uw Range
2.4 - 3.7
SHGC Range
0.11 - 0.52
Tvw Range
0.04 - 0.52
Air infiltration
0.27 - 0.27
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Futureline Hinged Door
Technical Manual Futureline Sub Framing
Wall Charts
Extrusion Wall Chart Capral Screening
Extrusion Wall Chart Futureline Windows & Doors
BIM Files
Capral Futureline 225TB
CAD Files
CAD Files Capral Screening
CAD Files Futureline Hinged Door
CAD Files Futureline Sub Frames & Adapors
CAD Wall Chart Futureline Framing, Windows & Doors
Other
Compatible Products
Futureline 425TB Centre Glazed Framing System (100mm)The Capral Futureline 425TB centre glazed framing system incorporates the glazing capacity to accommodate high performance double glazed units up to 34mm while retaining crisp, clean profiles typically associated with the commercial glazing system.
Futureline 429TB Front Glazed Framing System (100mm)The Capral Futureline 429TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline 629TB Front Glazed Framing System (150mm)The Capral Futureline 629TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline 1029TB Front Glazed Framing System (250mm)Thermally-broken double-glazed aluminium framing combining both high performance and the sleek, precise profile of a commercial system.
