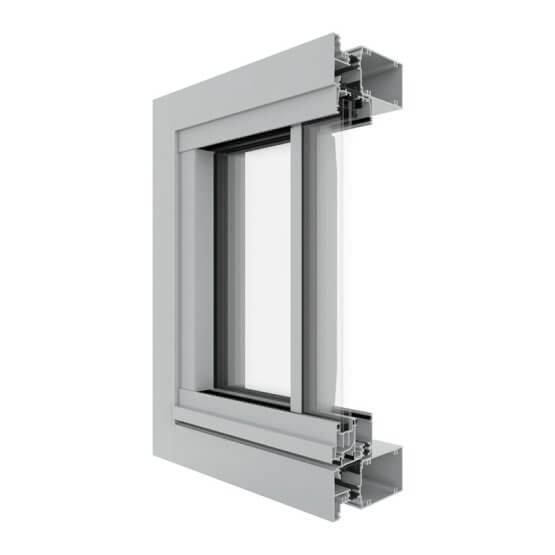

Futureline Horizontal Sashless Window
The Futureline Horizontal Sashless Window is a sleek, modern take on the traditional sliding window.
Broken
Certified
Rated
Key features
- Excellent ‘Uw’ values down to 2.2
- 100mm window restrictors available to prevent falls
- Compatible with the complete range of Futureline Framing systems
- Screens available
- It can be configured to suit a range of applications, including fixed panels
- Slide-Fixed (XO), Slide-Fixed-Slide (XOX) and Fixed-Slide (OX) configurations are available
- Available in 100mm and 150mm frames

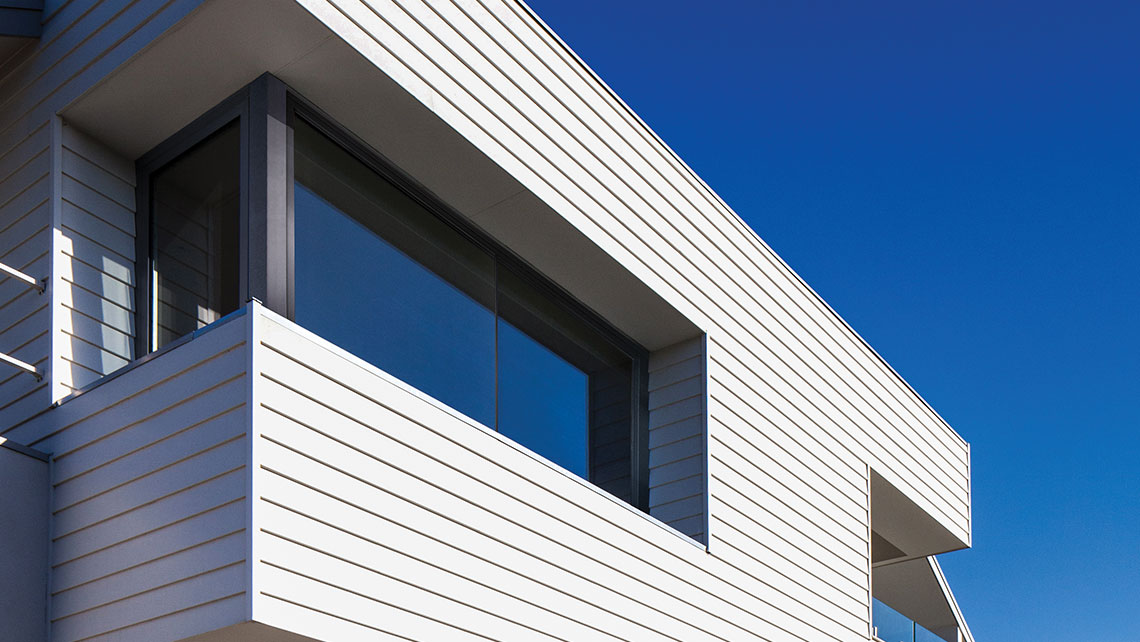

The Futureline Horizontal Sashless Window’s sashless panes provide the clearest possible view.
The Futureline Horizontal Sashless Window is a high-quality thermally broken sashless system utilising advanced Aneeta® technology, the leader in sashless window design. It offers total design flexibility, is available in multiple configurations using 2 or 3 panels to suit your opening, and is compatible with Futureline’s Framing Systems.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1607
Panel Weight (kg)
60
Maximum Product Performance
SLS (Pa)
2000
WATER (Pa)
300
Glazing Details
Double Glazed
22 - 22
Energy Performance
Uw Range
2.20 - 3.10
SHGC Range
0.21 - 0.59
Tvw Range
0.26 - 0.62
Air infiltration
0.6 - 0.6
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Futureline 425TB Framing System
Technical Manual Futureline 429TB Framing System
Technical Manual Futureline 629TB Framing System
Technical Manual Futureline Sub Framing
Capral Futureline Horizontal Sashless window
CAD Files
CAD Files Futureline 425TB Framing System

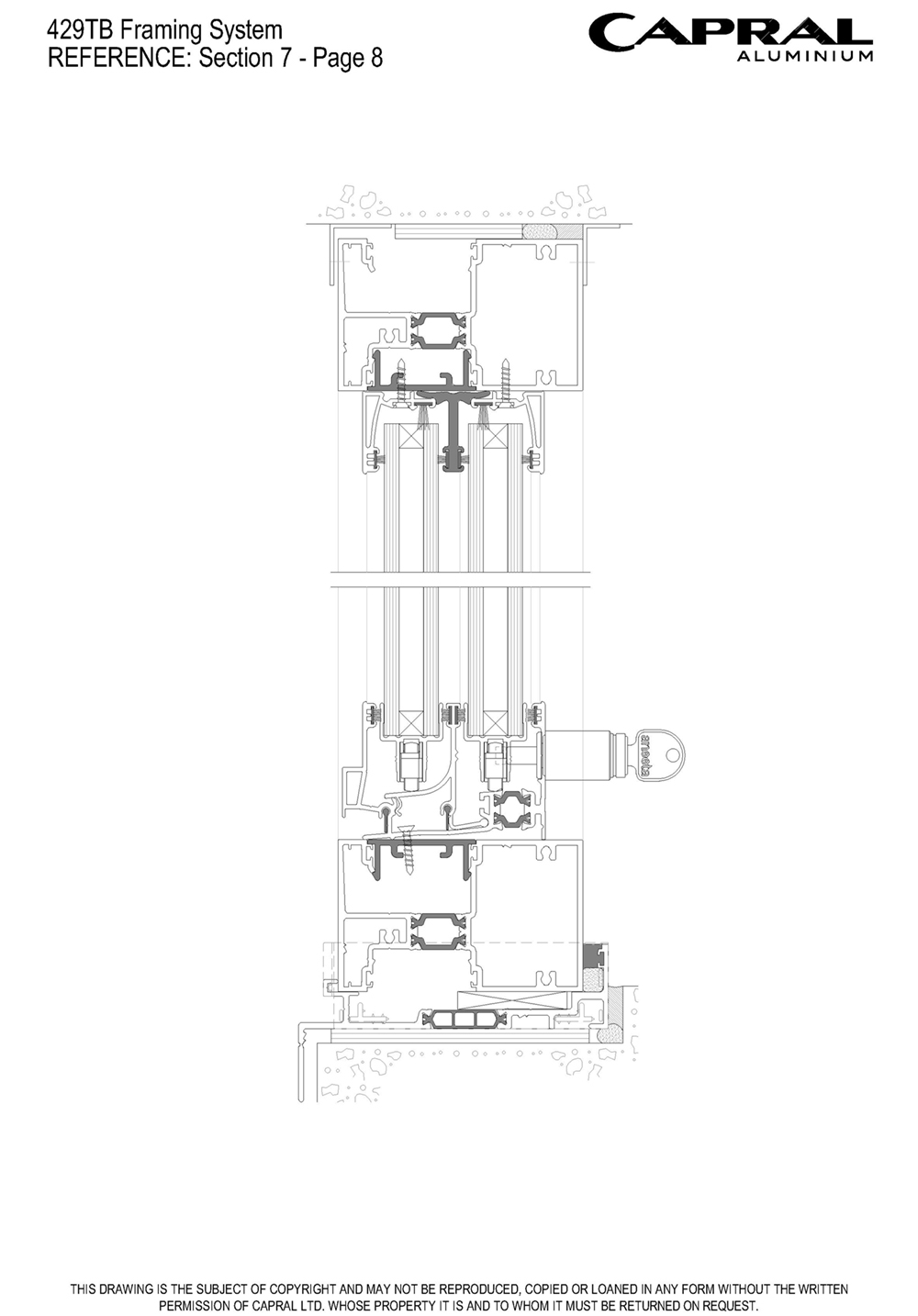

CAD Files Futureline 429TB Framing System

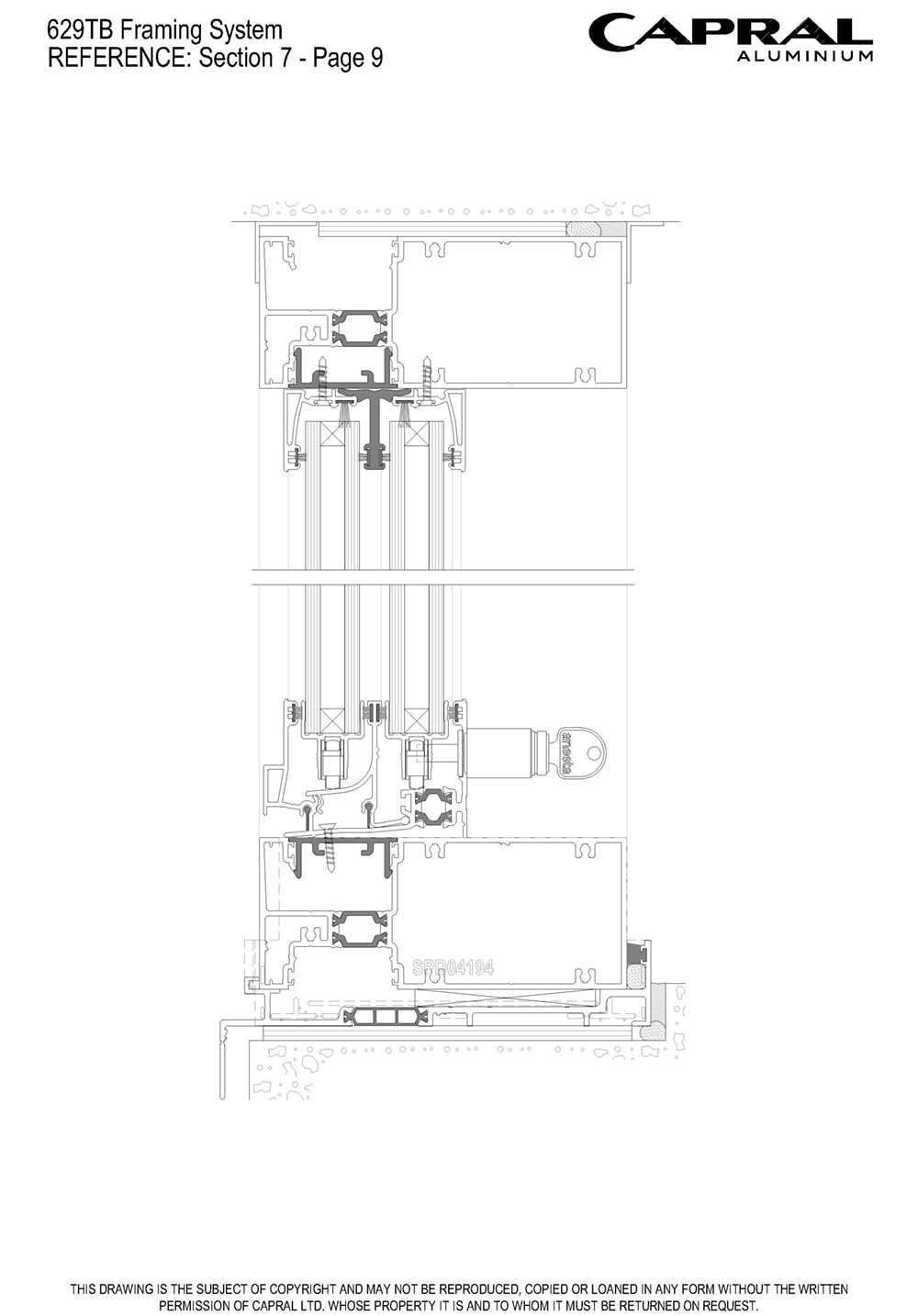

CAD Files Futureline 629TB Framing System
CAD Files Futureline Sub Frames & Adapors
Other
Environmental Protection Declaration (EPDs)
