Futureline Vertical Sashless Window

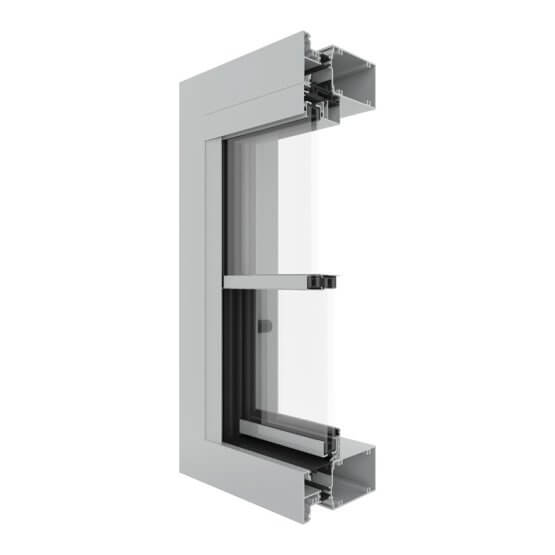

The Futureline Vertical Sashless Window is a sleek, modern take on the traditional double-hung window.
Broken
Certified
Rated
Tested
Key features
- Excellent ‘Uw’ values down to 2.0
- 100mm window restrictors available to prevent falls
- Compatible with the complete range of Futureline Framing systems
- Counterbalance sashless panes
- Screens available
- Available in 100mm and 150mm frames
As the name suggests, the Futureline Vertical Sashless Window’s panes are sashless, allowing an almost uninterrupted view.
The Futureline Vertical Sashless Window is a high-quality thermally broken sashless system utilising advanced Aneeta® technology, the leader in sashless window design. It offers design flexibility, is available in various configurations, and is compatible with Futureline’s Framing Systems.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
4000
Panel Width (mm)
1598
Panel Weight (kg)
40
Maximum Product Performance
SLS (Pa)
1200
ULS (Pa)
3000
WATER (Pa)
300
Glazing Details
Double Glazed
22 - 22
Energy Performance
Uw Range
2.30 - 3.10
SHGC Range
0.20 - 0.57
Tvw Range
0.24 - 0.58
Air infiltration
0.6 - 0.6
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Futureline 425TB Framing System
Technical Manual Futureline 429TB Framing System
Technical Manual Futureline 629TB Framing System
Technical Manual Futureline Sub Framing
Capral Futureline Vertical Sashless window
CAD Files

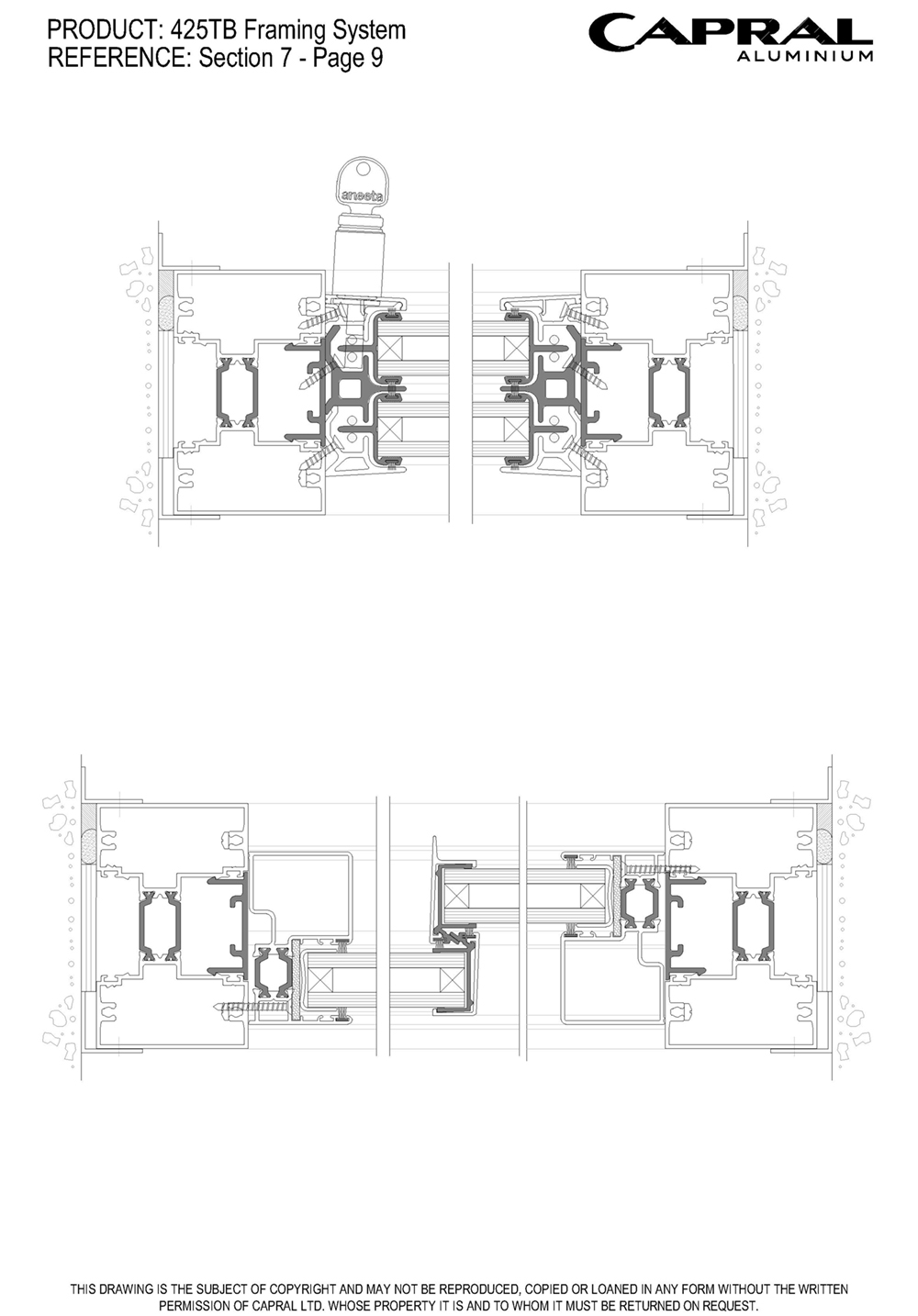

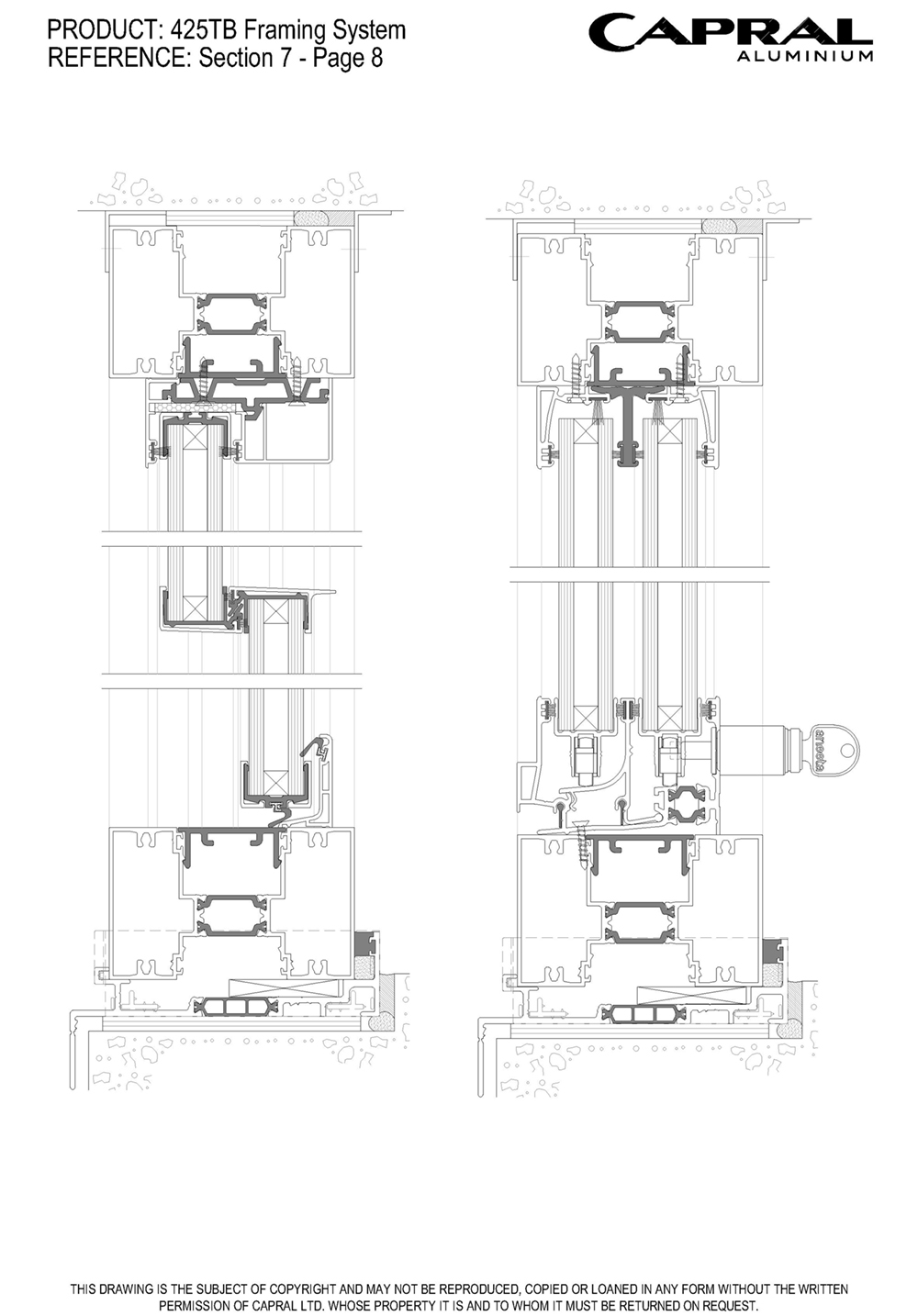

CAD Files Futureline 425TB Framing System

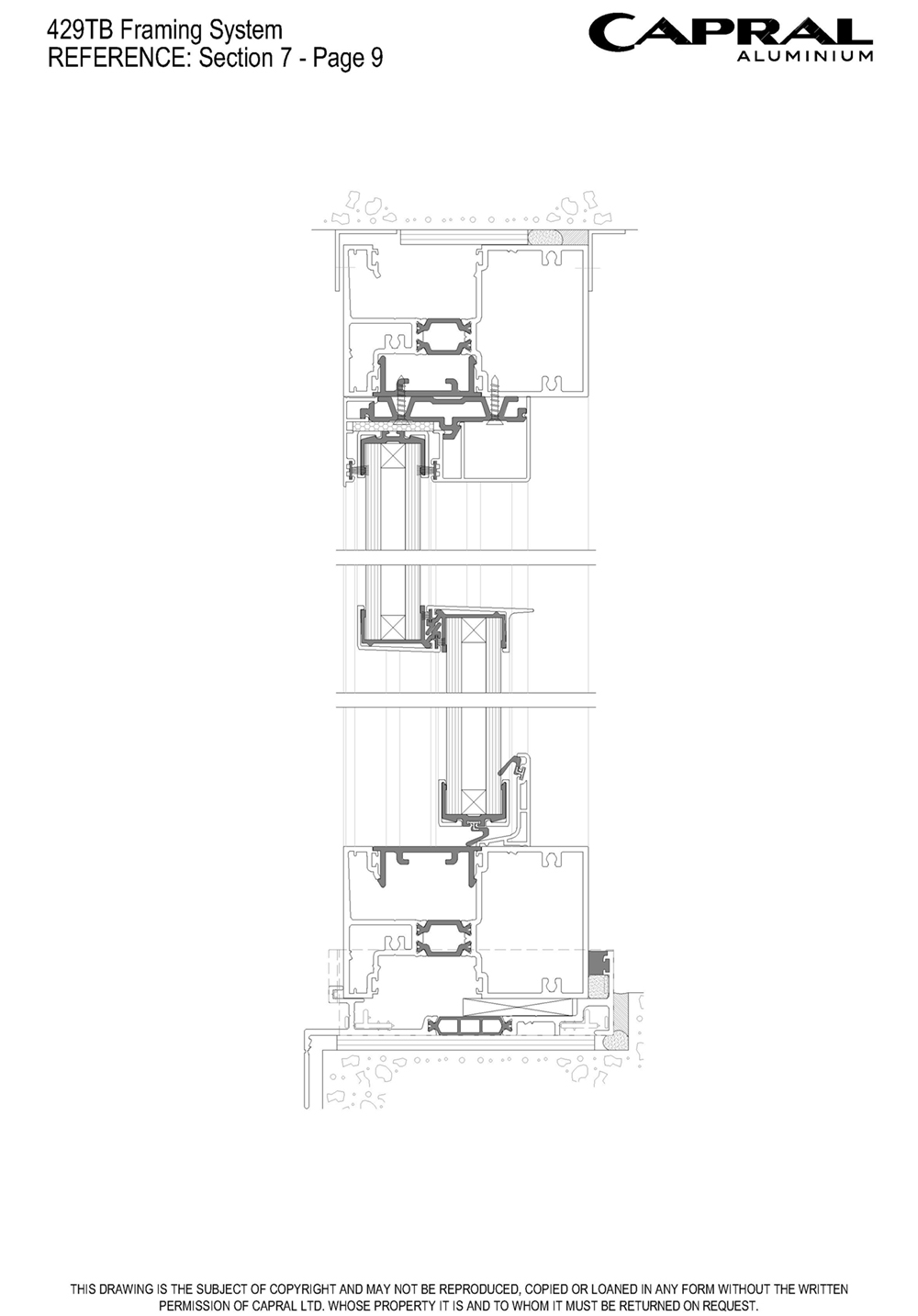

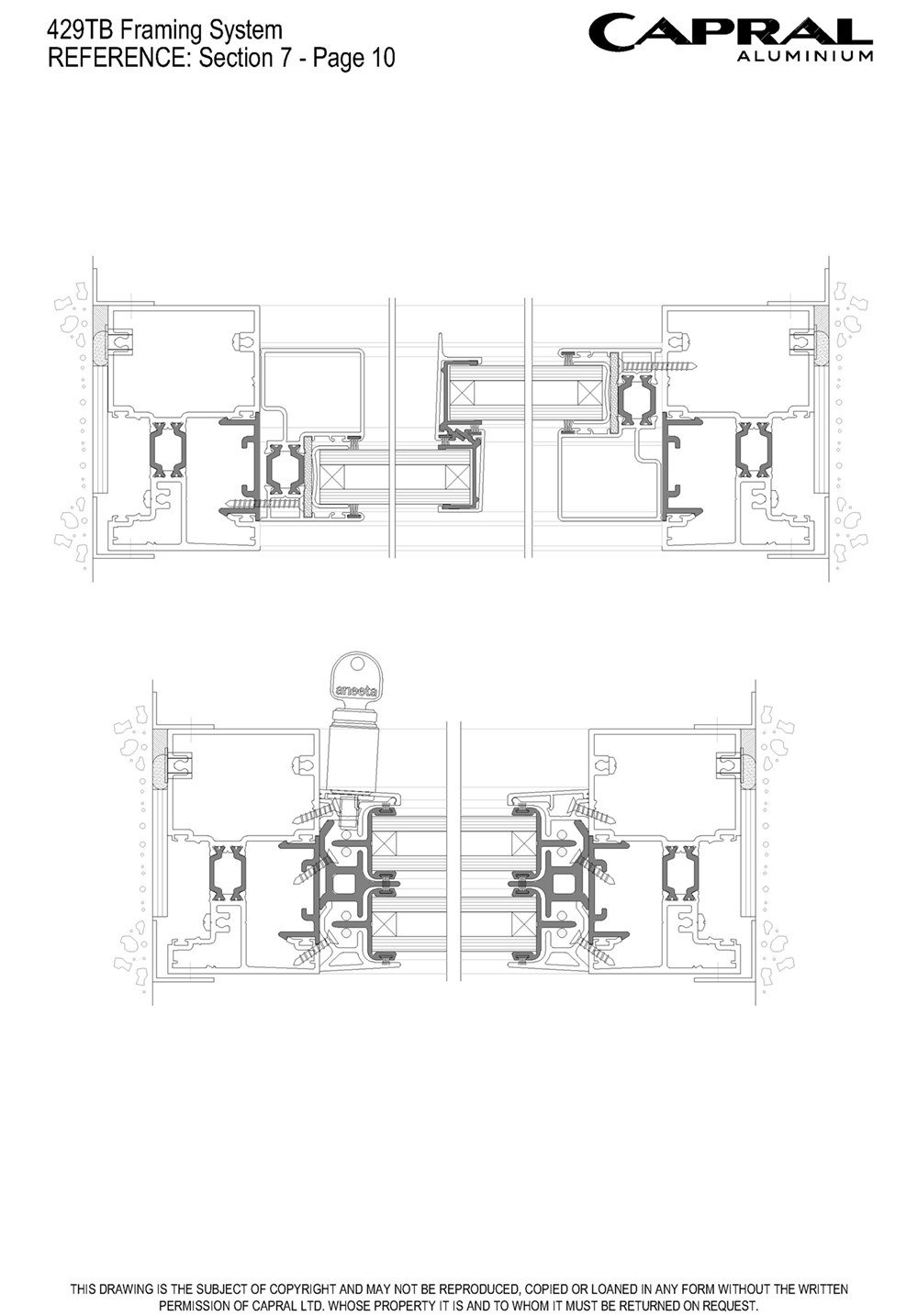

CAD Files Futureline 429TB Framing System

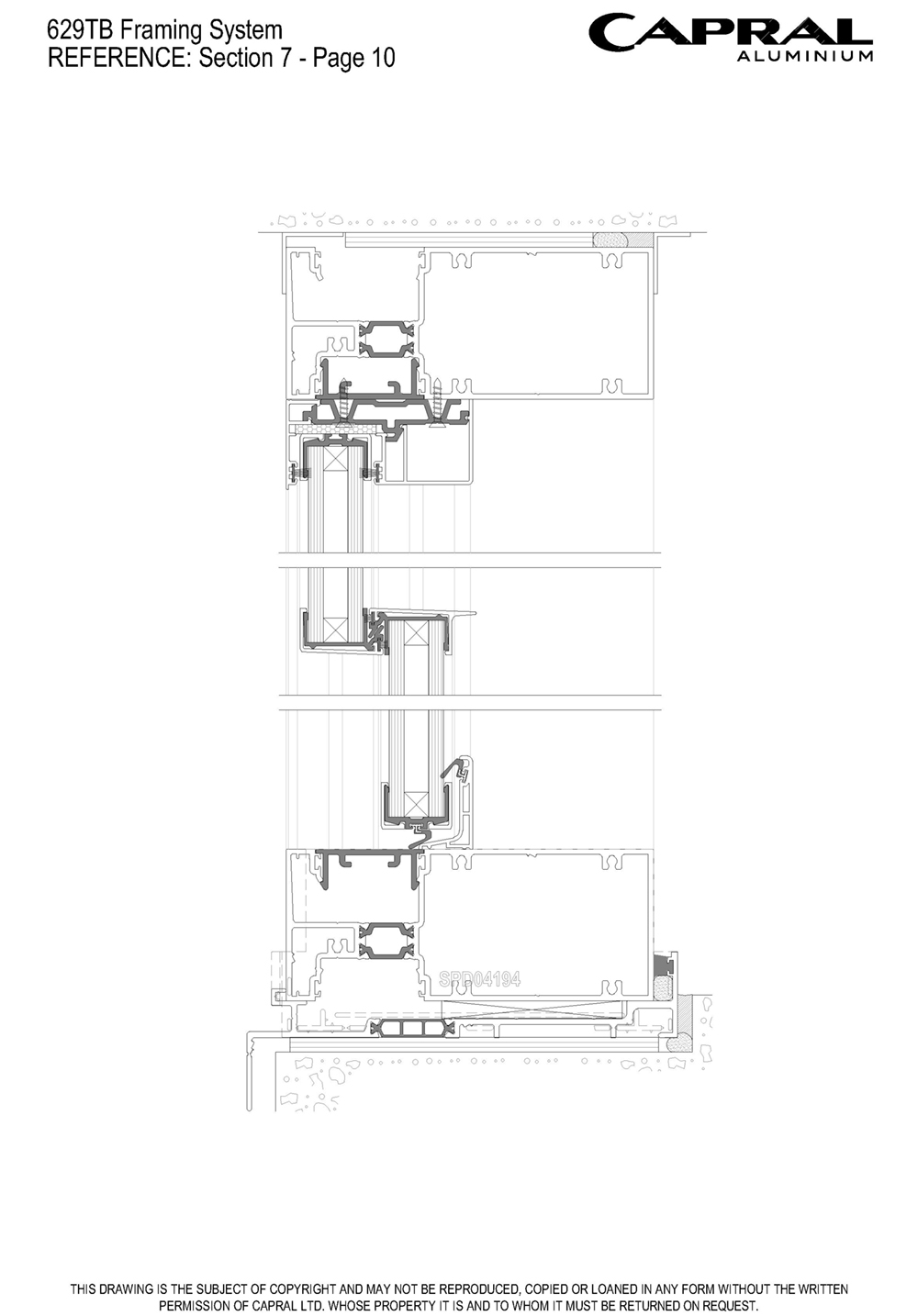

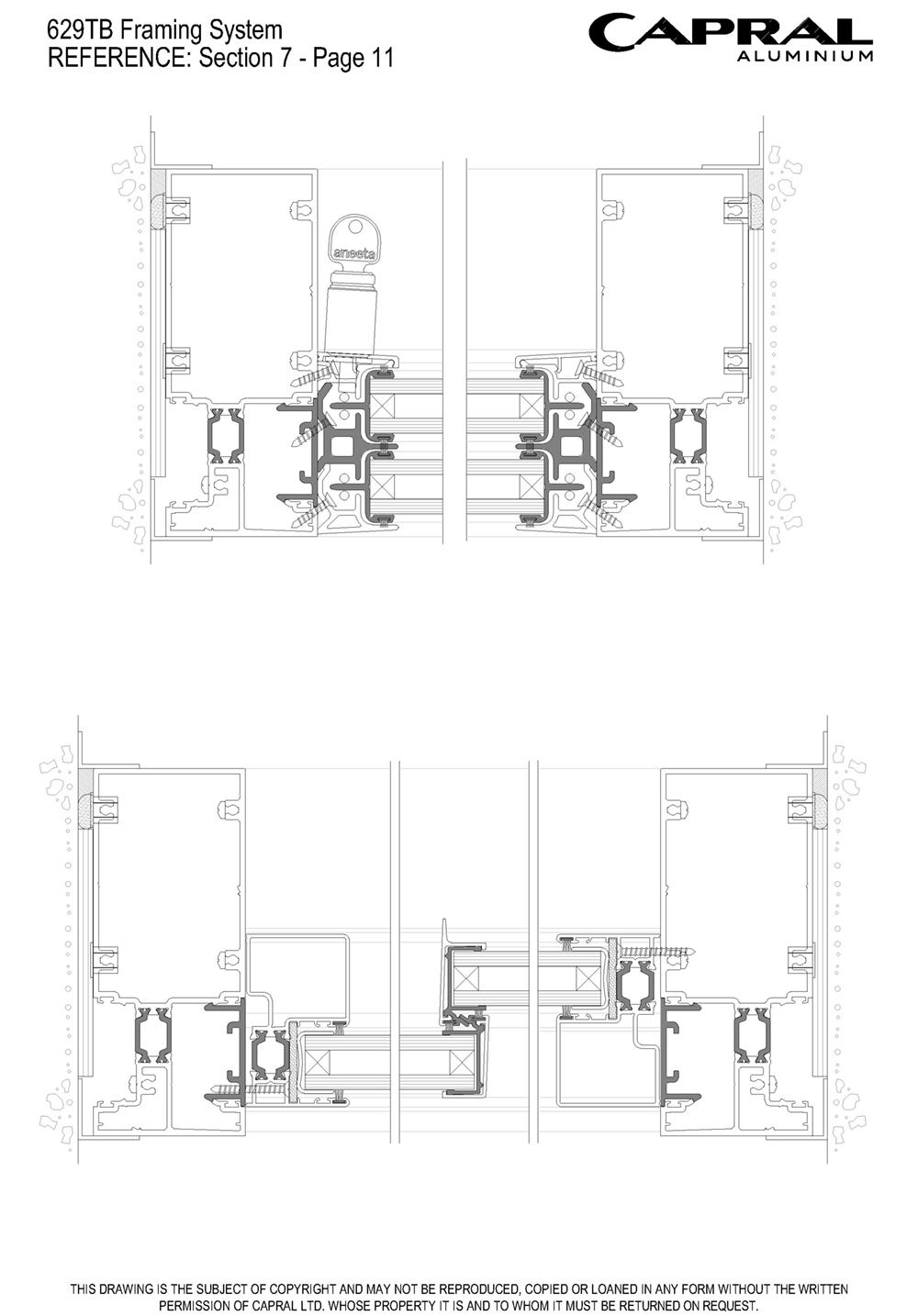

CAD Files Futureline 629TB Framing System
CAD Files Futureline Sub Frames & Adapors
Other
Environmental Protection Declaration (EPDs)
Compatible Products
Futureline 425TB Centre Glazed Framing System (100mm)The Capral Futureline 425TB centre glazed framing system incorporates the glazing capacity to accommodate high performance double glazed units up to 34mm while retaining crisp, clean profiles typically associated with the commercial glazing system.
Futureline 429TB Front Glazed Framing System (100mm)The Capral Futureline 429TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline 629TB Front Glazed Framing System (150mm)The Capral Futureline 629TB framing system incorporates the glazing capacity to accommodate high-performance double-glazed units up to 34mm while retaining the crisp, clean profiles typically associated with commercial glazing systems.
Futureline 1029TB Front Glazed Framing System (250mm)Thermally-broken double-glazed aluminium framing combining both high performance and the sleek, precise profile of a commercial system.
