Lumière Wardrobe
Designed to complement modern home designs, the Lumière Wardrobe system delivers a subtle, slimline solution for built-in wardrobe installations.
Key features
- Door panel can be glazed and assembled around a plasterboard panel or have a mirror applied to the outside surface to create a semi-frameless appearance
- Purpose designed guide/bumper component aligns door panel within the head track
- Head and sill end cap components have been designed to neatly finish of the installed system. Exposed components can be colour matched to various finishes
- Finger pull detail has been designed into the panel stile extrusion
- Bumper strips cushion the panel upon closing
- Frame joint assembly is simple using single screw fixings and a concealed inside cover bumper of the wardrobe stiles
- Door system accommodates glass, mirror, MDF, vinyl-coated plasterboard and laminated panels
- Adjustable rollers cater for out of level installations
Lumière offers flexibility to choose from the standard frame and panel designs, frameless mirror doors and optional mid-rails that can add strength or achieve a unique aesthetic. The minimal frame design makes this range particularly suitable for Euro-style laundries where space is of the essence. Incorporating a unique sill and roller design, the Lumière Wardrobe delivers ultra-smooth gliding panels for effortless operation.
Download BrochureDetails
Product Specs

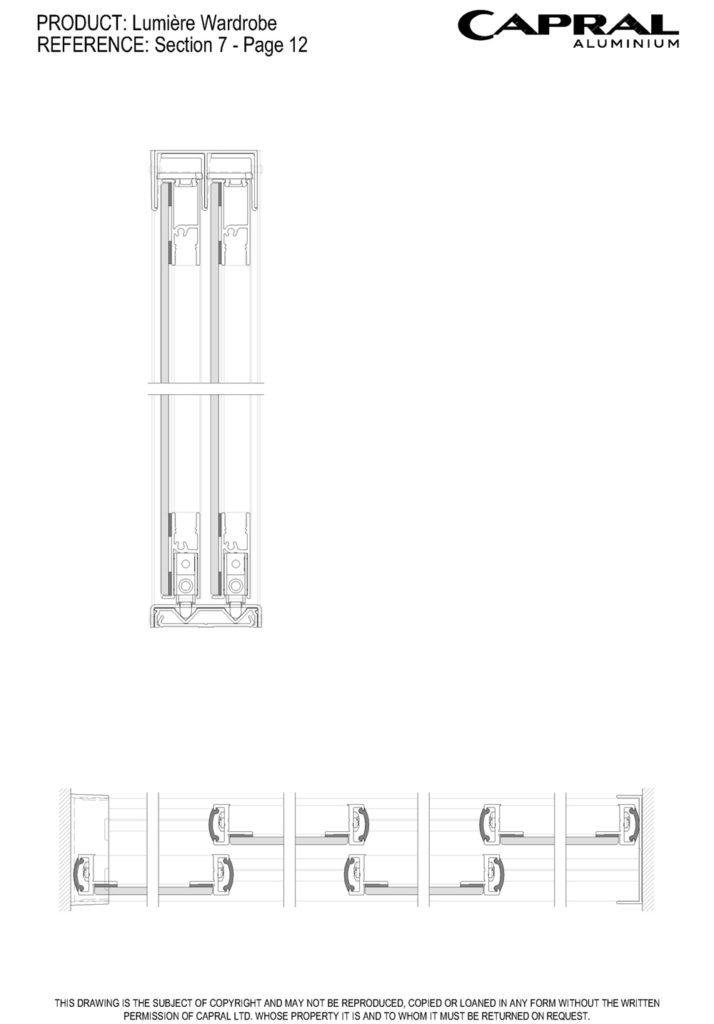

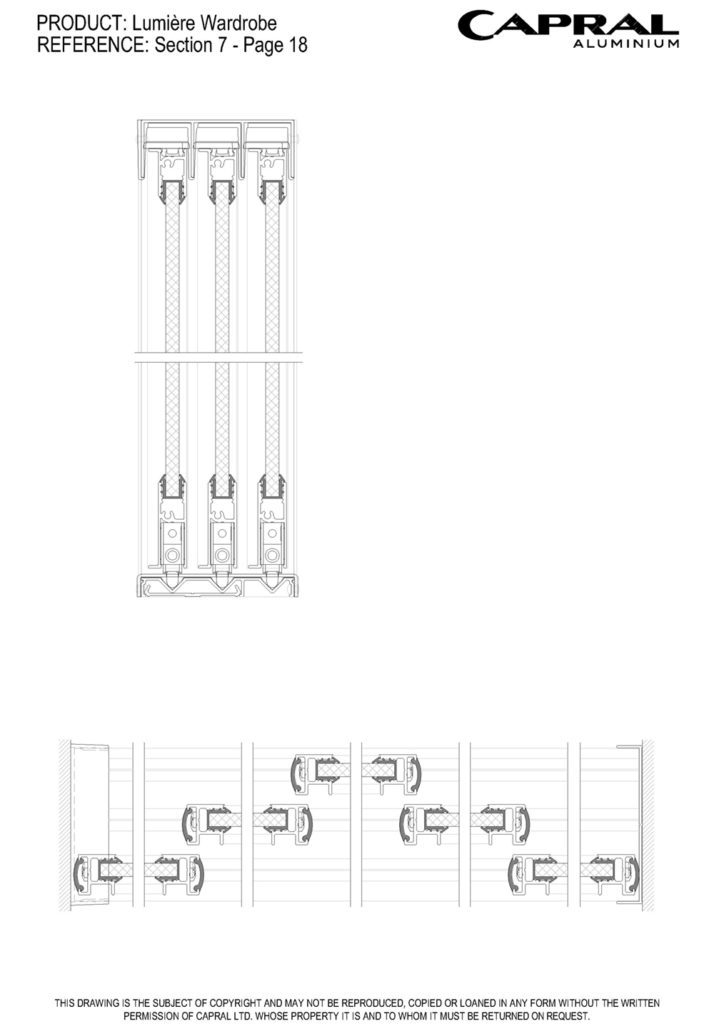

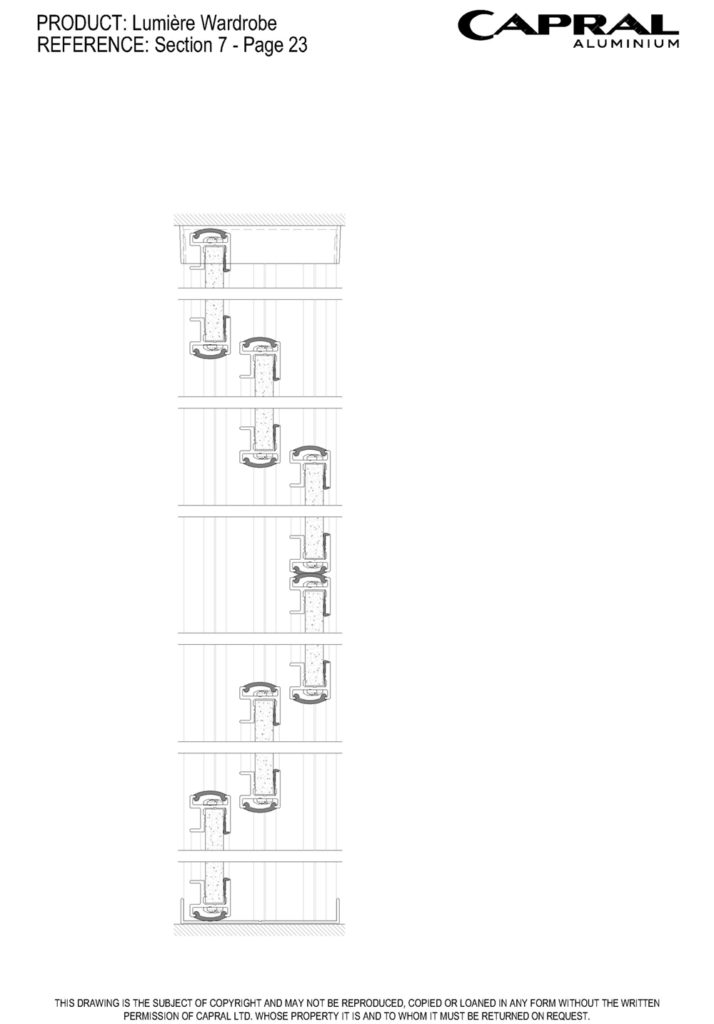

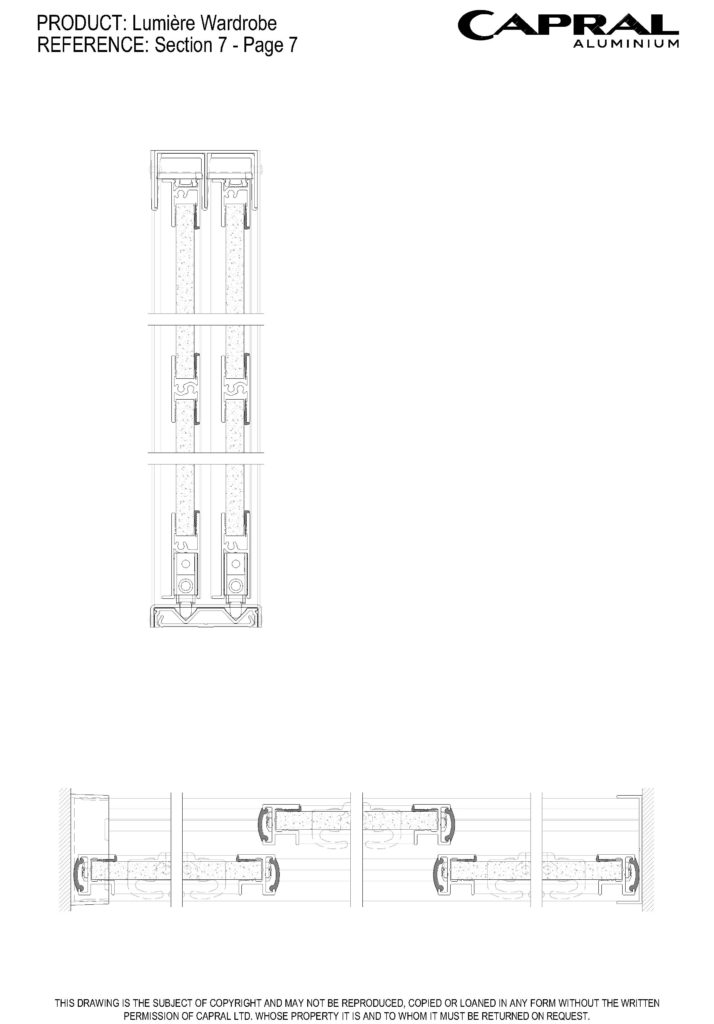

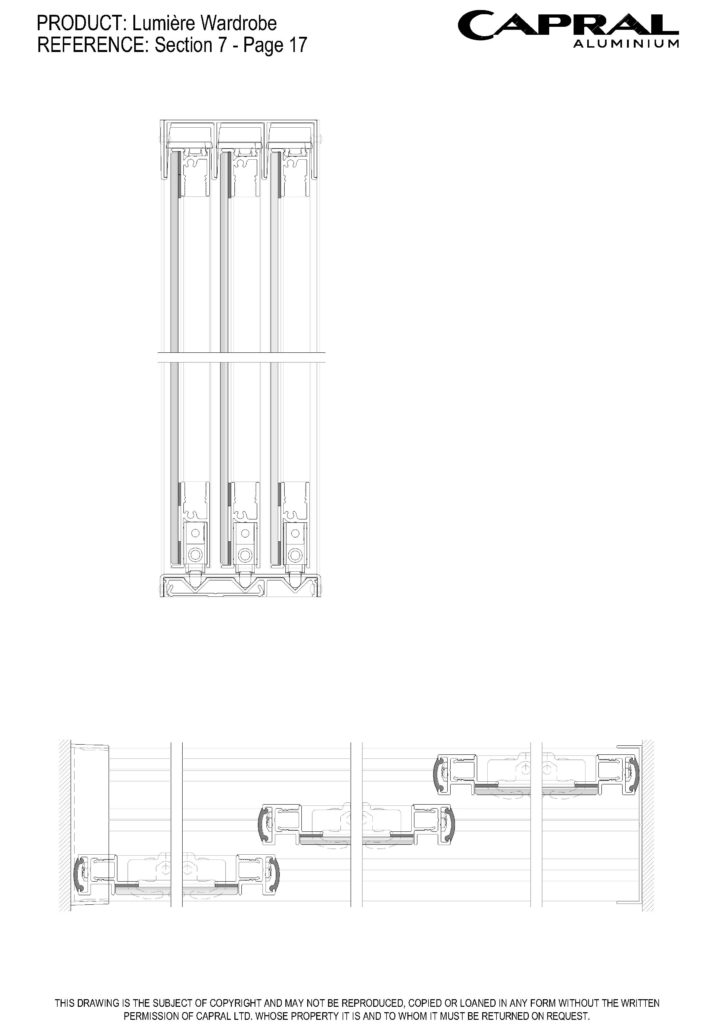

Configurations

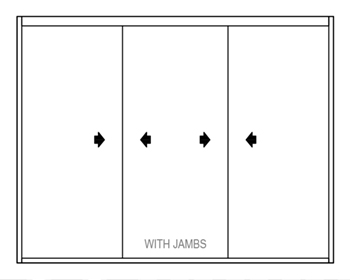

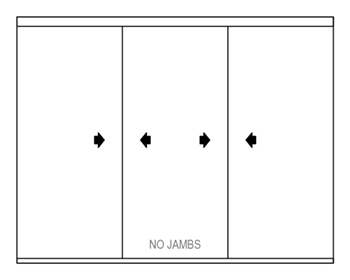

Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
1200
Panel Weight (kg)
50
For panel heights over 2400mm, use of a Midrail extrusion may be required
Frame Dimensions (mm)

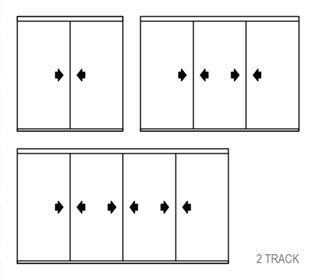

Double Track
54

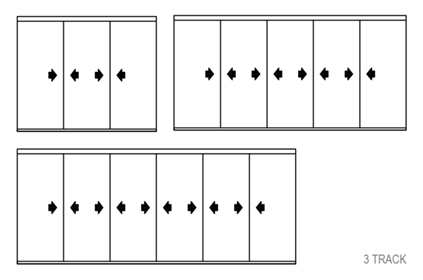

Triple track
80
Glazing Details
Single Glazed
4 - 9
Also accepts 6, 7.5 & 9.5mm Plasterboard
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Lumière Wardrobe
CAD Files
CAD Files Lumière Wardrobe
Bulletins
PB345 - Lumière Wardrobe Release
Other
Environmental Protection Declaration (EPDs)
