SGS Commercial 400 Narrowline Single Glazed (100mm) (QLD Only)

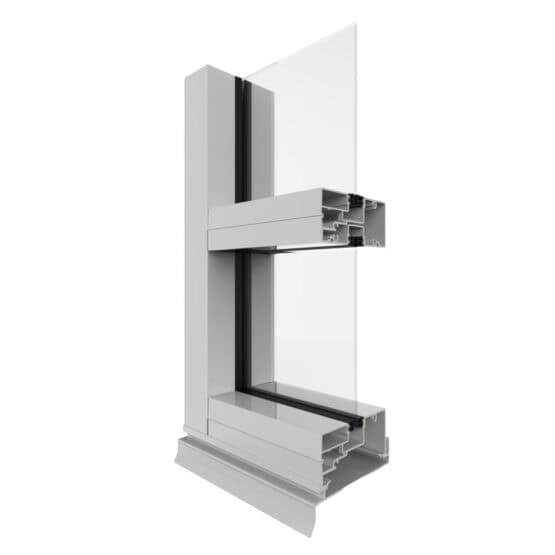

The SGS 400 Narrowline framing system redefines the standard for centre-glazed framing.
Certified
Key features
- 100mm x 45mm or 100mm x 50mm centre glazed framing system
- Generous single glazing capacity, accepting glass thickness up to 13mm
- Patented Click2Fit colour-coded, captive, and roll-in wedge options for simple and easy glazing

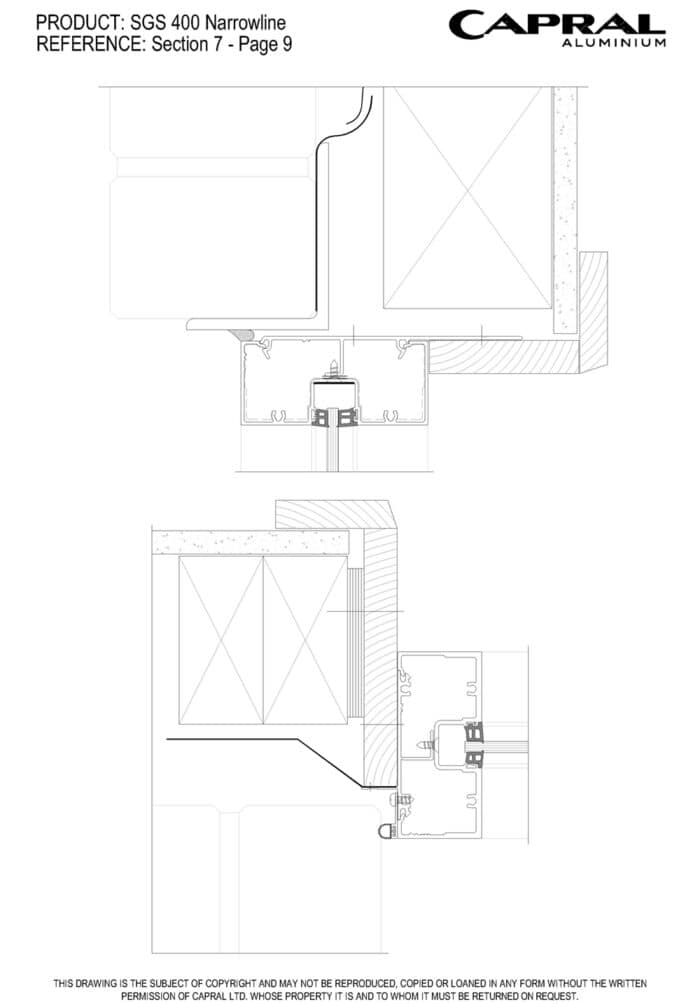

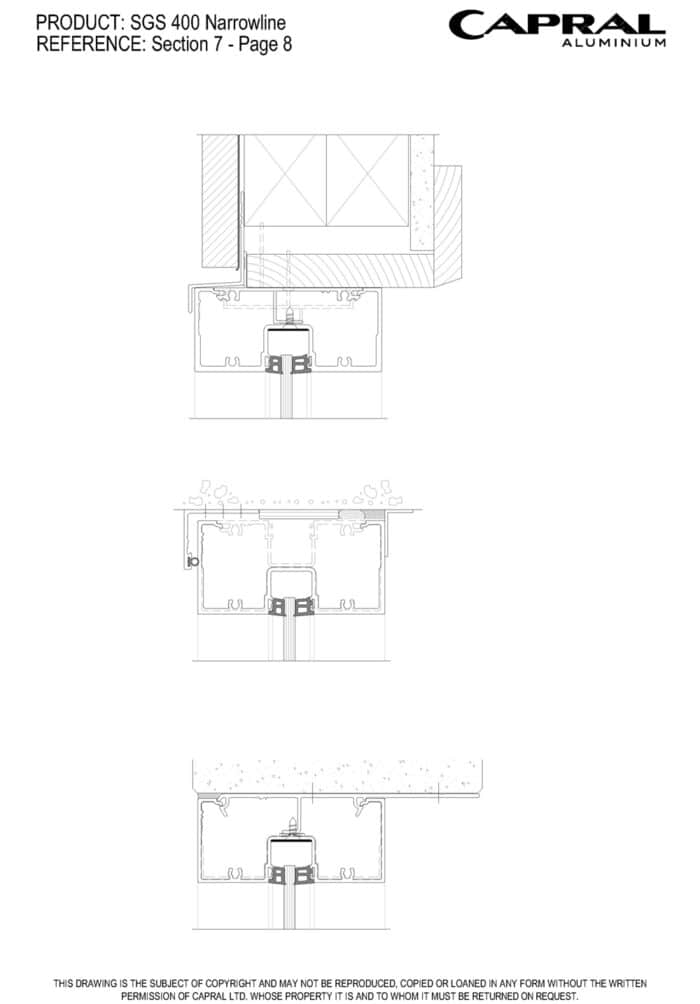

- Can be used in all Capral standard subframes

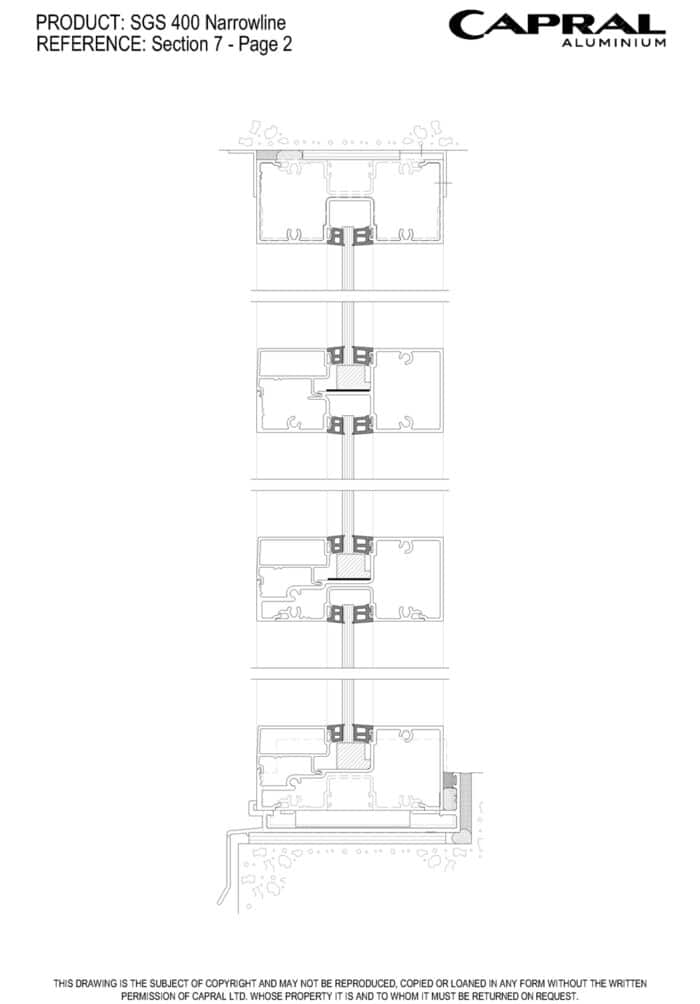

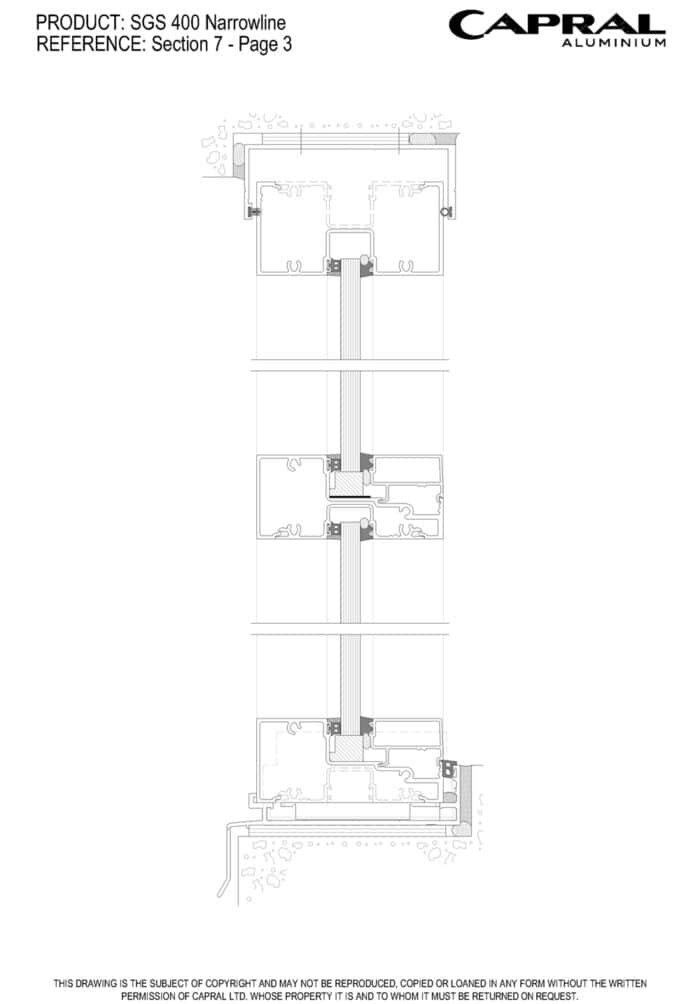

- Internal and externally beaded sill and transom options

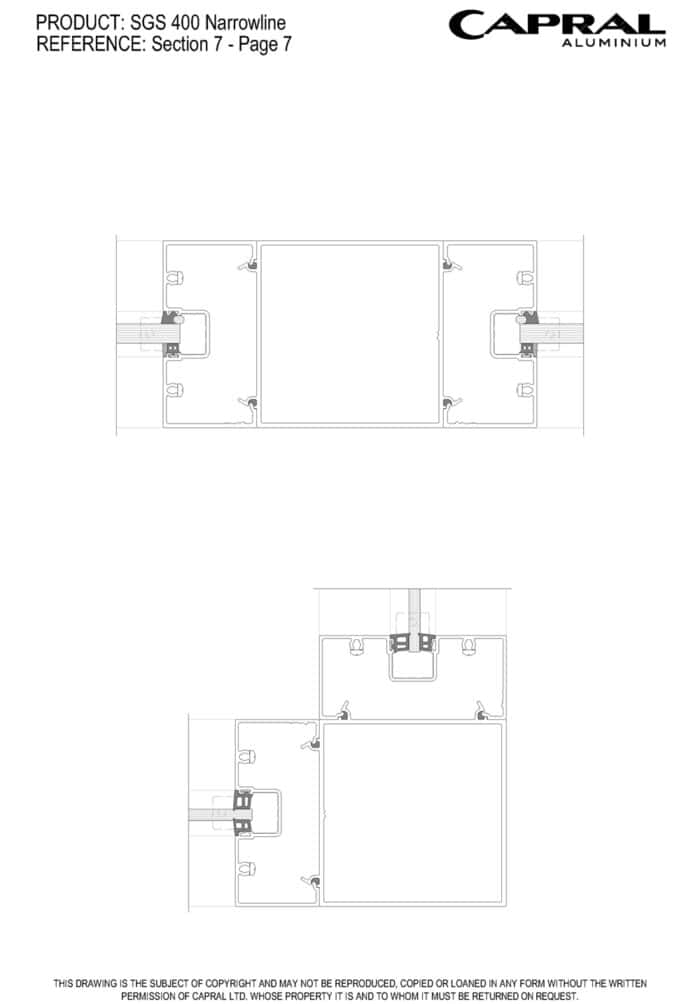

- Dedicated corner posts
- Compatible with SGS 225 Hinged Door

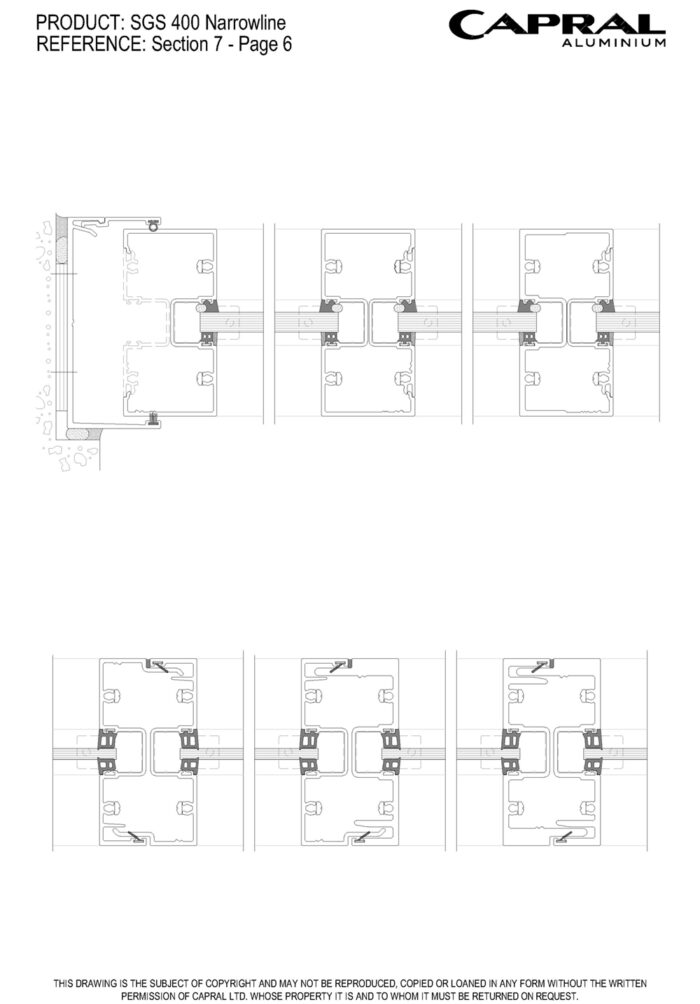

- Flexible design with a wide range of mullion strengths to suit project requirements
- Full compliment of at-size AS2047 test reports to support the use of the SGS 400 throughout Australia.
The SGS 400 Narrowline framing system redefines the standard for centre-glazed framing. Designed for versatility, it includes a wide range of mullion, transom, and glazing options to make integration into projects a breeze.
The SGS 400 Narrowline series offers sleek lines and is compatible with the the SGS 225 Hinged Door for consistent aesthetics and performance across a project.
Note: This product is currently only available in Queensland. Enquire for more information.
Download BrochureDetails
Product Specs
Configurations

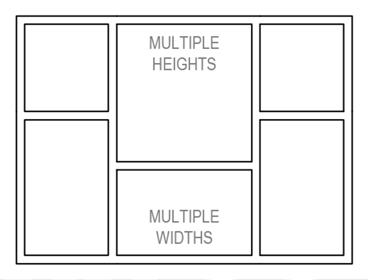

Arrangements
Maximum Product Sizes
Panel Height (mm)
3500
Panel Width (mm)
2200

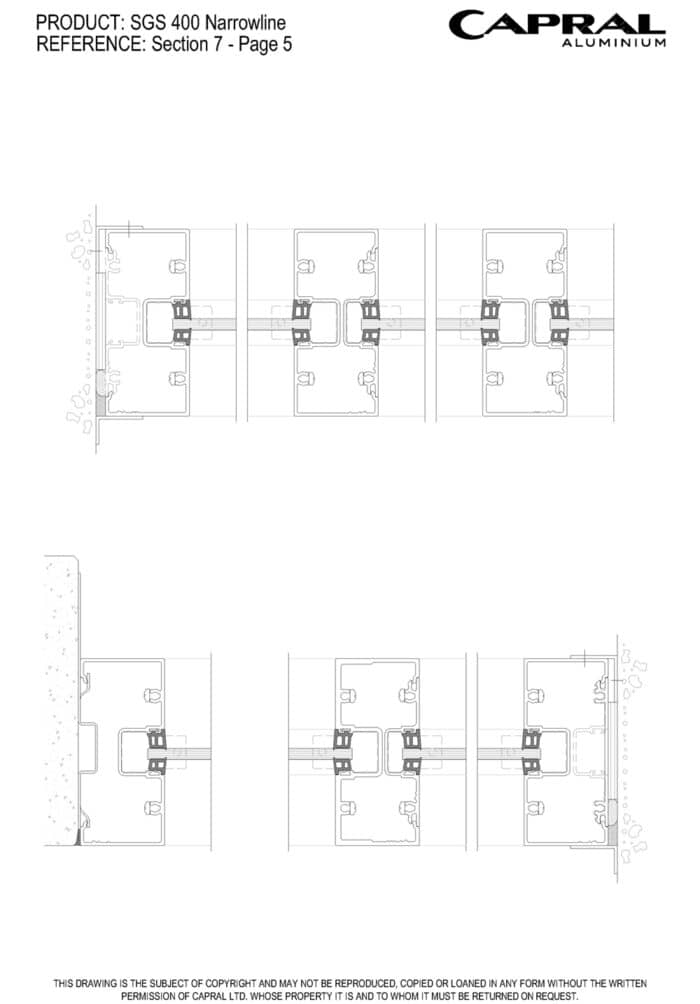

Frame Dimensions (mm)
Frame depth (mm)
100
Face Width (mm)
45 & 50
Acoustic Rating
Rw (C;Ctr)
37 (0;-3)*
* Acoustic opinion derived from AGS 400 Narrowline
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
9010
WATER (Pa)
1200
Glazing Details
Single Glazed
4 - 12
Energy Performance
Uw Range
4.10 - 6.00
SHGC Range
0.53 - 0.75
Tvw Range
0.38 - 0.80
Air infiltration
0.04 - 0.04
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual SGS 400 Narrowline
Technical Manual AGS Sub Frames
Technical Manual Futureline Sub Framing
Wall Charts
Extrusion Wall Chart AGS Speciality Sub Frames
Extrusion Wall Chart AGS Sub Framing
CAD Files
CAD Files SGS 400 Narrowline
CAD Files AGS Sub Frames
CAD Files Futureline Sub Frames & Adapors
CAD Wall Chart AGS Sub Framing
Bulletins
PBJ1010 - SGS 400 Narrowline Framing
Other
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
Compatible Products
AGS Commercial 480 Sliding Window (101.6mm)The AGS 480 Sliding Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems.
AGS Commercial 481 Double Hung WindowThe AGS 481 Double Hung window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400 Narrowline framing system.
AGS Commercial 482 Awning WindowThe 482 Awning Window incorporates the features and flexibility of a residential window system into the commercial grade AGS 400/425 Narrowline framing systems and 100mm Flushline framing systems.
AGS Commercial 488 Tilt-and-Turn WindowThe AGS Tilt & Turn window is flexible in form and function and compatible with our AGS Narrowline range of commercial framing products.
Artisan 996 Folding DoorThe Artisan aluminium folding door incorporates a technologically advanced folding door system that surpasses that of ordinary aluminium folding doors.
Artisan 996 Quik Folding DoorThe Artisan Architectural Quik Folding Door has smooth top rolling panels and allows for convenient use of floor space - open wide for uninhibited access when entertaining and close for protection from the elements.
AGS Commercial 35 Hook Hinge Awning SashThis AGS Commercial Awning Window with Hook Hinge is an operable window sash available for use with AGS commercial framing.
AGS Commercial 50 Awning SashThe AGS 50 Series window is a high-performance commercial awning window compatible with AGS framing.
AGS Commercial 35 Awning SashThis AGS Commercial Awning Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 35 Casement SashThis AGS Commercial Casement Window is an operable window sash available for use with AGS commercial framing.
AGS Commercial 50 Casement SashThe AGS 50 Series window is a high-performance commercial casement window compatible with AGS framing.
Extruded LouvreAn extensive range of extruded louvre blades are available from Capral to cater for various ventilation, shading and aesthetic requirements
