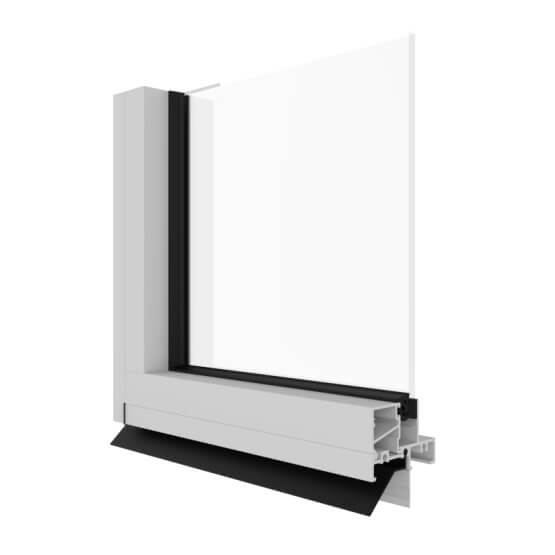

Urban Fixed Light Window
The Urban Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of Urban operable windows and doors.
Certified
Rated
Tested
Key features
- Minimal frame design
- Single and double-glazing options
- Render frame options

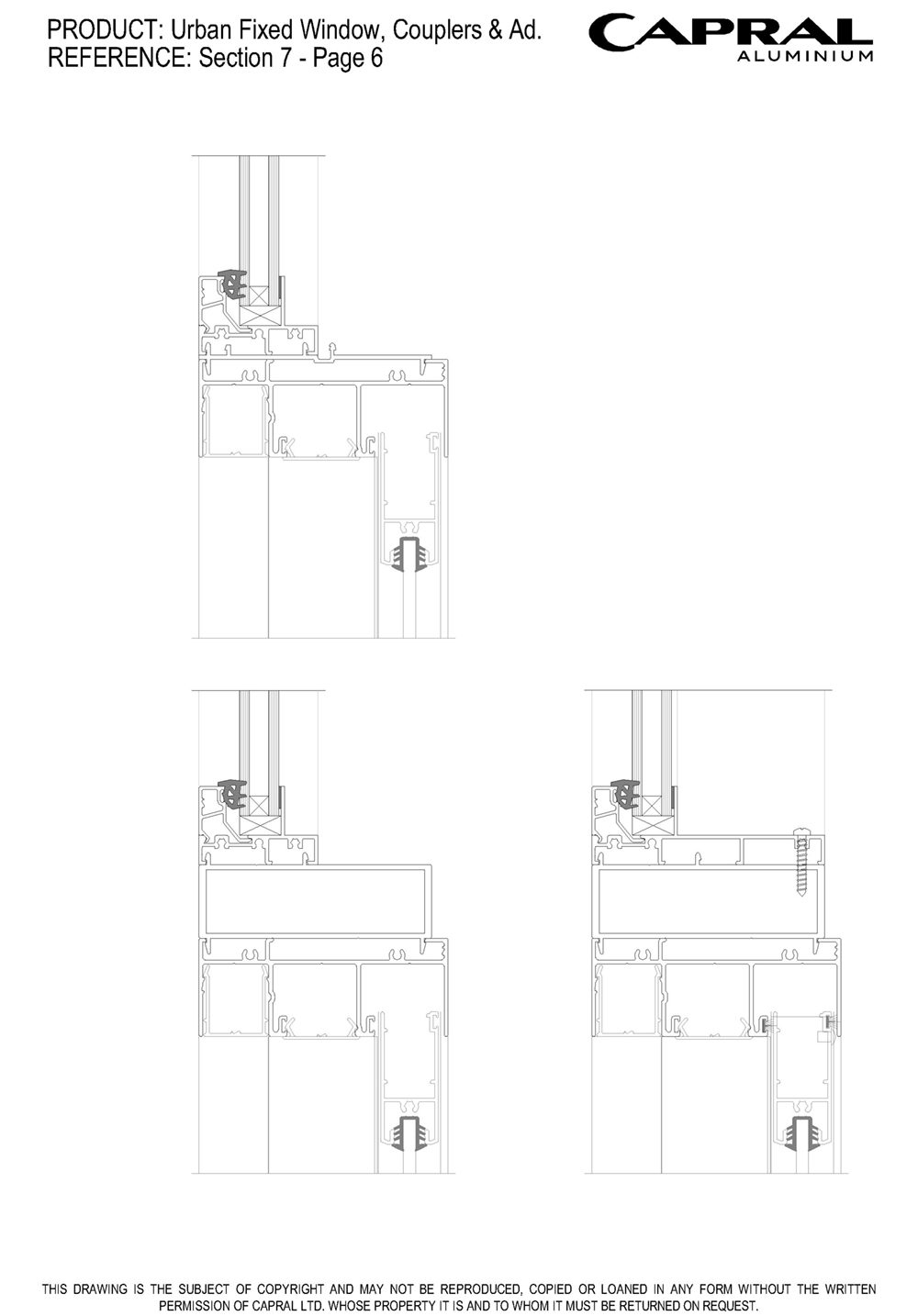

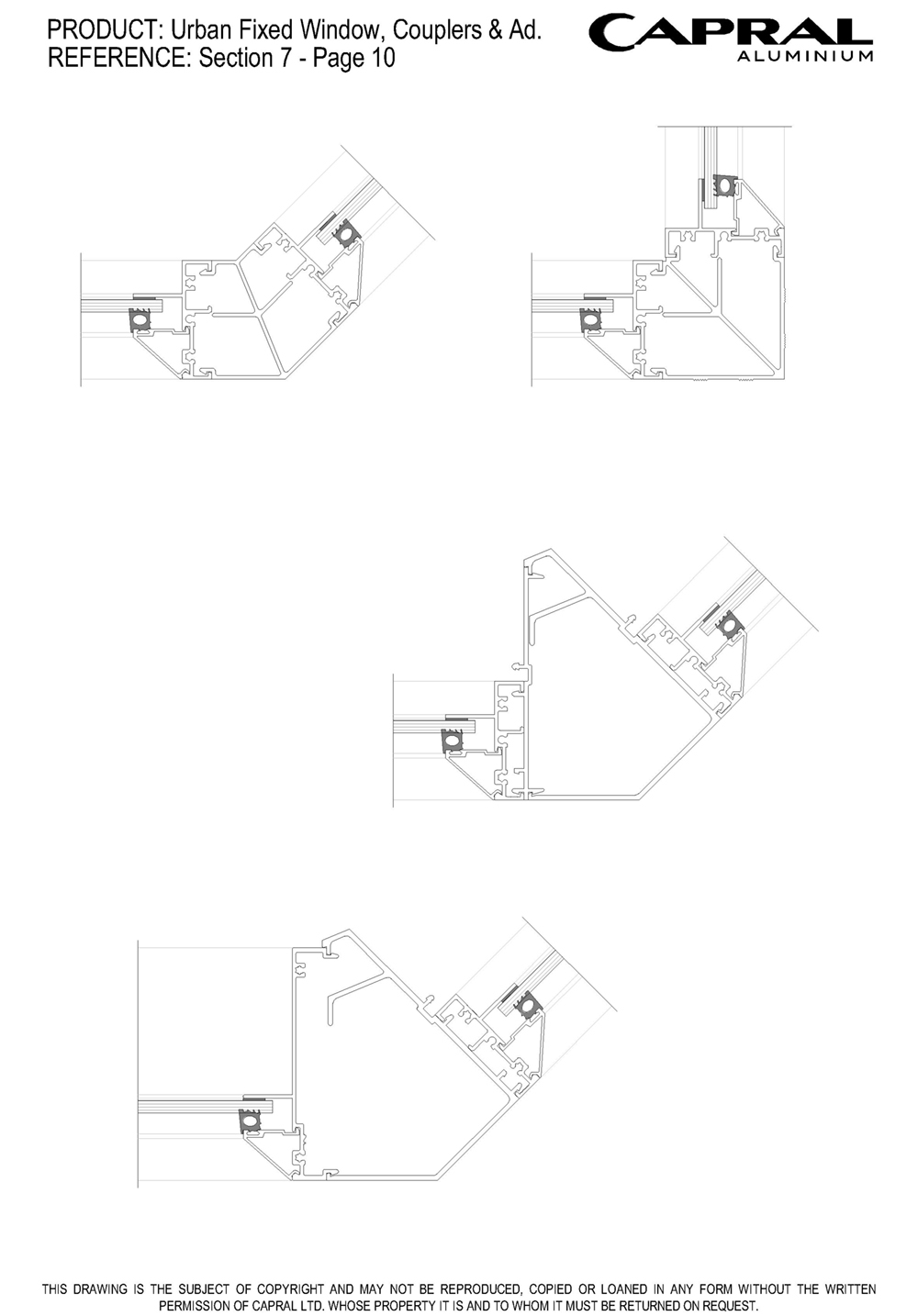

- Range of couplers available for large fixed lights
- Bushfire and Acoustic ratings
- Compatible with other Urban products

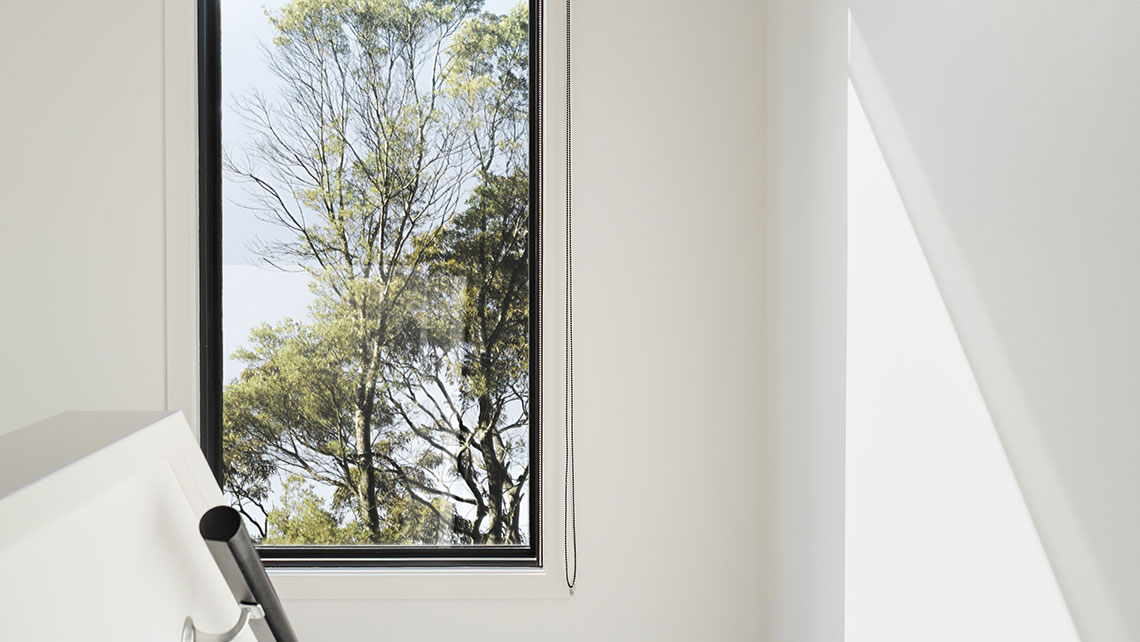

The Urban Fixed Light Window provides a clean and streamlined appearance to complement the range of Urban operable windows and doors.
Fixed light windows can be coupled to all windows within the Urban range or used independently where openings are not required. Frame the perfect view, maximise natural light and enjoy the great outdoors with an Urban fixed light window expanding your view.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
2700
Panel Area (m2)
4.0
Limitations for a single fixed light shown. When used as part of a combination window, each fixed light is limited to 2400h and 1500w with a maximum area of 2.88m2
Frame Dimensions (mm)
Standard
48.5
Wide
95
Acoustic Rating
Rw (C;Ctr)
31 (-1;-1)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
8000
WATER (Pa)
450
Glazing Details
Single Glazed
3 - 6
Double Glazed
16 - 25
Thick Glazed
10 - 14
Energy Performance
Uw Range
3.07 - 5.90
SHGC Range
0.22 - 0.73
Tvw Range
0.08 - 0.80
Air infiltration
0.01 - 0.01
