Urban 281 Double Hung Window
The Urban Double Hung Window delivers a clean appearance that blends effortlessly with various architectural styles. Ideal for use in residential building applications.
Certified
Rated
Tested
Key features
- Neat, clean appearance
- Slimline profiles
- Custom lockable hardware options
- Continuous integrated finger pulls for ease of operation
- Restricted opening options

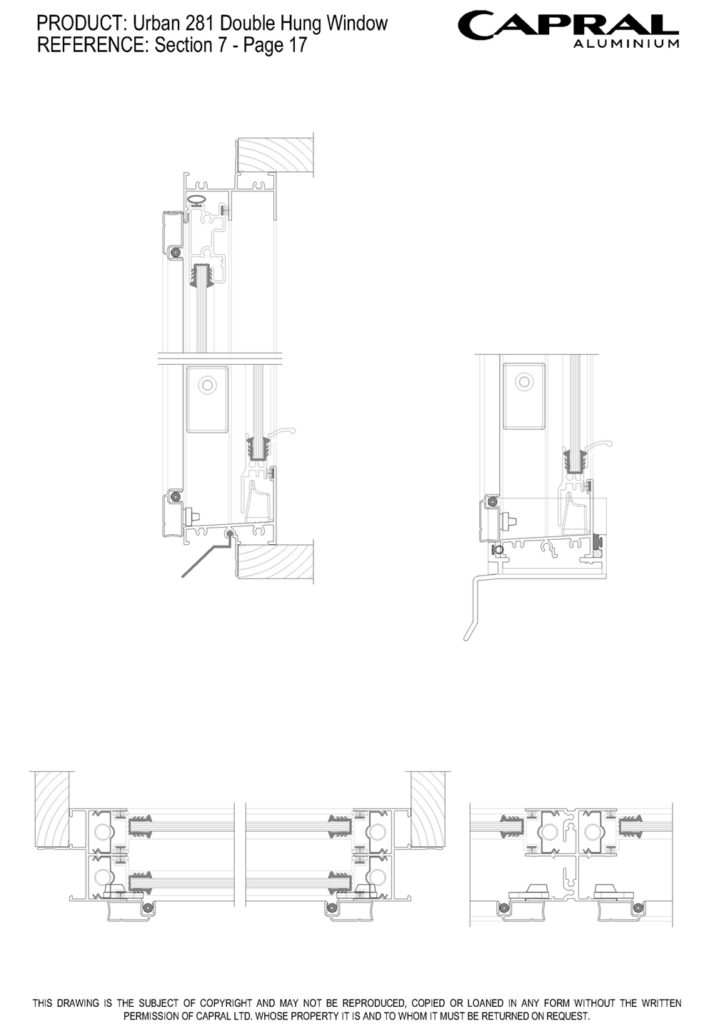

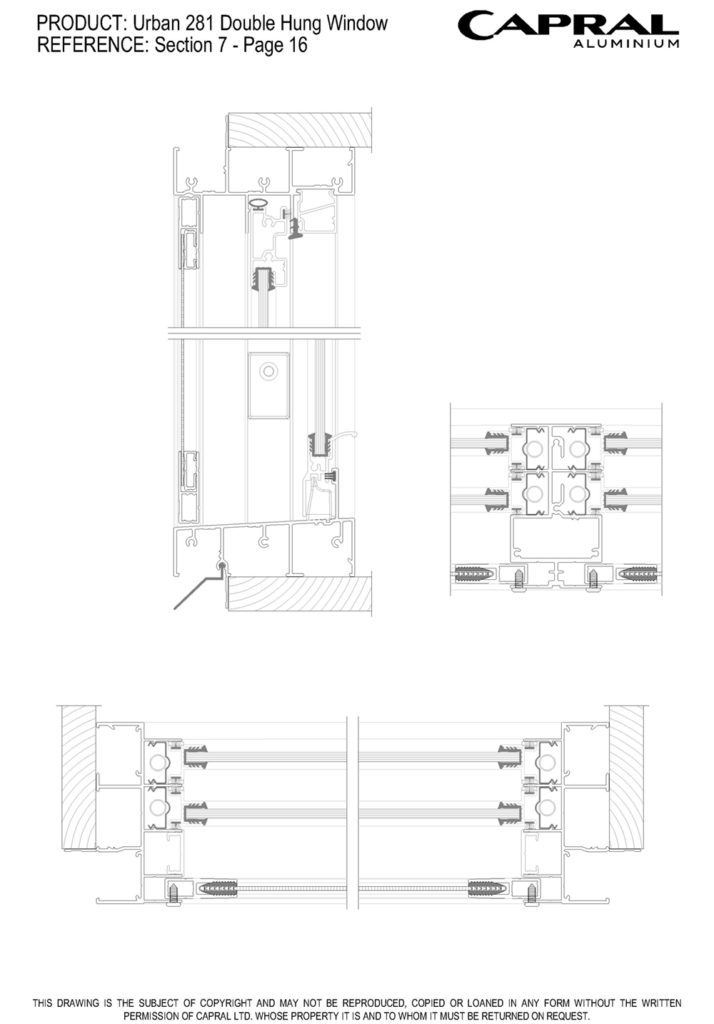

- Integrated insect and security screening options
- Single and double-glazed options
- Bushfire and Acoustic ratings
- Commercial perimeter frames available
- Compatible with Urban range
The Urban double hung window incorporates a popular full-width integrated finger pull on the upper and lower sashes for easy operation without interfering with curtains or other internal window treatments. Both standard and key-locking hardware options are available.
Being part of the Capral Urban residential range, it can be paired with a complementary selection of sliding, casement and awning windows and Urban sliding doors for a whole-of-house solution.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1200
Panel Width (mm)
1200
Panel Weight (kg)
22
Maximum Overall Height
2400
Maximum Overall Width
1200
Frame Dimensions (mm)
Narrow
48.5
Standard
95
Acoustic Rating
Rw (C;Ctr)
33 (-1;-1)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
7000
WATER (Pa)
300
Glazing Details
Single Glazed
4 - 10
Double Glazed
16 - 18
Energy Performance
Uw Range
4.14 - 6.27
SHGC Range
0.26 - 0.73
Tvw Range
0.13 - 0.76
Air infiltration
0.26 - 0.61
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Urban 281 Double Hung Window
Wall Charts
Extrusion Wall Chart Capral Screening
Extrusion Wall Chart Urban Windows
CAD Files
CAD Files Urban 281 Double Hung Window
CAD Files Capral Screening
CAD Wall Chart Urban Windows & Doors
Bulletins
PB435 - Urban 281 DH – Heavy-Duty Bottom Rail & End Caps
PB346 - New Urban Clip In Head Capping
PB298 - Universal Head Capping
