Residential

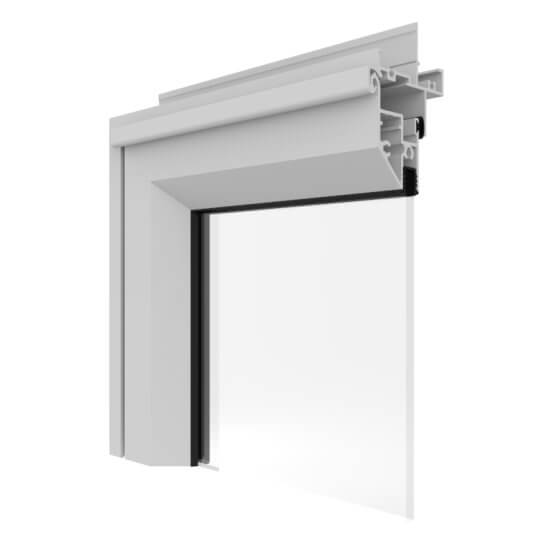

Urban 282 Awning Window
The Urban Awning Window offers a clean, streamlined appearance with modern bevelled sash and glazing beads. Ideal for use in residential building projects.
Certified
Rated
Tested
Key features
- Neat, clean appearance
- Channel and beaded sash options
- Single and double-glazing options
- Lockable hardware options
- Positive sealing for improved weather performance

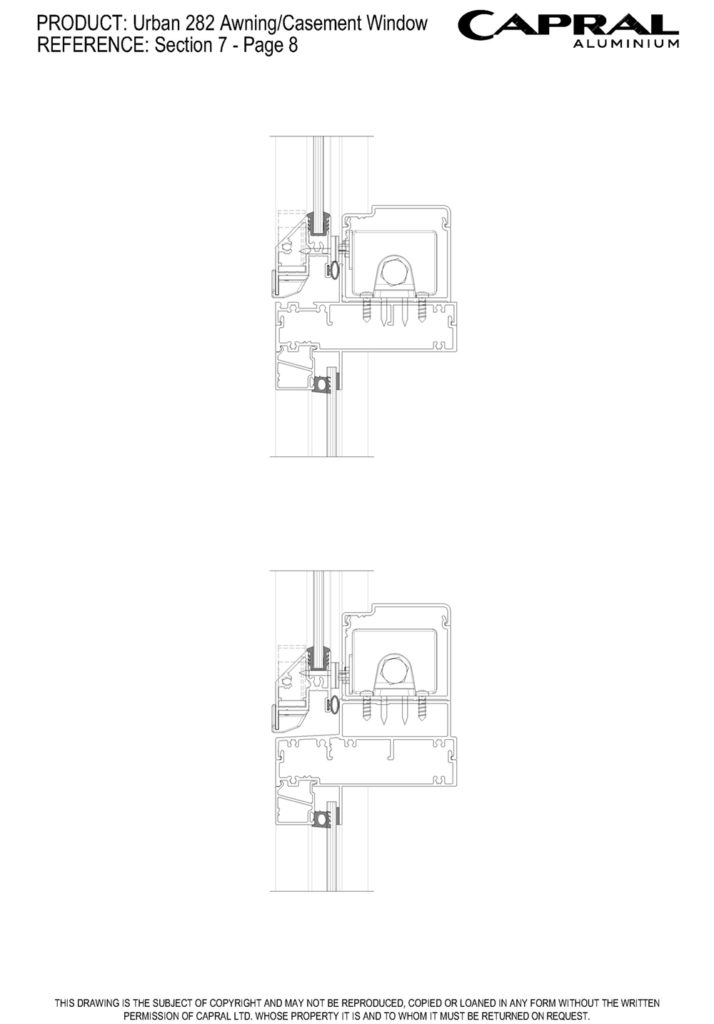

- Single, twin and electric winders are available
- Restricted opening possible

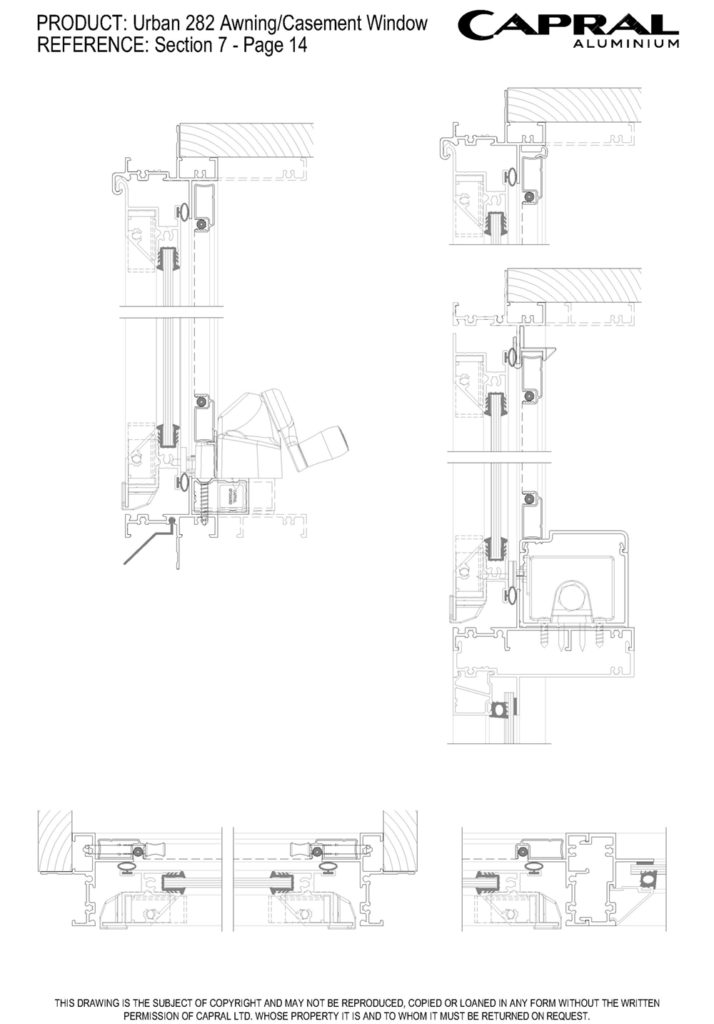

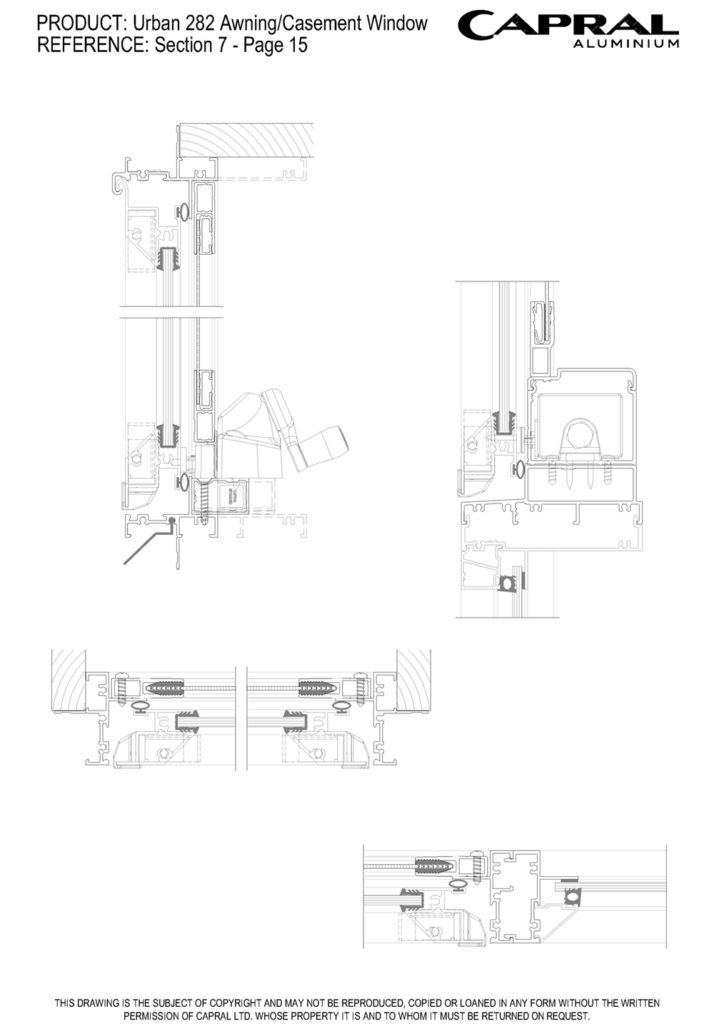

- Integrated insect and security screening options
- Commercial perimeter frame available
- Compatible with Urban products
- Standard and tall sash options

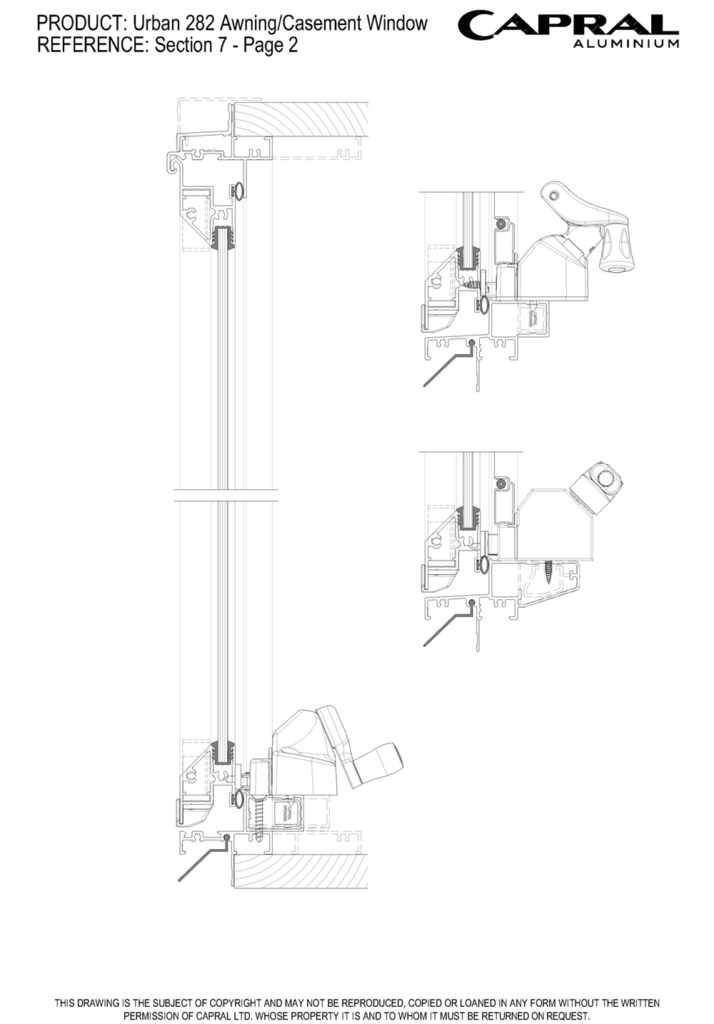

The Urban Awning Window features a continuous hook hinge system and options of either a chain winder or sash catches for ease of operation.
Full perimeter sash seals are designed to improve weather tightness. The system accepts various glazing options, including double glazing, for improved thermal comfort and performance. This window offers a simple, stylish design that is economical and well-suited to homes and residential building projects.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1800
Panel Width (mm)
1800
Panel Weight (kg)
60kg
Panel Area (m2)
1.82
Shown sizes are for integral hinged awning.
Frame Dimensions (mm)
Standard
48.5
Wide
95
Acoustic Rating
Rw (C;Ctr)
31 (-1,-2)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
2500
ULS (Pa)
3700
WATER (Pa)
800
Rw of 47 (-2;-5) can be achieved with this syetm when using secondary glazed configurations
Glazing Details
Single Glazed
3 - 10
Double Glazed
12 - 18
Energy Performance
Uw Range
3.19 - 6.49
SHGC Range
0.20 - 0.67
Tvw Range
0.06 - 0.67
Air infiltration
0.01 - 0.08
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Urban 282 Awning & Casement Window
Wall Charts
Extrusion Wall Chart Capral Screening
Extrusion Wall Chart Urban Windows
CAD Files
CAD Files Urban 282 Awning & Casement Window
CAD Files Capral Screening
CAD Wall Chart Urban Windows & Doors
Bulletins
PBJ1120 - Urban 282 Flat-Faced DG Sashes (Awning/Casement)
PB346 - New Urban Clip In Head Capping
PB320 - Urban 282 Awning Additions
PB298 - Universal Head Capping
PB268 - Urban Awning Update
Other
Capral Urban 282 Awning Casement Brochure
Specification Urban 282 Awning and Casement Window Capral
Capral Installation Details
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
