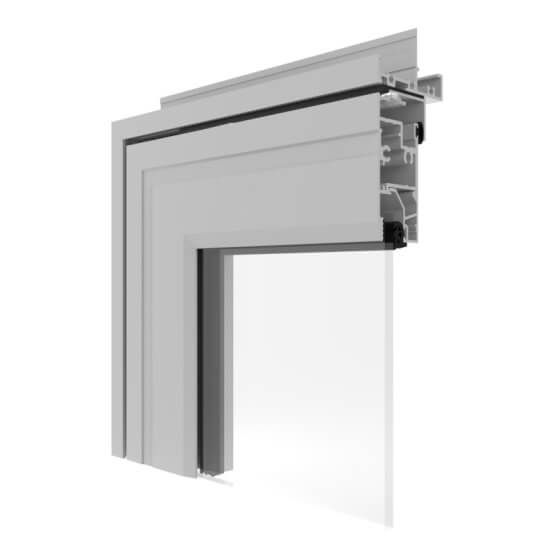

Urban 282 Casement Window
The Urban Casement Window offers a clean, streamlined appearance with modern bevelled sash and glazing beads. Ideal for use in residential building projects.
Certified
Rated
Tested
Key features
- Neat, clean appearance
- Channel and beaded sash options
- Single and double-glazing options
- Positive sealing for improved weather performance
- Restricted opening possible
- Lockable cam handles and friction stays
- Integrated insect and security screening options
- Commercial perimeter frame available
- Compatible with Urban products
- Standard and tall sash options
The Urban Casement Window incorporates friction stays and convenient cam handles for ease of operation.
Full perimeter sash seals are designed to improve weather tightness. The system accepts various glazing options, including double glazing, for improved thermal comfort and performance. This window offers a simple, stylish design that is economical and well-suited to homes and residential building projects.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1500
Panel Width (mm)
750
Panel Weight (kg)
40kg
Panel Area (m2)
1.2
Frame Dimensions (mm)
Frame depth (mm)
48.5
95mm wide perimeter frame available.
Acoustic Rating
Rw (C;Ctr)
30 (-1;1)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
2500
ULS (Pa)
3700
WATER (Pa)
800
Rw of 47 (-2;-5) can be achieved with this system when using secondary glazed configurations
Glazing Details
Single Glazed
3 - 10
Double Glazed
12 - 18
Energy Performance
Uw Range
3.19 - 6.49
SHGC Range
0.20 - 0.66
Tvw Range
0.06 - 0.67
Air infiltration
0.01 - 0.08
