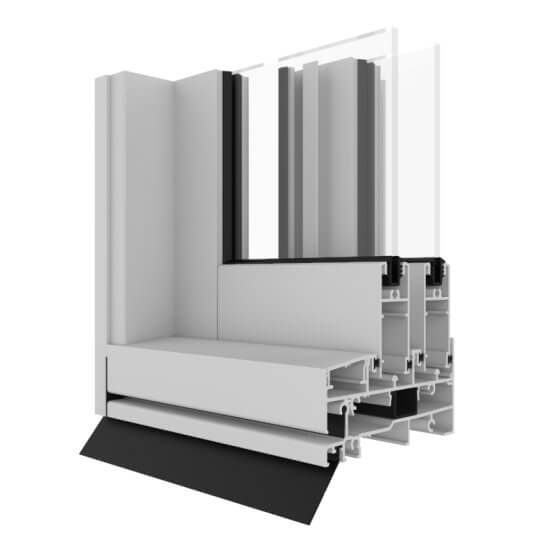

    Corner Capral Urban 284 Sliding Door
    Residential

    Urban 284 Sliding Door

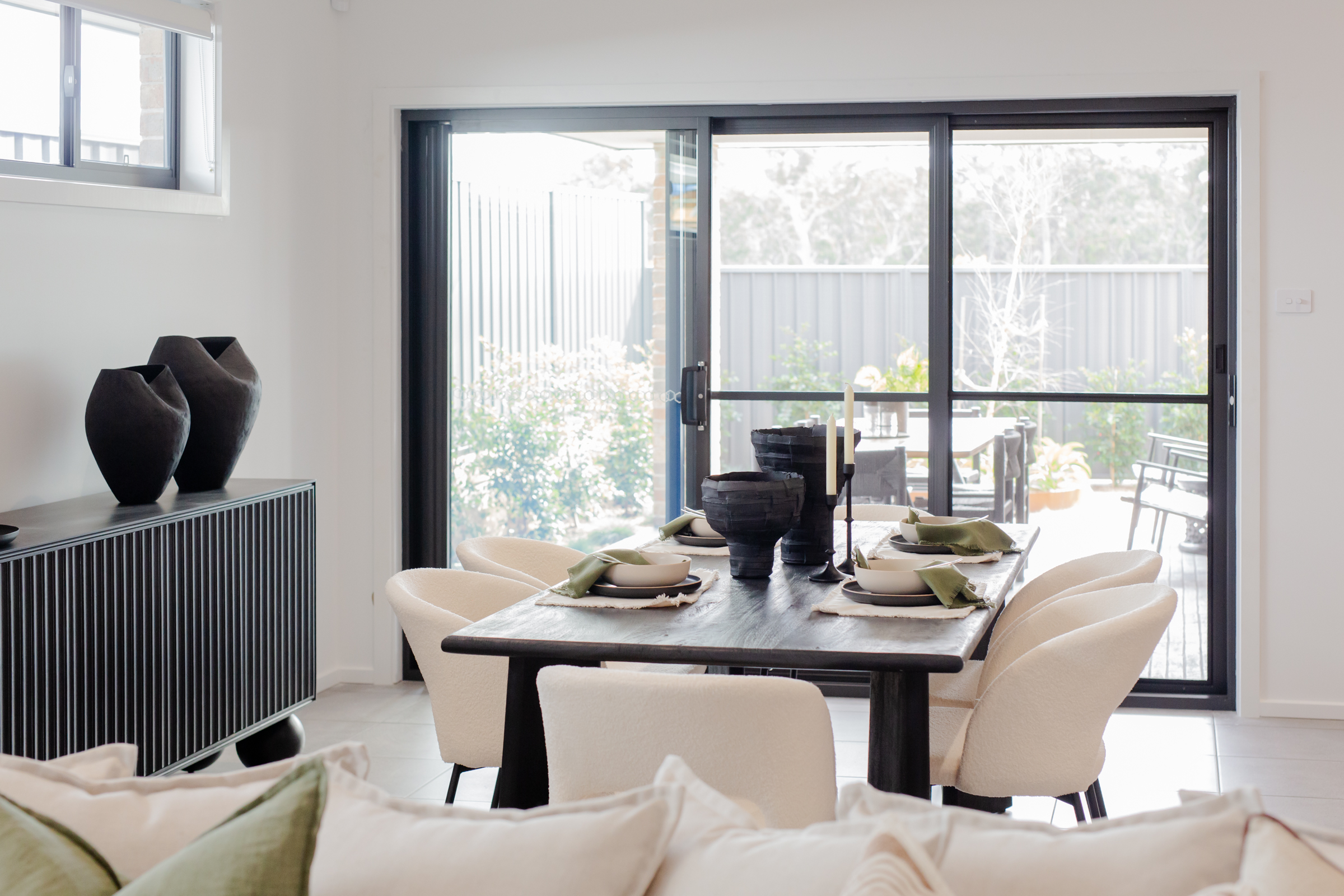

    The Urban Sliding/Stacking Door offers excellent design flexibility and is well suited to residential building applications. It is a perfect door to open homes to outdoor spaces.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    BAL 40
    Tested
    Disability
    Access

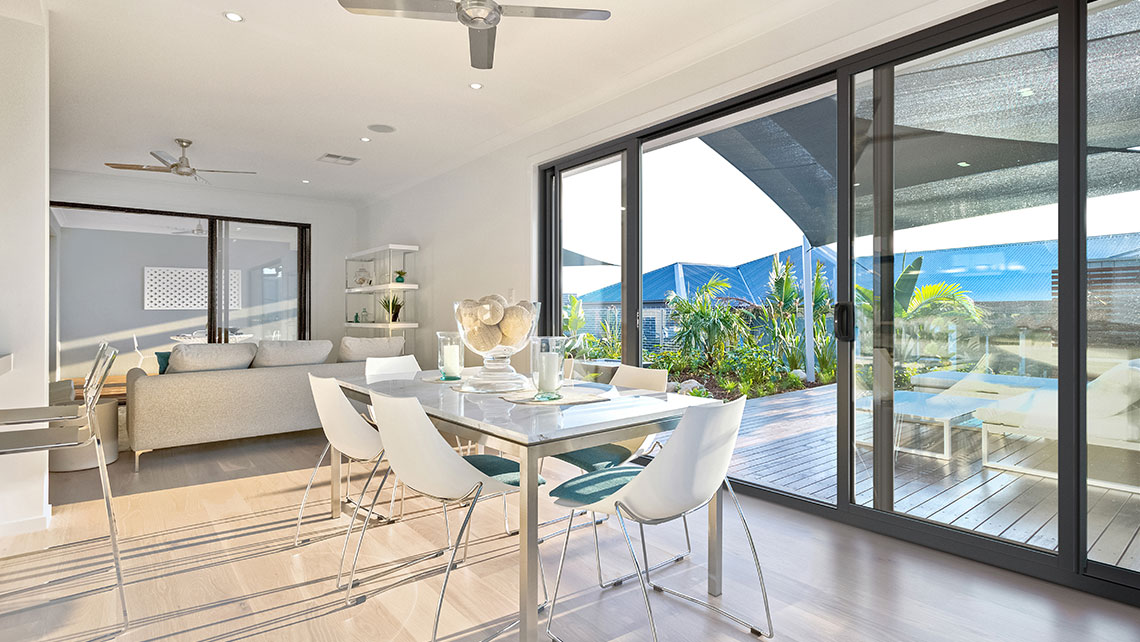

    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features
    • 101.6mm Framing System

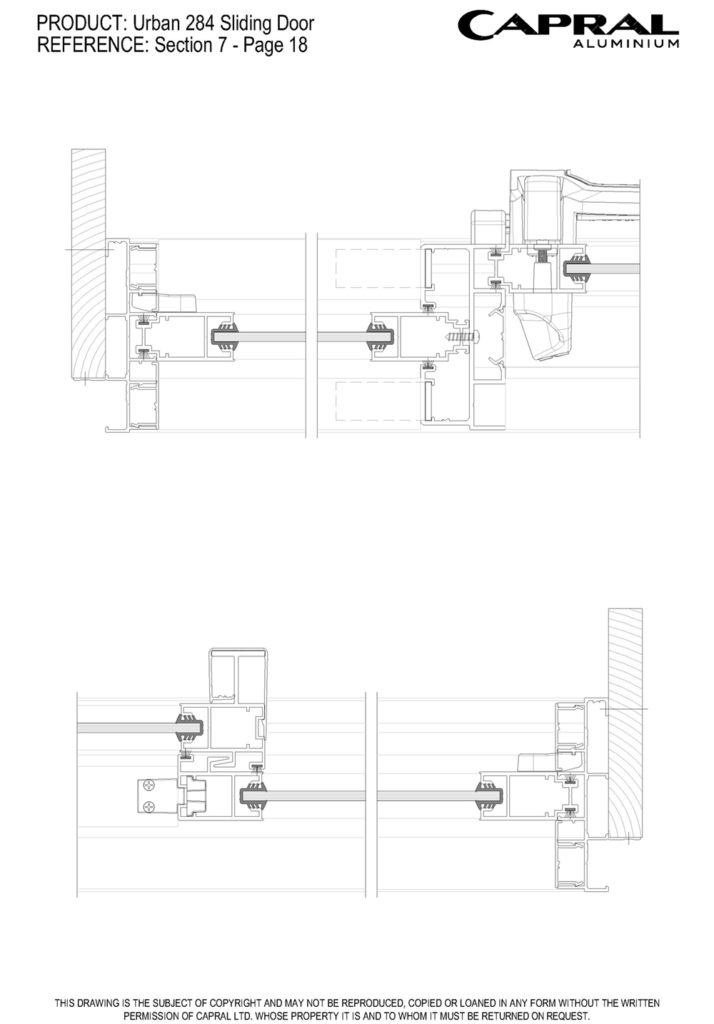

    • Standard configurations (XO/OXO/OXXO)

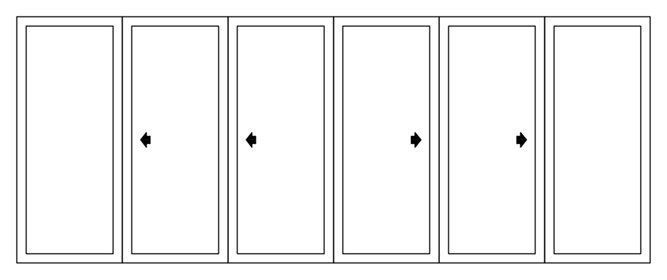

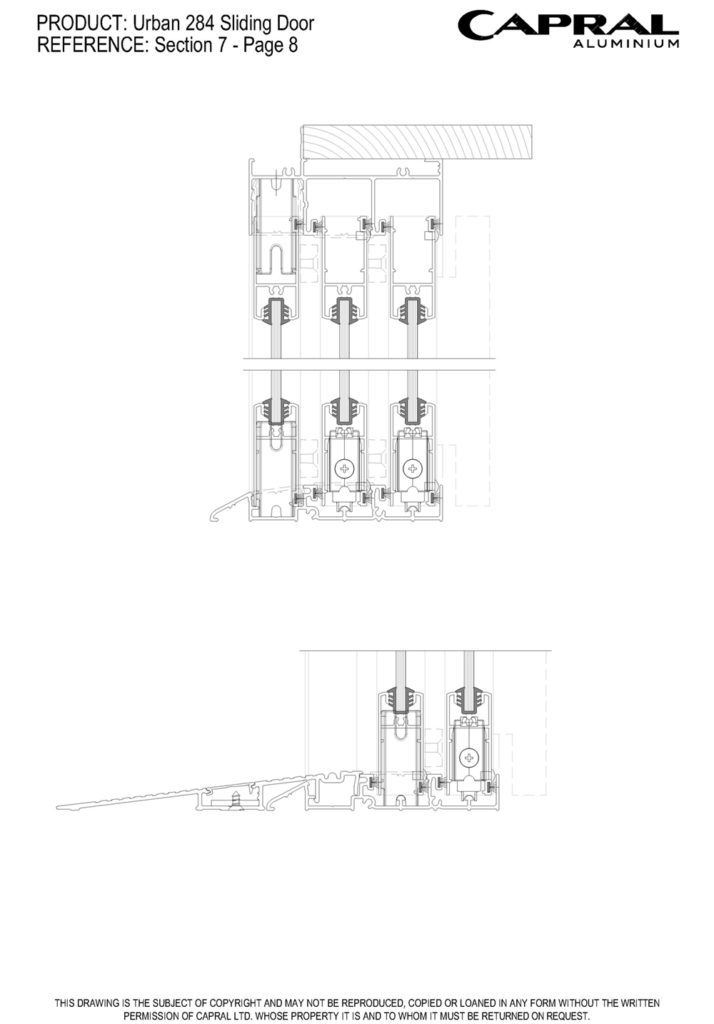

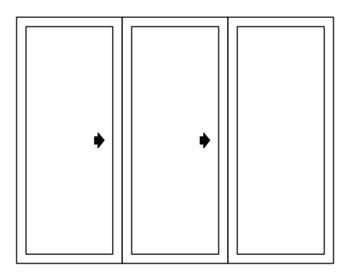

    • Multistack configurations (XXO/OXXXXO)

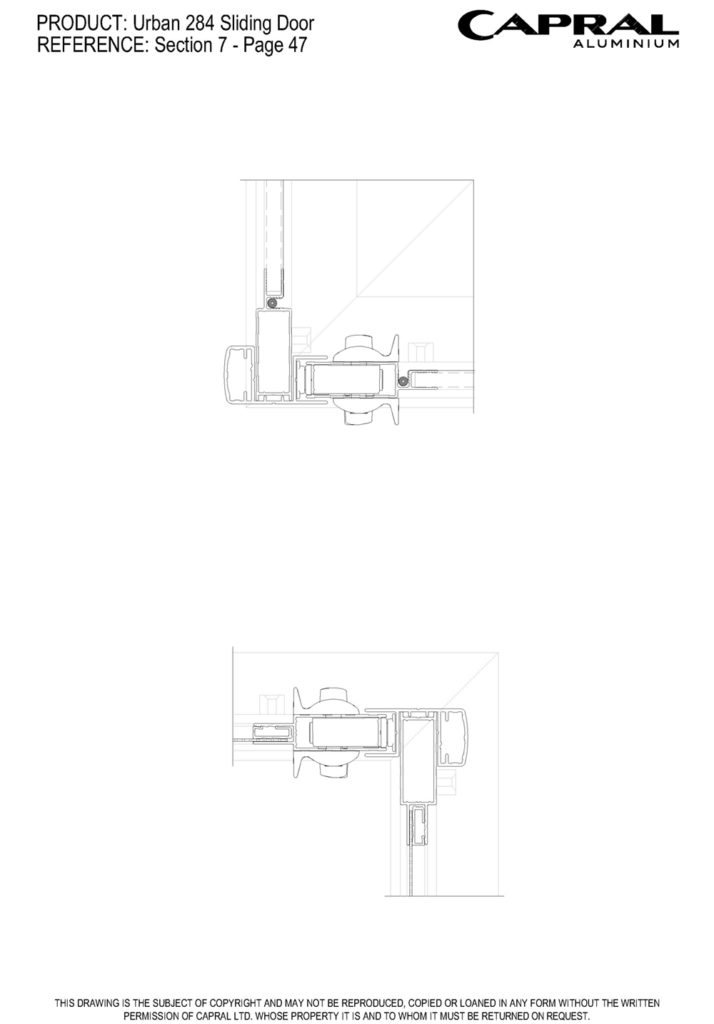

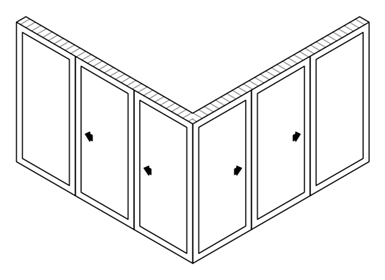

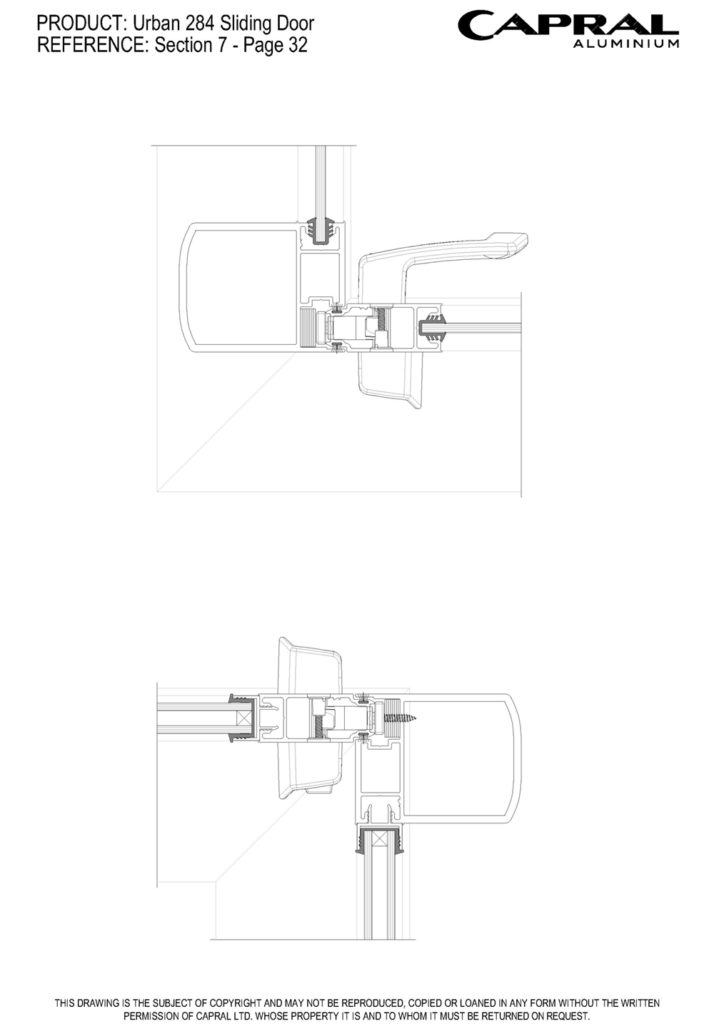

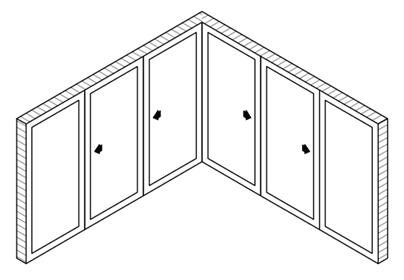

    • Inside and outside corner configurations (OXXcXXO)

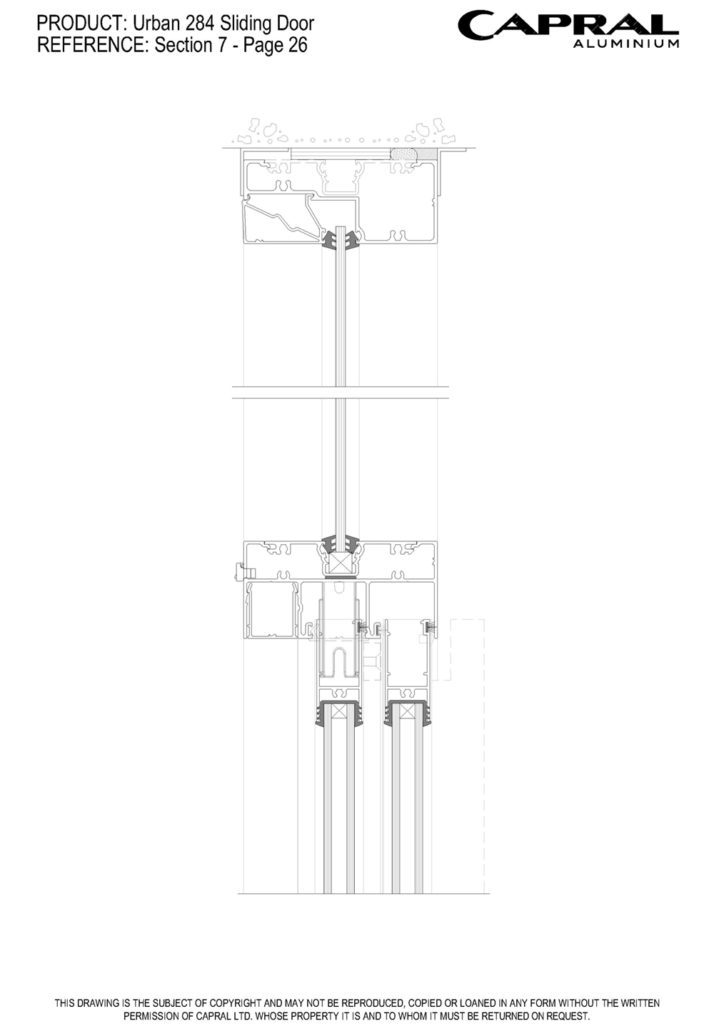

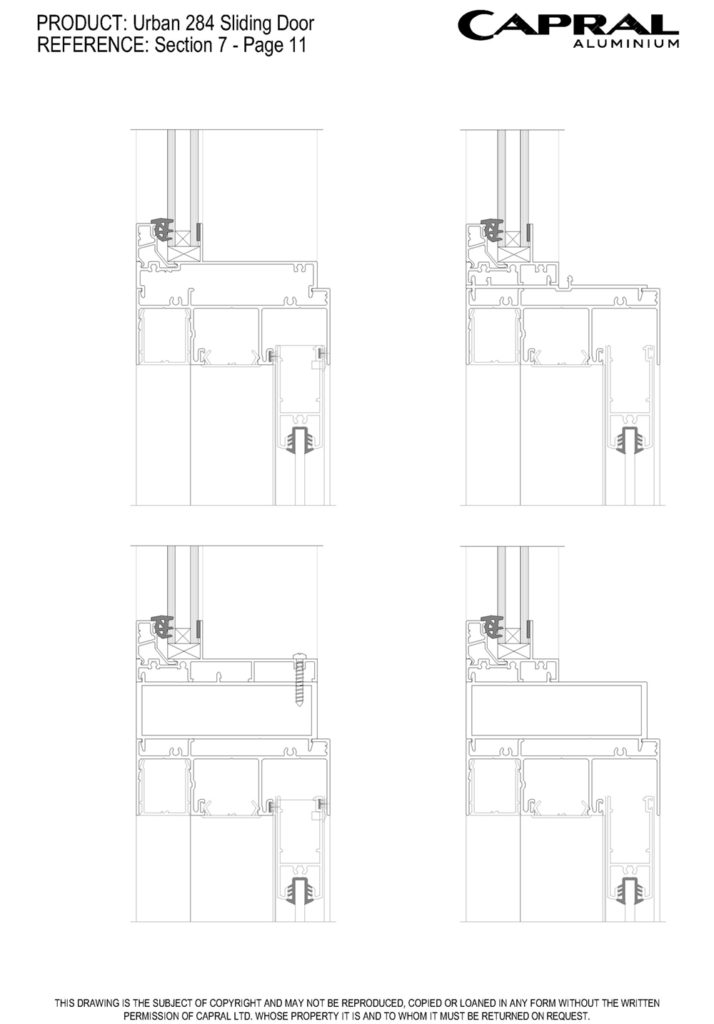

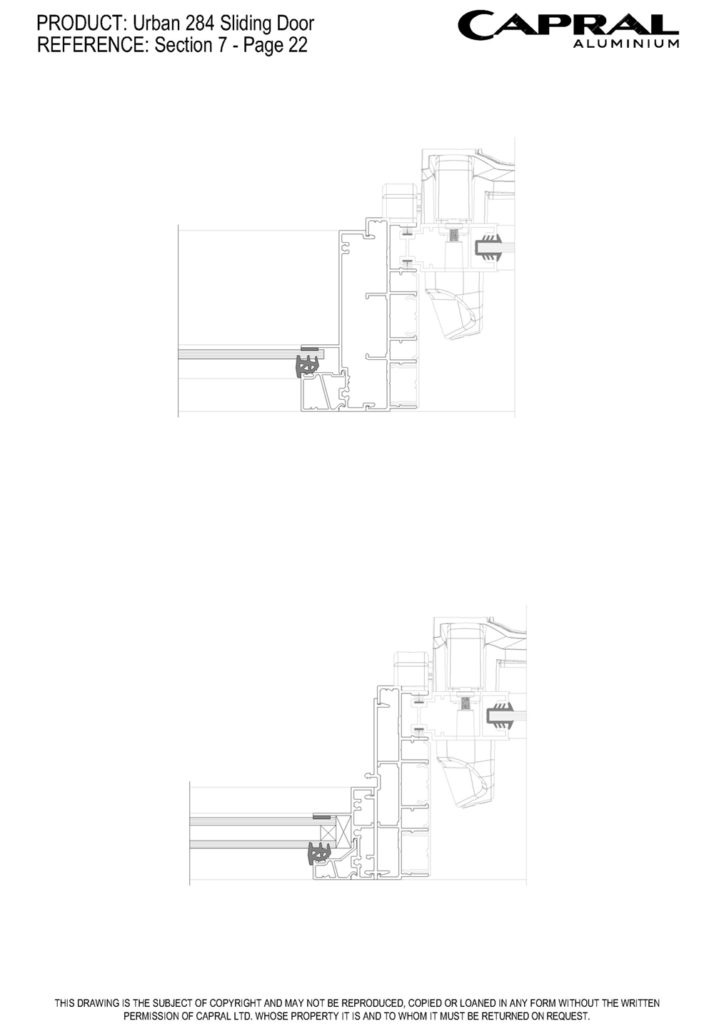

    • Highlight and sidelight options available on selected configurations
    • Standard and low-profile, self-draining

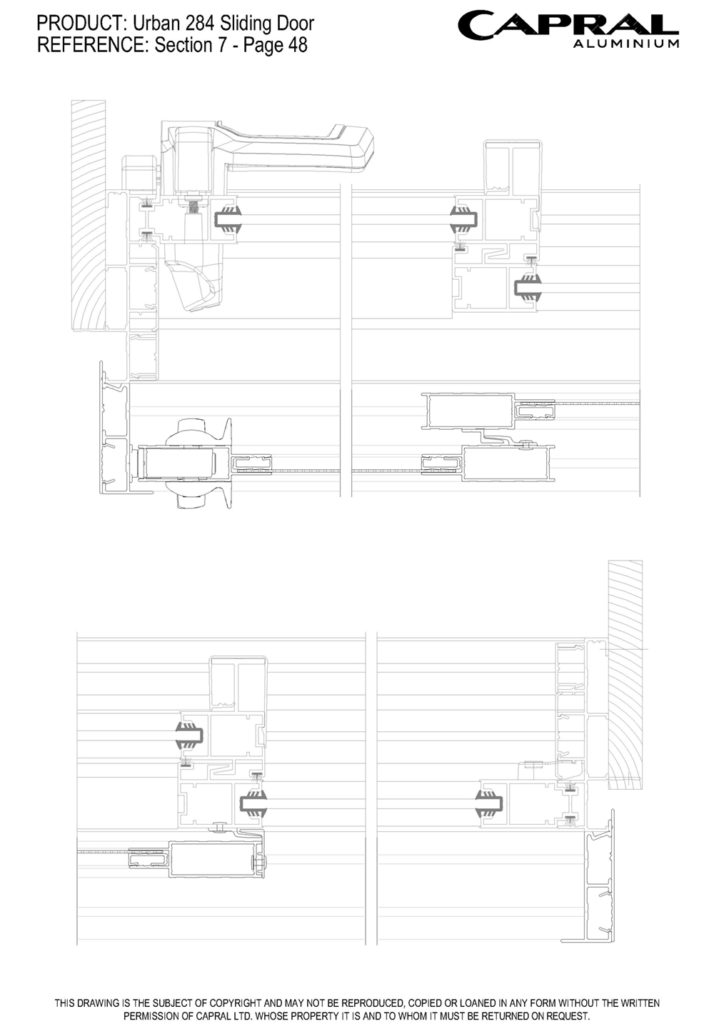

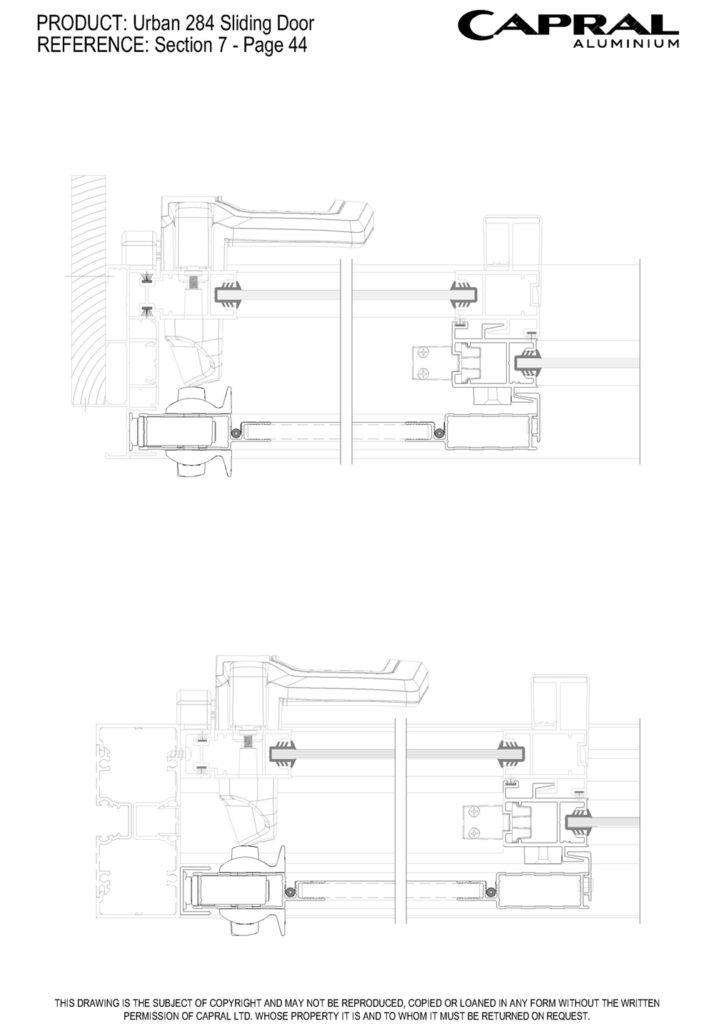

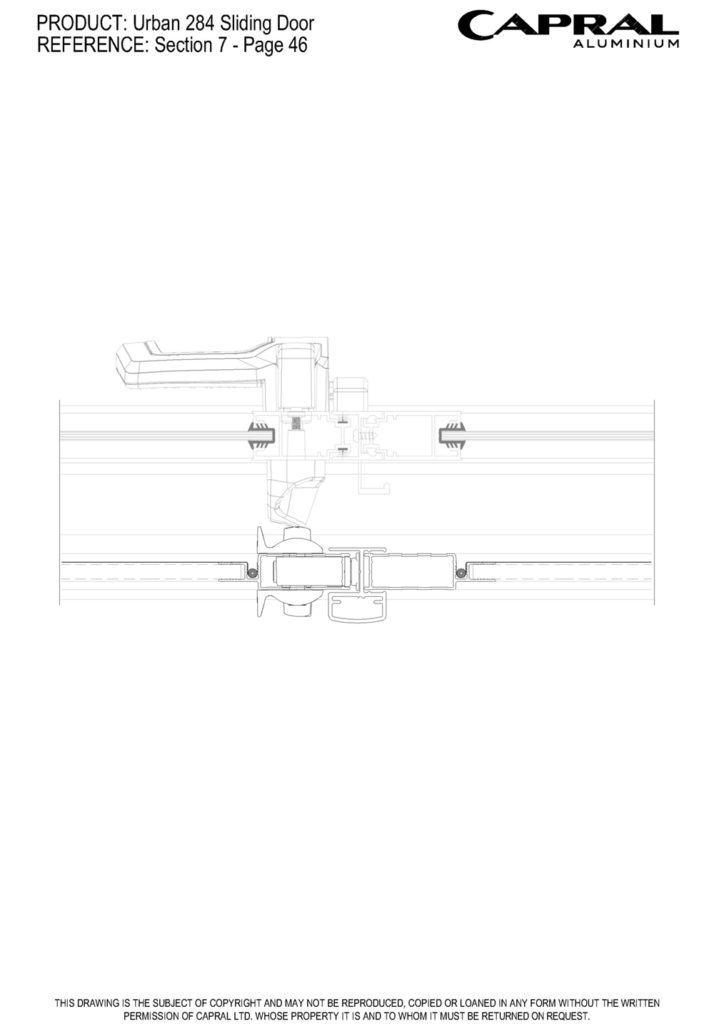

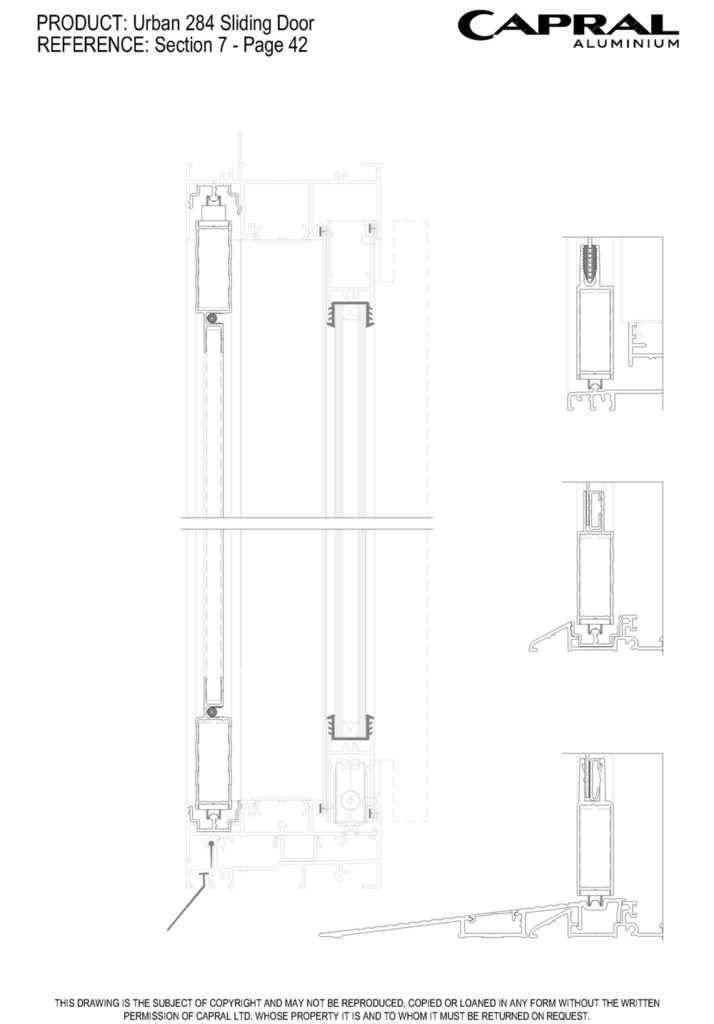

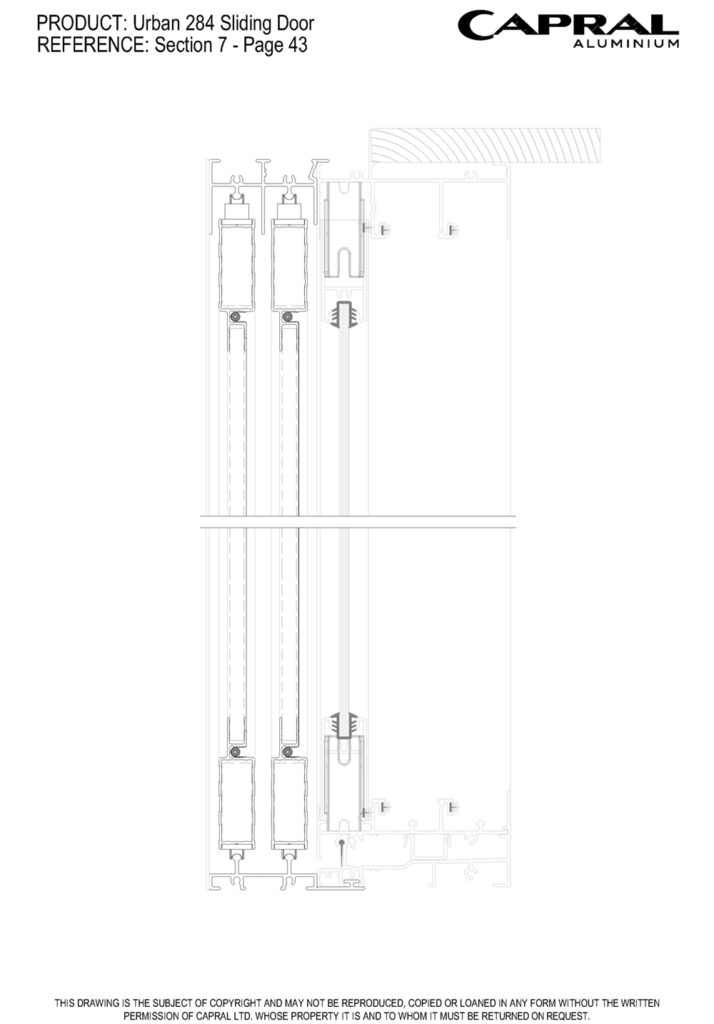

    • Integrated insect and security screening options

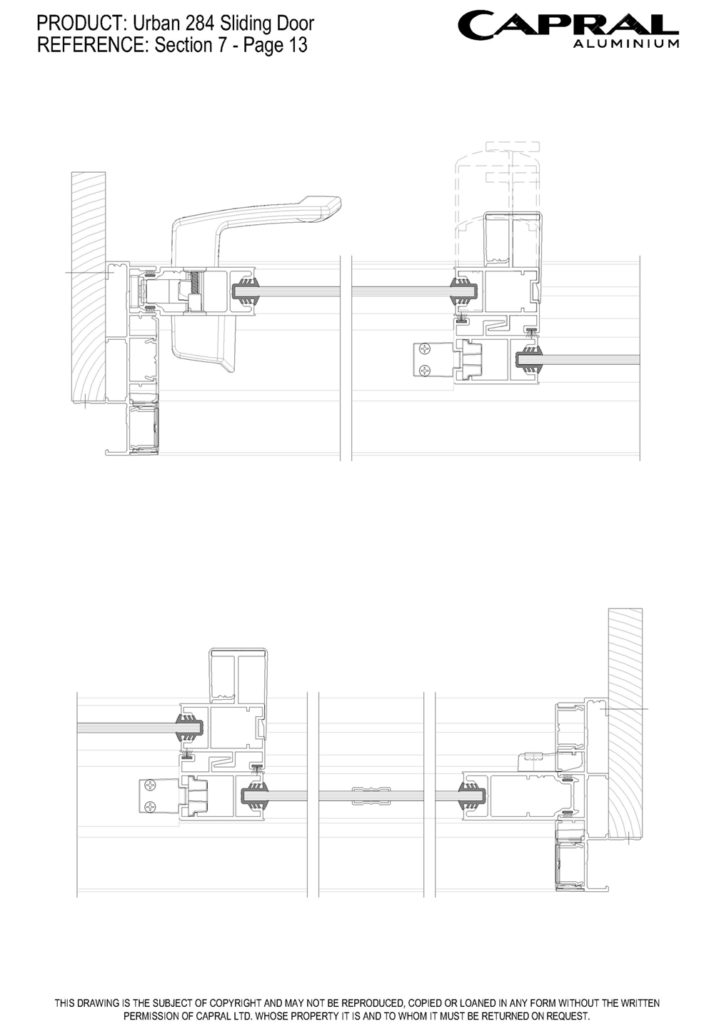

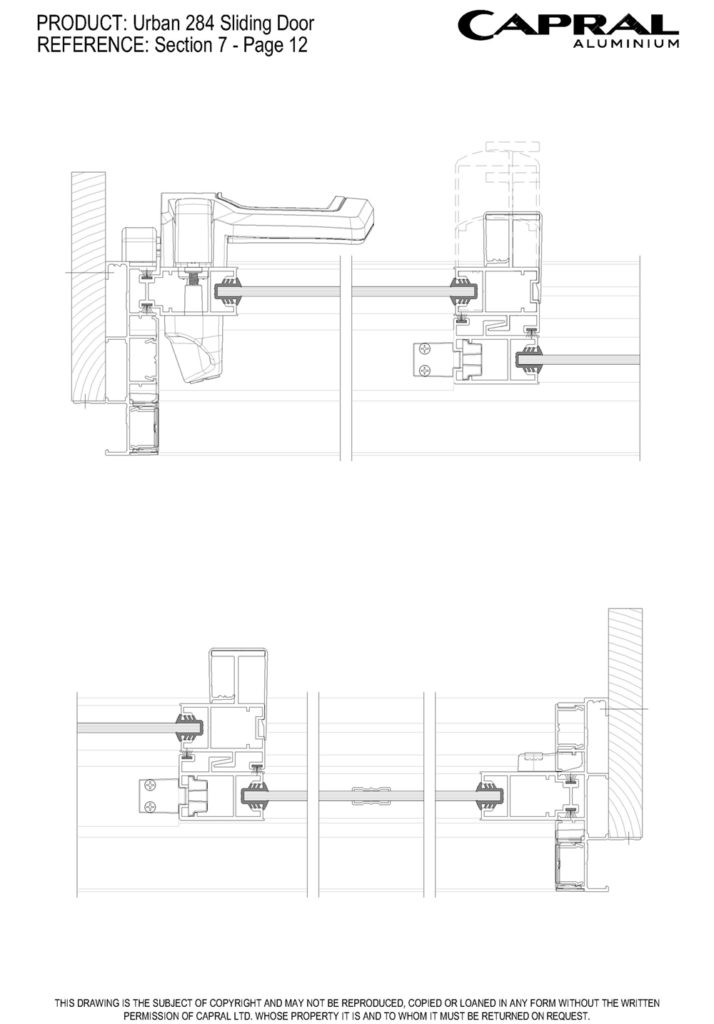

    • Custom design Standard and mortice lock options

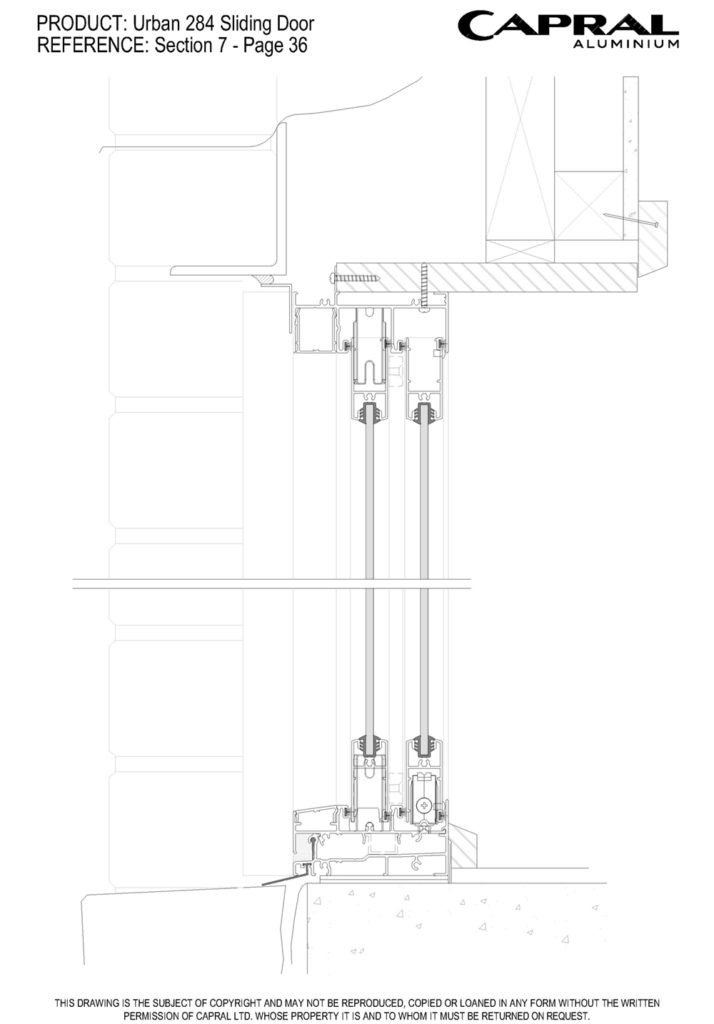

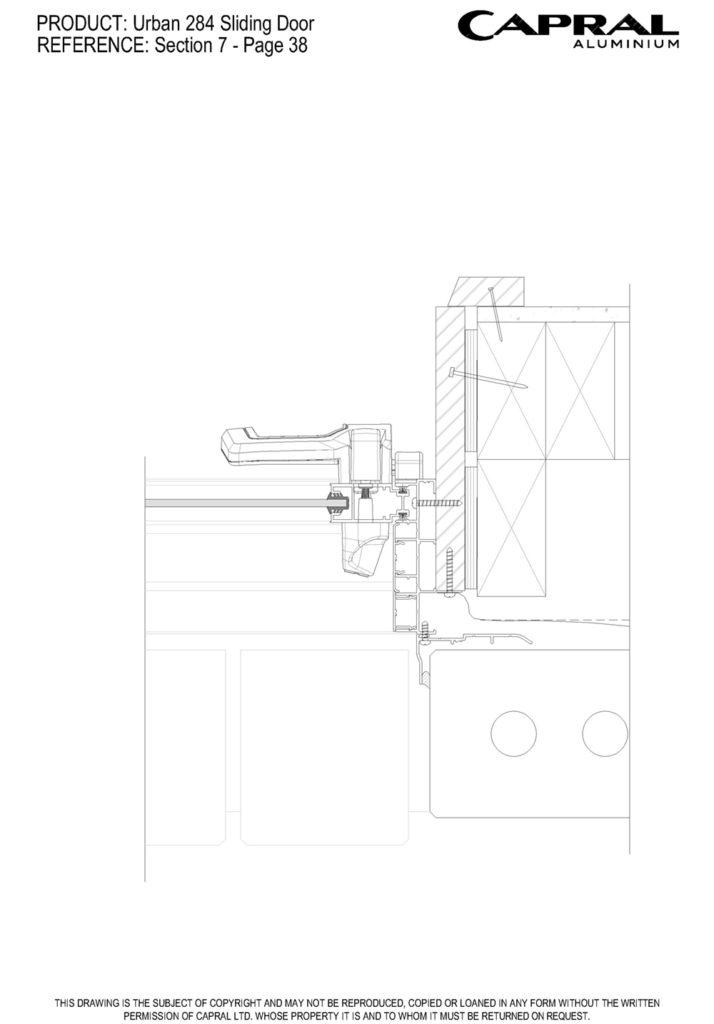

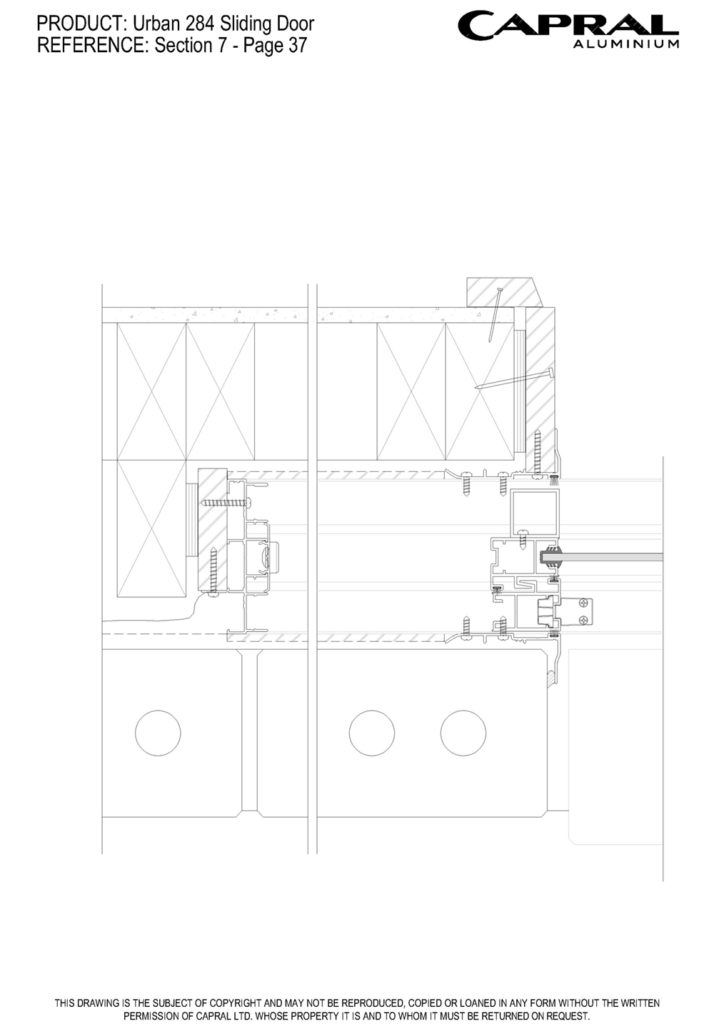

    • Cavity slider & Corner Sliding options

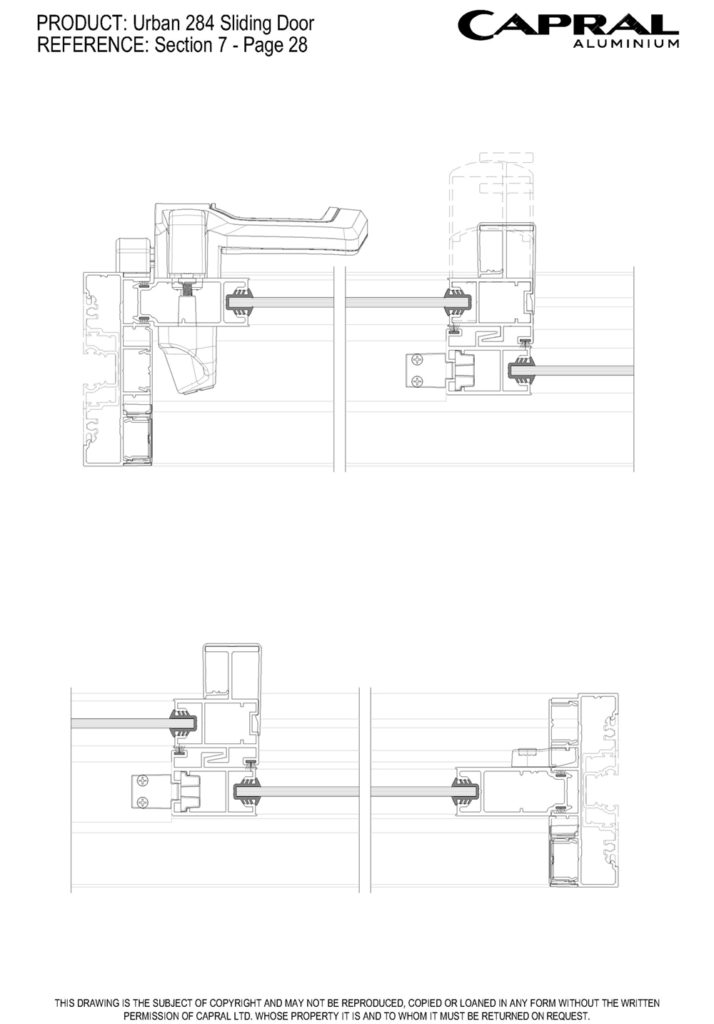

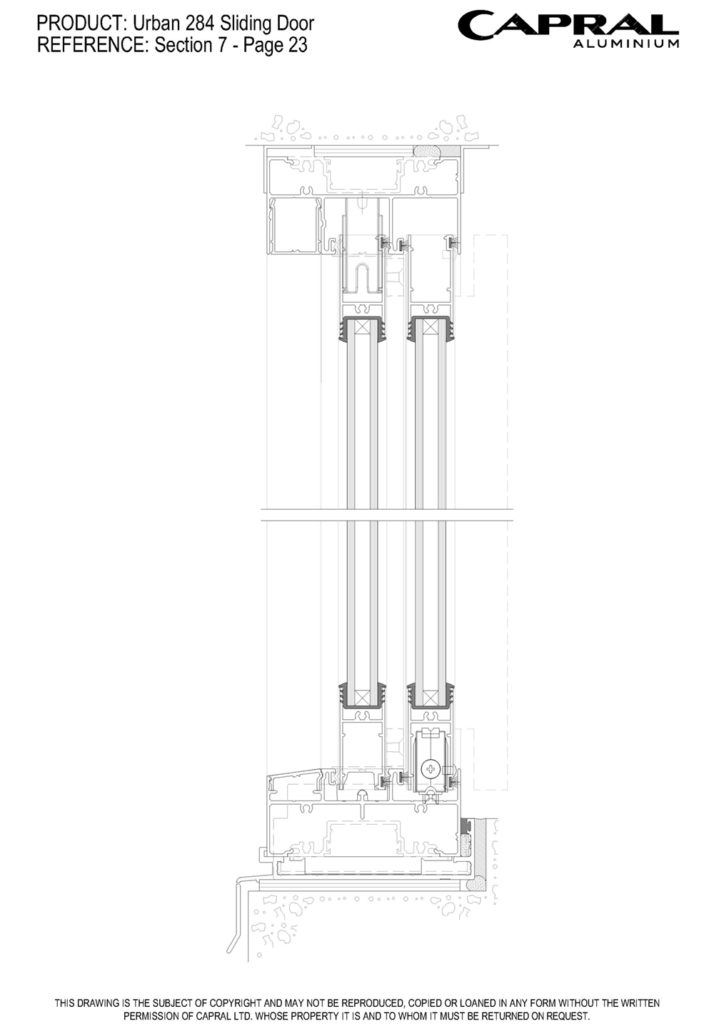

    • Commercial Frame Options

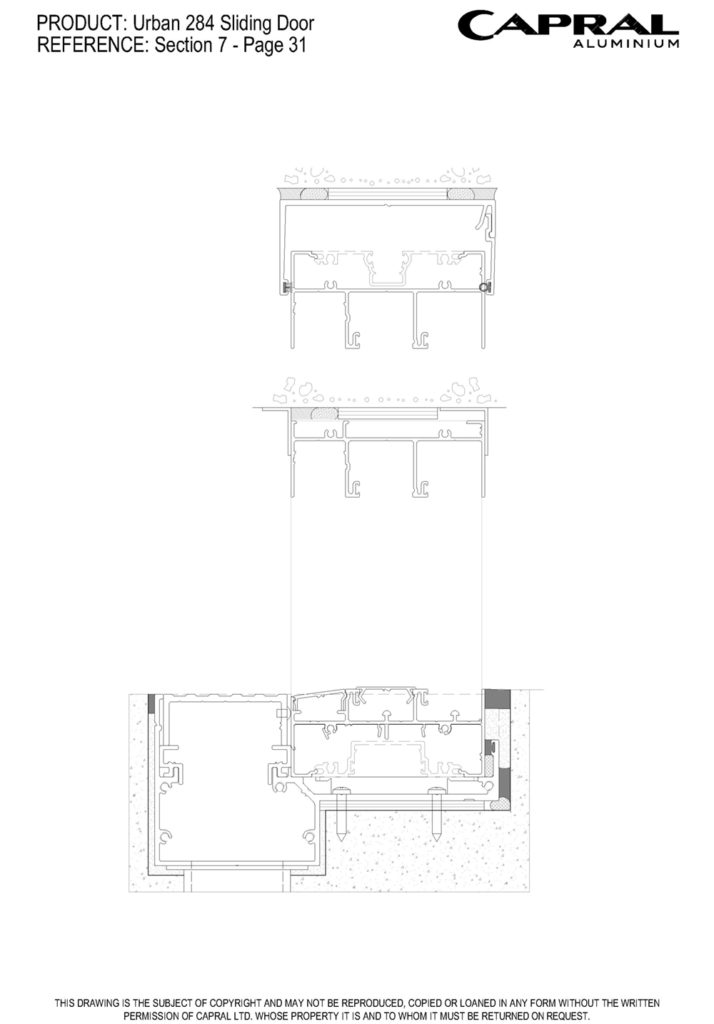

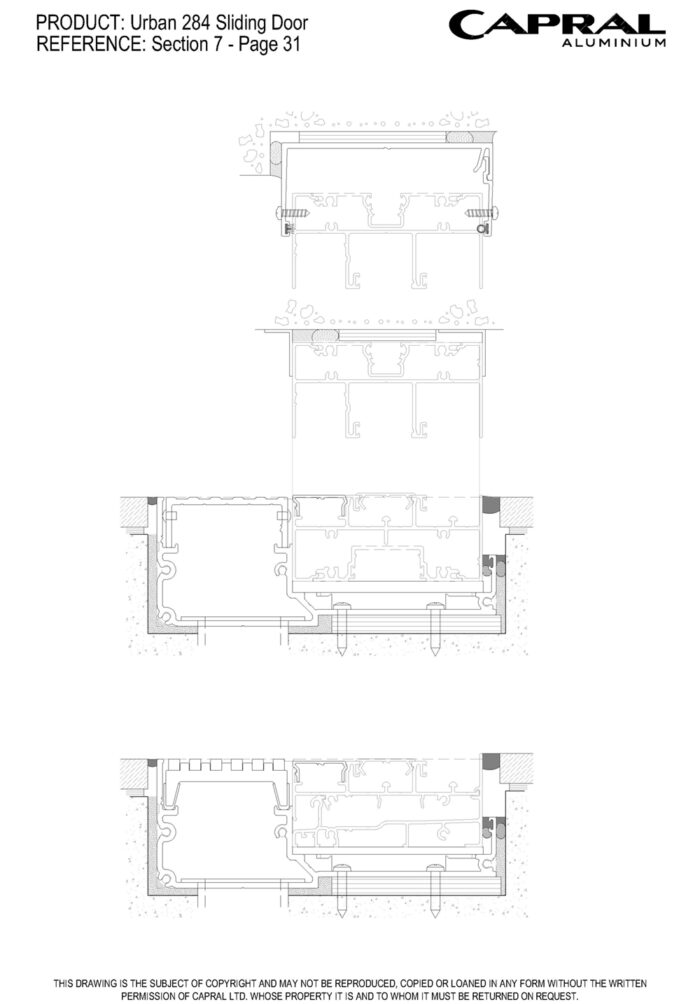

    • Linear Grate Options

    The Urban Sliding/Stacking Door offers design flexibility and is well suited to residential building applications. The door achieves excellent structural and weather performance and has been designed to fit Australia’s wide range of climatic conditions.
    Integrated insect or barrier screening options and double glazing capabilities ensure the Urban Sliding/Stacking Door can be tailored to your exact requirements.
    As part of the Capral Urban Residential Range, it can be integrated with a complementary selection of sliding, casement, awning and double-hung windows to provide a whole of house window solution.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2700
    Panel Width (mm) 1500
    Panel Weight (kg) 160

    Frame Dimensions (mm)

    Standard 101.6
    Integrated Multistack Screen 158
    Commecial 101.6

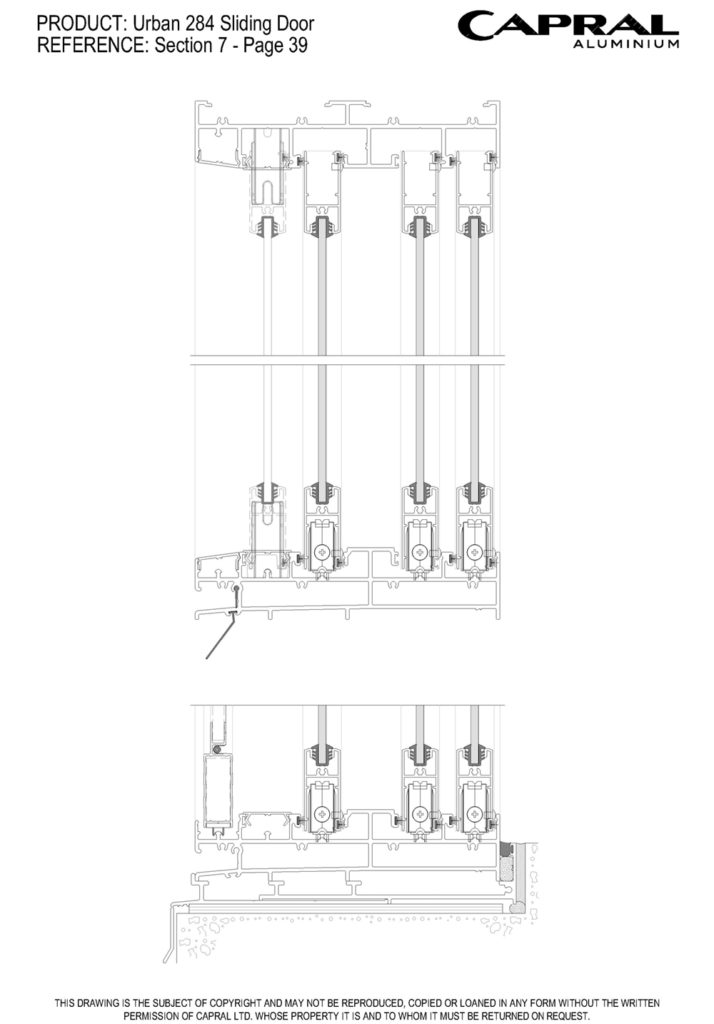

    Commercial Acoustic 200

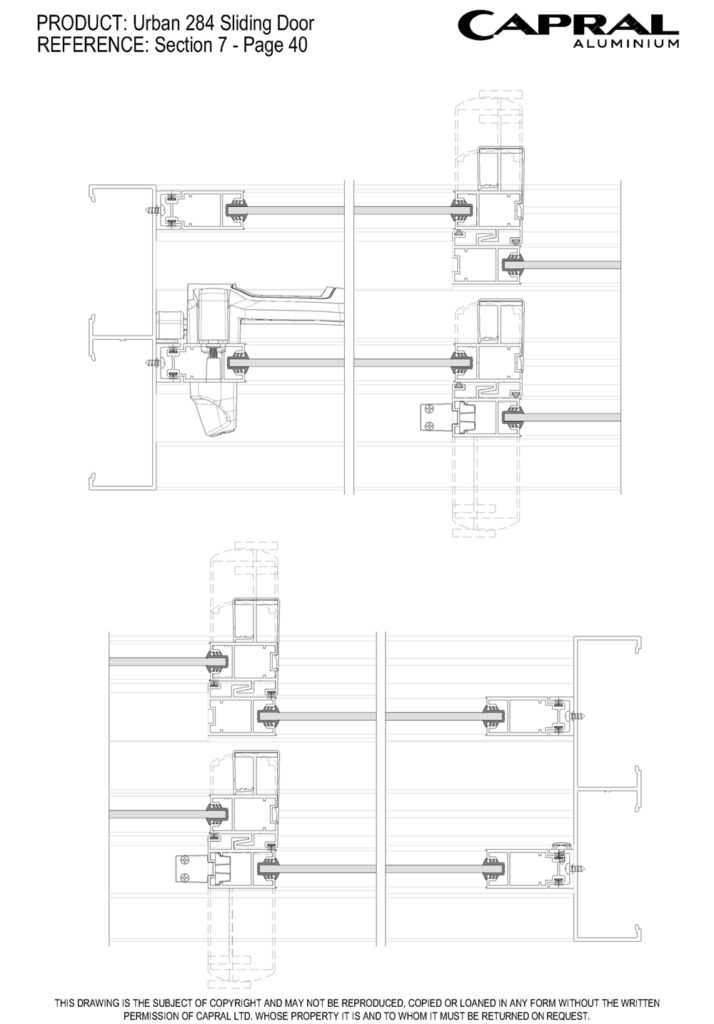

    Acoustic Rating

    Rw (C;Ctr) 35 (-1;-4)

    Bushfire Rating

    BAL 40

    Maximum Product Performance

    SLS (Pa) 3000
    ULS (Pa) 6000
    WATER (Pa) 450

    SLS & ULS achievable using a panel retaining block system.

    Glazing Details

    Single Glazed 4 - 10
    Double Glazed 16 - 18

    Energy Performance

    Uw Range 2.71 - 3.06
    SHGC Range 0.23 - 0.69
    Tvw Range 0.24 - 0.73
    Air infiltration 0.23 - 0.23
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Urban 284 Sliding Door
    Wall Charts
    Extrusion Wall Chart Capral Screening
    Extrusion Wall Chart Urban Doors
    CAD Files
    CAD Files Urban 284 Sliding Door
    CAD Files Capral Screening
    CAD Wall Chart Urban Windows & Doors
    Bulletins
    PB431 - Urban 284 OXXO Box Adaptor Receiver Channel
    PB378 - Urban 284 Sliding Door & Urban Plus 390 Sliding Window OXO Adaptor
    PB326 - Urban 284 Sliding Door Commercial Sill
    PB298 - Universal Head Capping
    PB256 - Urban Sliding Door Disabled Access Ramp
    Pb265 - Urban Sliding Door Head Gasket
    Other
    Capral Urban 284 Sliding Door Brochure Specification Urban 284 Sliding Door Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
