Urban 284L Light Sliding Door
The Urban Light Sliding Door is a high-performing residential non-stacking sliding door system, ideal for residential building applications.
Certified
Rated
Key features
- Single and double-glazing options
- Self-draining sill design
- Integrated insect and security screening options
- Standard surface-mounted lock options
- Compatible with Urban products

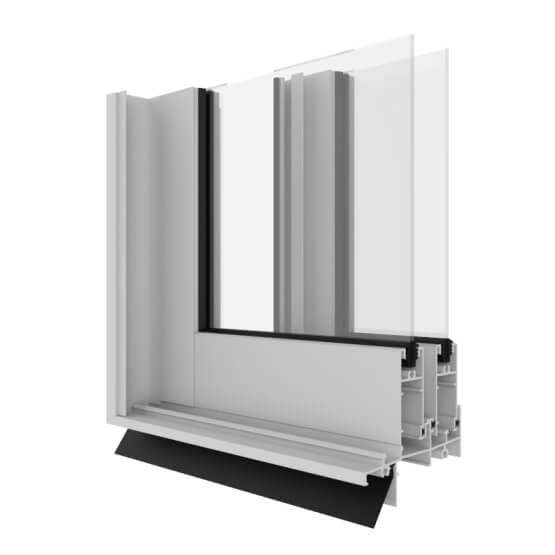

The Urban Light Sliding Door is a high-performing residential non-stacking sliding door system. It features a lighter 95mm framing system, high-quality rollers delivering a smooth and easy operation and elegant surface-mounted hardware. The system also accepts double-gazing for enhanced thermal performance. Available in standard two-track configurations of two, three and four-panel non-stacking options.
Being part of the Capral Urban residential range, the Urban Light Sliding Door can be paired with a complementary selection of sliding, casement, awning and double-hung windows to provide a whole house window and door solution.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
1500
Panel Weight (kg)
160
Frame Dimensions (mm)
Frame depth (mm)
95
Acoustic Rating
Rw (C;Ctr)
31 (0;-1)
Maximum Product Performance
SLS (Pa)
2750
ULS (Pa)
4400
WATER (Pa)
300
Glazing Details
Single Glazed
4 - 10
Double Glazed
16 - 18
Energy Performance
Uw Range
3.08 - 6.31
SHGC Range
0.20 - 0.58
Tvw Range
0.06 - 0.74
Air infiltration
0.28 - 0.28
