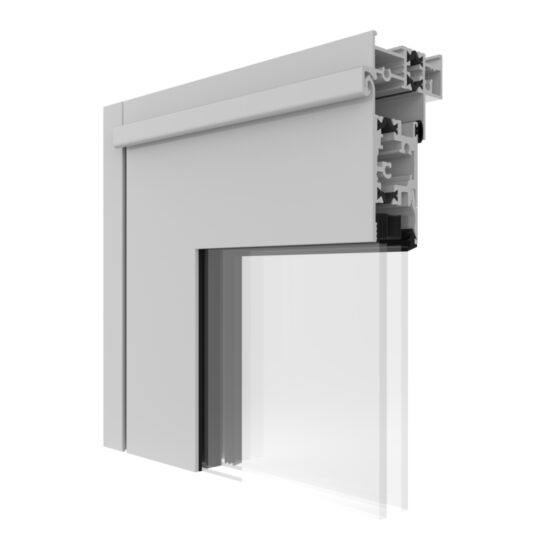

Urban Comfort 282TB Awning Window
The Urban Comfort Thermally Broken Awning Window combines sleek design with outstanding thermal performance, tailored for Australian residential applications.
Broken
Certified
Key features
- Awning U-Values down to 2.6
- 50.8mm frame depth to accommodate thermal break & flyscreen
- 8G fasteners used throughout for robust construction
- Integrated insect and security screening options
- High, low, and side-lights can be coupled
- Can be coupled to 284TB Sliding Door for side and high-lights
The Urban Comfort Thermally Broken Awning Window combines sleek design with outstanding thermal performance, tailored for Australian residential applications. Featuring advanced thermal break technology, this window enhances energy efficiency and comfort while offering smooth operation, modern aesthetics, and the flexibility to suit a variety of home styles.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2100
Panel Width (mm)
2100
Panel Weight (kg)
60kg
Panel Area (m2)
1.9
Shown sizes are for integral hinged awning.
Frame Dimensions (mm)
Standard
50.8
Maximum Product Performance
SLS (Pa)
2500
ULS (Pa)
6000
WATER (Pa)
600
Glazing Details
Double Glazed
16 - 22
Energy Performance
Uw Range
2.60 - 3.50
SHGC Range
0.25 - 0.40
Tvw Range
0.26 - 0.49
Air infiltration
0.46 - 0.46
