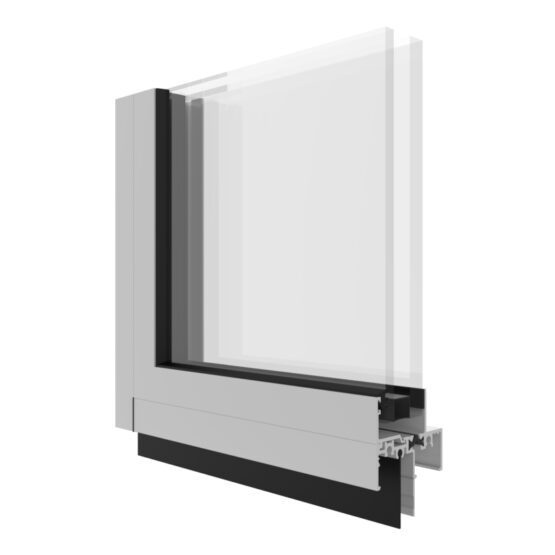

Urban Comfort 282TB Fixed Light Window
The Urban Comfort Thermally Broken Fixed Light Window combines sleek design with outstanding thermal performance, tailored for Australian residential applications.
Broken
Certified
Key features
- Fixed Light to 1.7
- 50.8mm frame depth to accommodate thermal break & flyscreen
- 8G fasteners used throughout for robust construction
- Integrated insect and security screening options
- High, low, and side-lights can be coupled
- Can be coupled to 284TB Sliding Door for side and high-lights
The Urban Comfort Thermally Broken Fixed Light Window combines sleek design with outstanding thermal performance, tailored for Australian residential applications. Featuring advanced thermal break technology, this window enhances energy efficiency and comfort while offering modern aesthetics, and the flexibility to suit a variety of home styles.
Download BrochureDetails
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2400
Panel Width (mm)
1500
Frame Dimensions (mm)
Standard
50.8
Maximum Product Performance
SLS (Pa)
4500
ULS (Pa)
9000
WATER (Pa)
600
Glazing Details
Single Glazed
10 - 10
Double Glazed
12 - 28
Energy Performance
Uw Range
1.60 - 2.90
SHGC Range
0.32 - 0.53
Tvw Range
0.37 - 0.69
Air infiltration
0.12 - 0.12
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Urban Comfort 282TB Awning & Casement Window
Wall Charts
Extrusion Wall Chart Urban Comfort Windows & Doors
CAD Files
CAD Files Urban Comfort 282TB Awning & Casement Window
CAD Wall Chart Urban Comfort Windows and Doors
Bulletins
PBJ1004 - Urban Comfort 282TB Thermal Residential Range
Other
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
