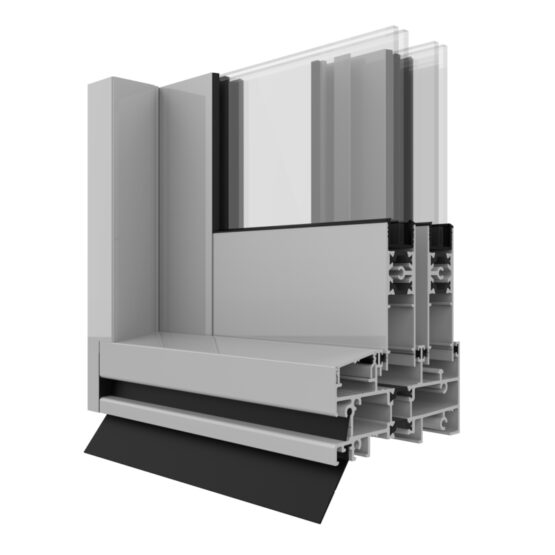

    Urban Comfort 284TB Sliding Door

    Capral's Urban Comfort Thermally Broken Sliding Door is designed for Australian homes with enhanced comfort and thermal efficiency.

    Download Brochure WERS Rating
    Residential Commercial
    Thermally
    Broken
    Declare Label
    Certified
    Disability
    Access
    WERS

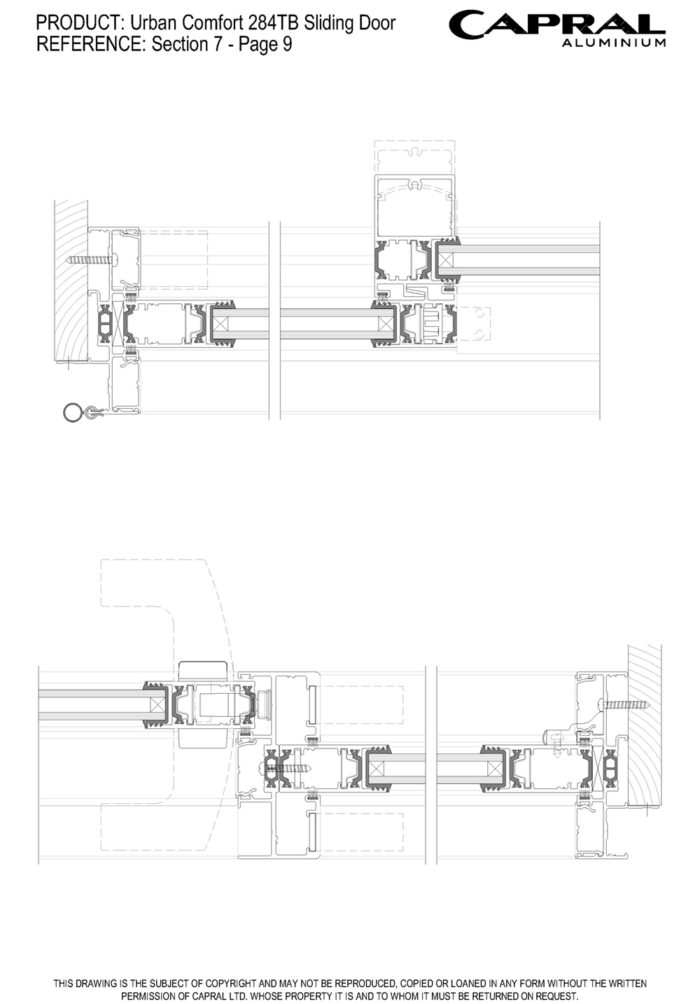

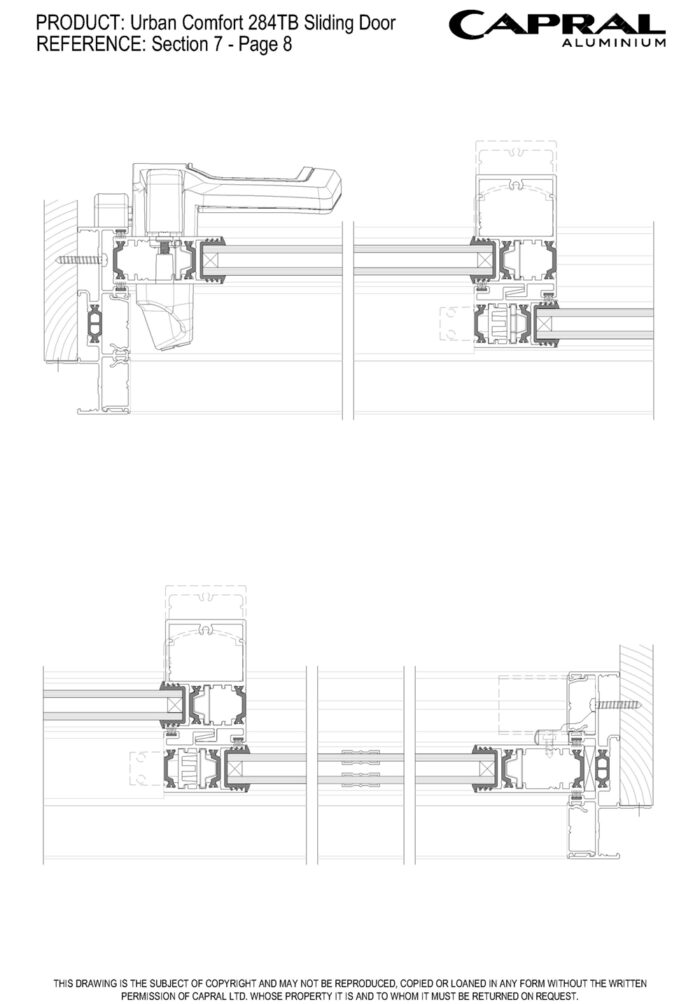

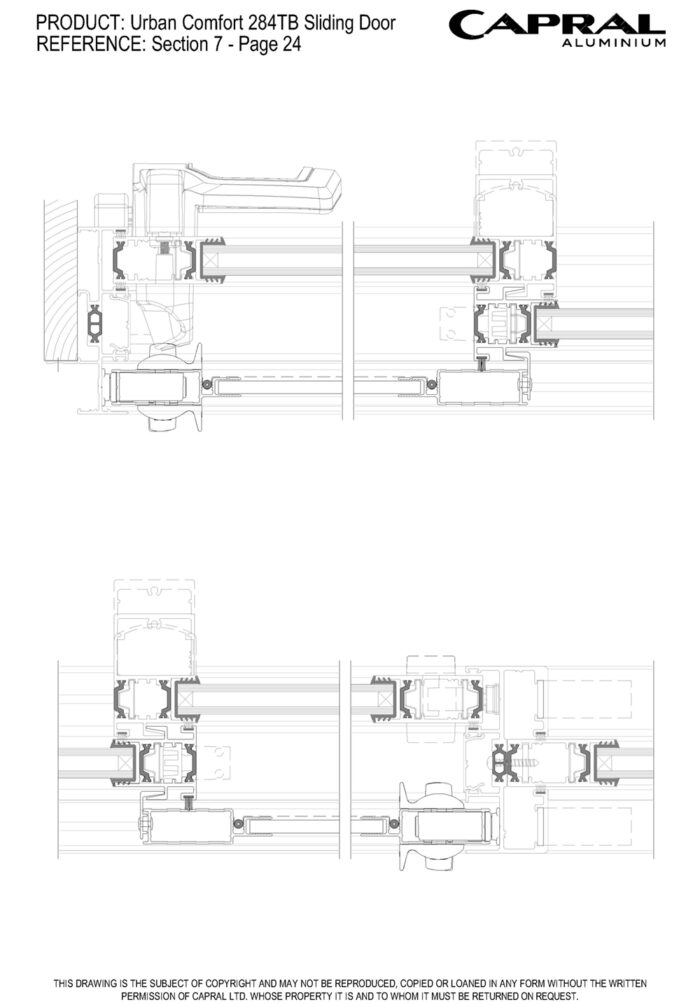

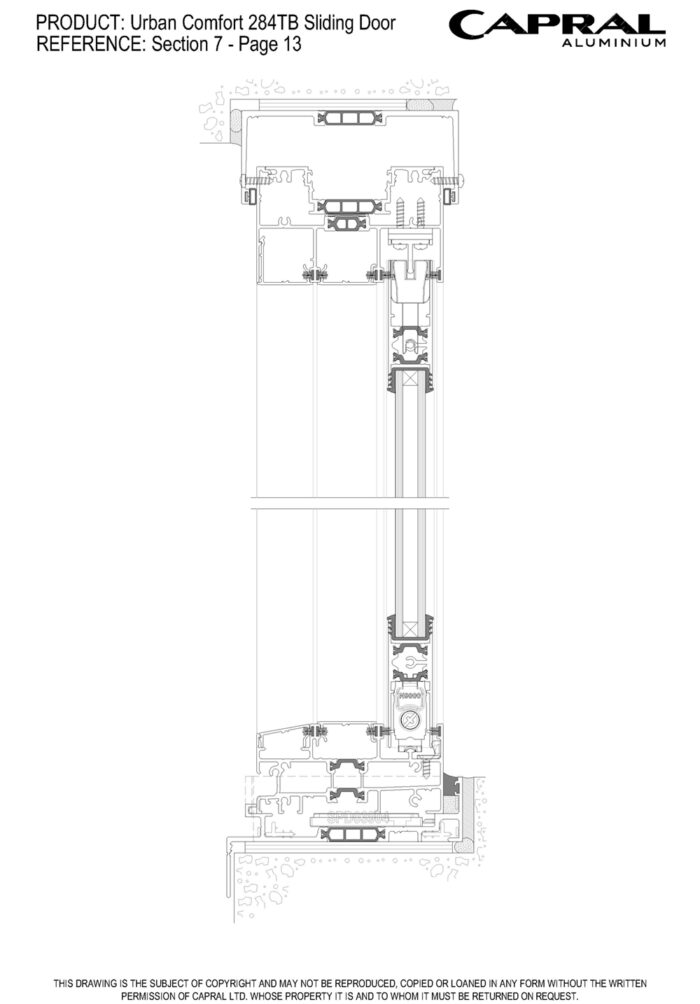

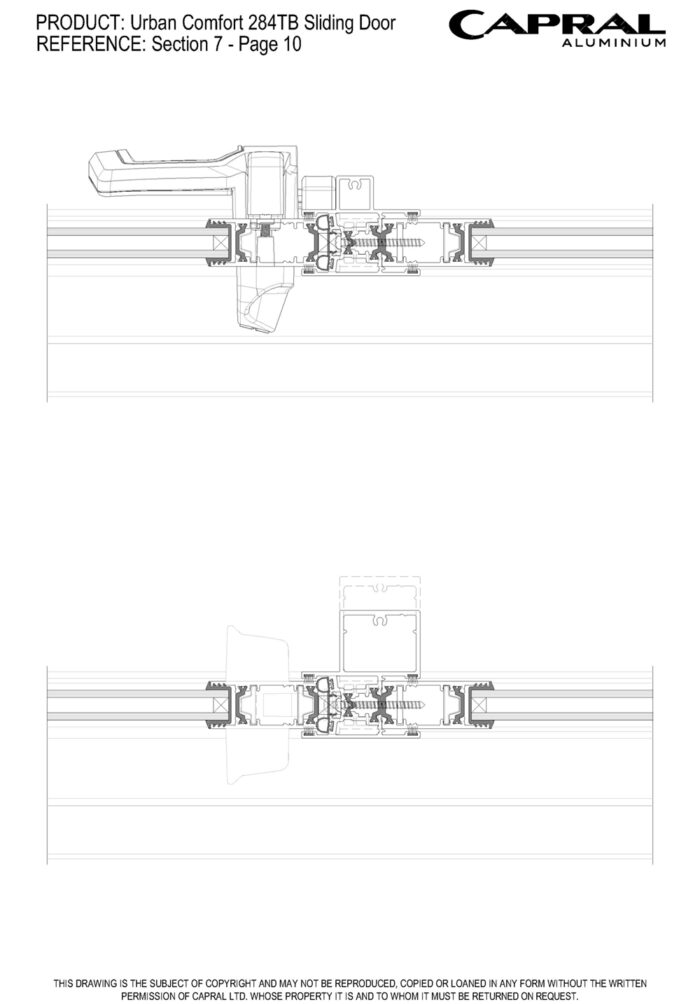

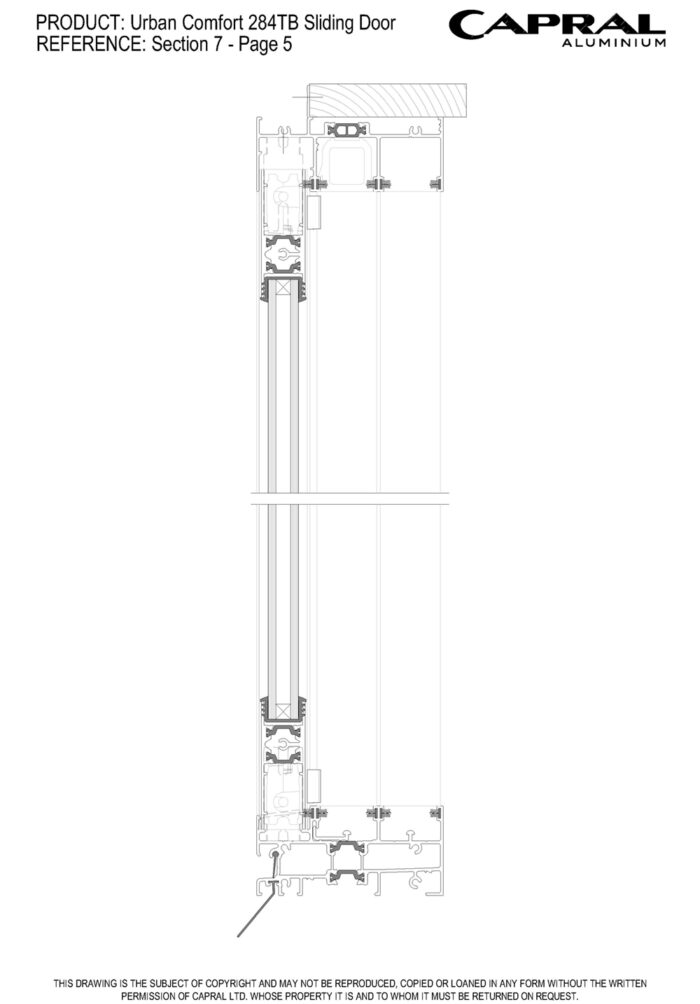

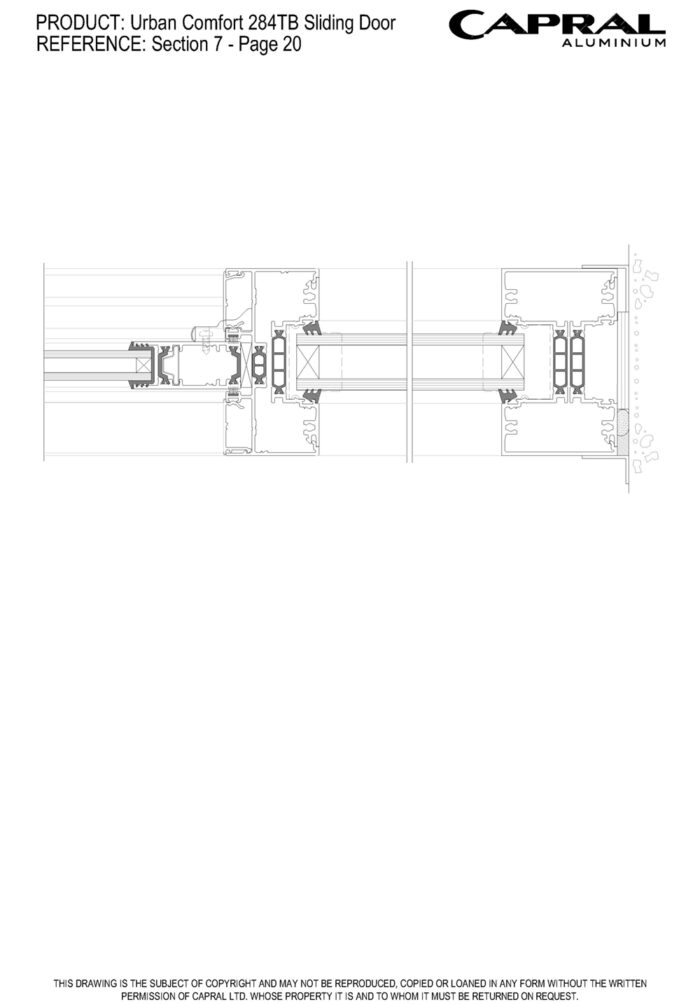

    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features
    • U-Values down to 2.0

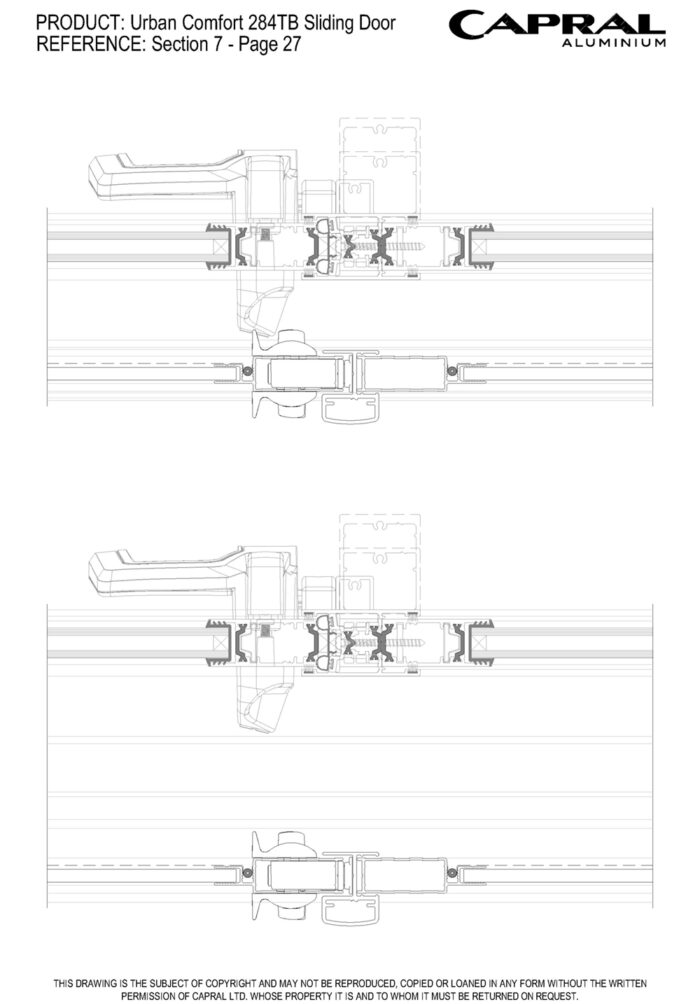

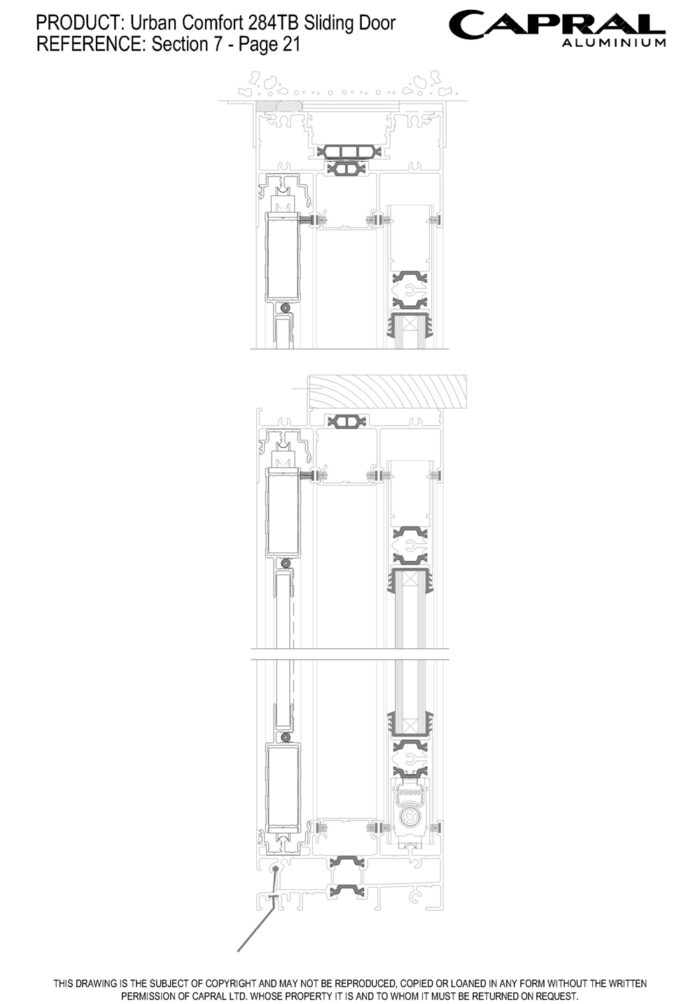

    • Three-track sill with integrated flyscreen variant

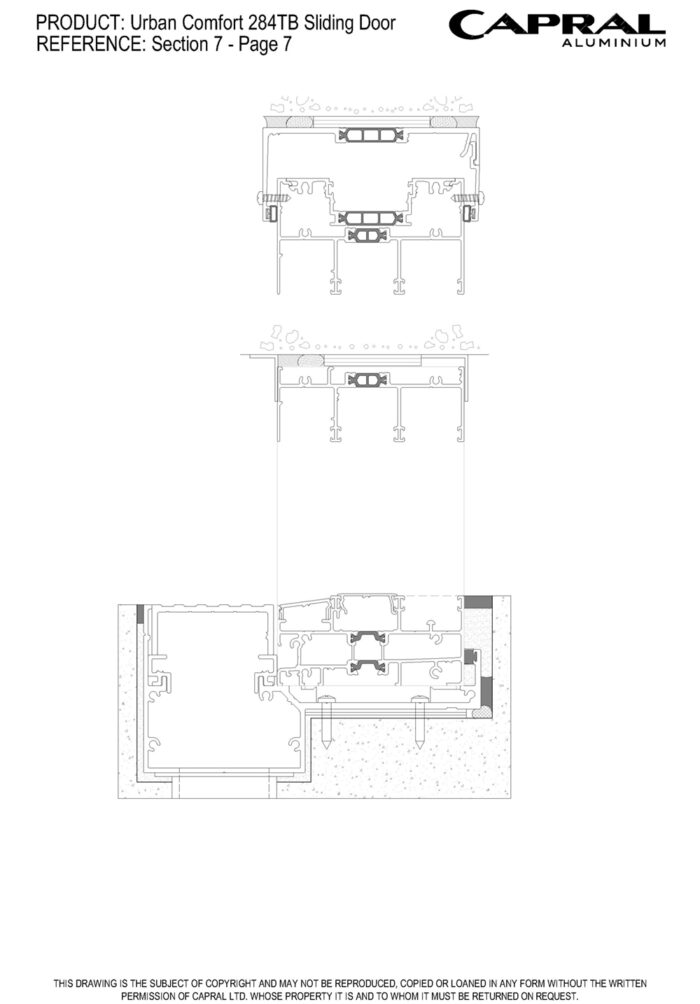

    • Commercial frame options with linear grate drain compatibility
    • 284 Sliding Door Plant-on flyscreen frame compatible
    • Glazing capacity up to 18mm
    • Custom designed hardware for easy fabrication

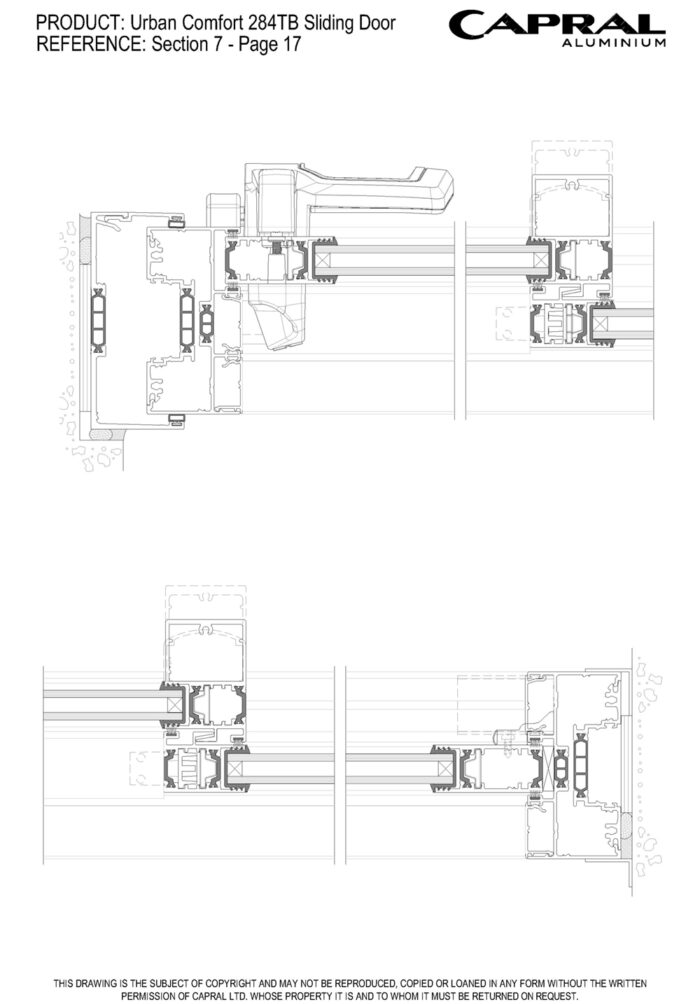

    • Single Lock Stile design for Surface & Mortice locks

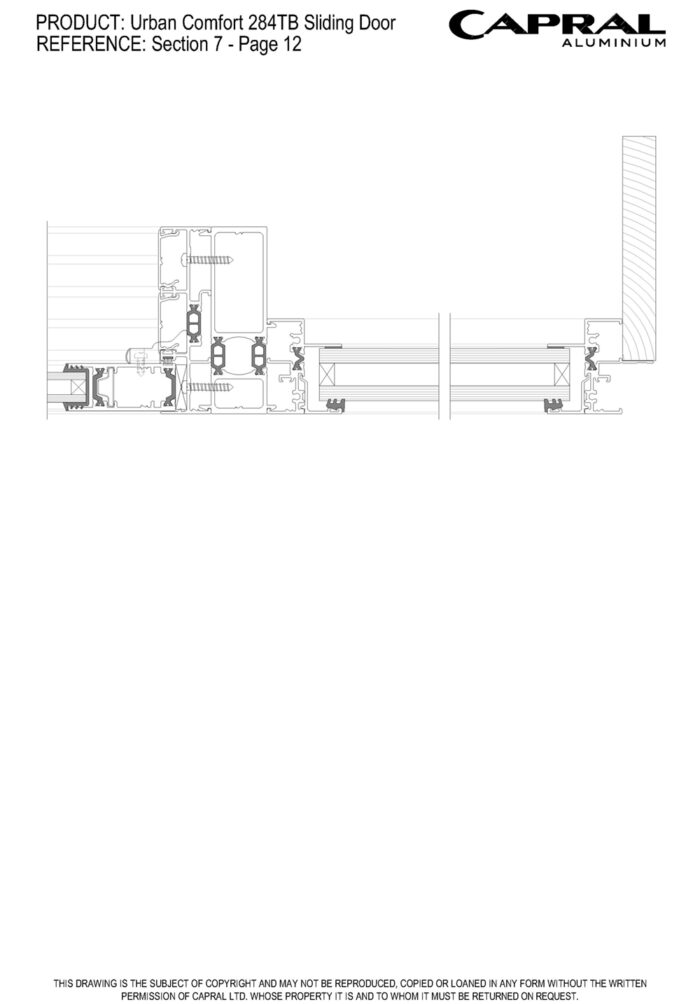

    • Compatible coupled side-light configurations using 425TB and Urban Comfort 282-TB

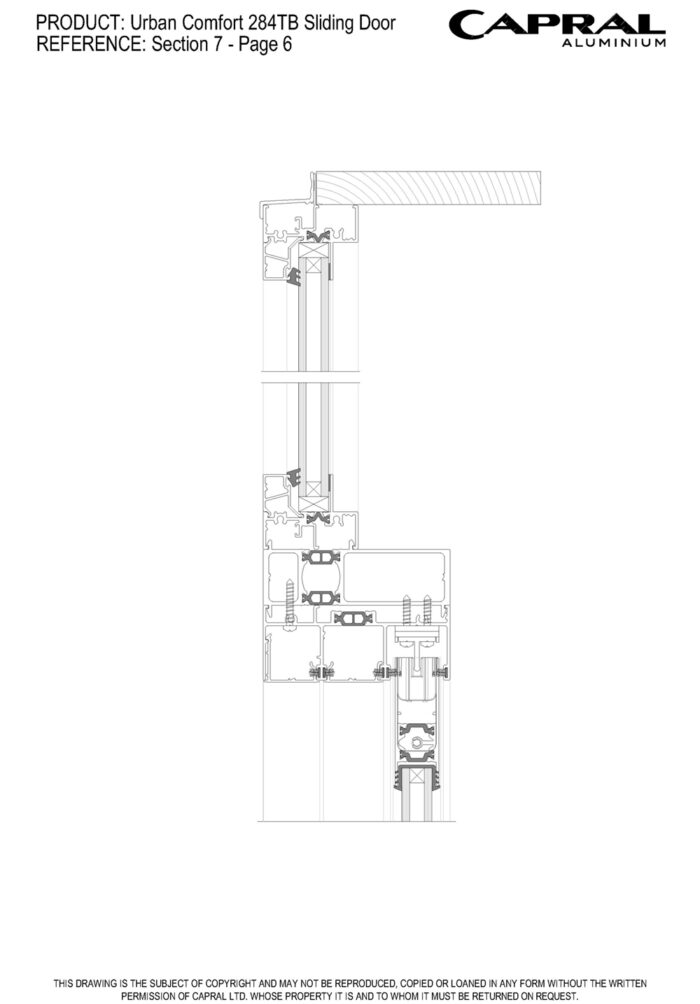

    • Urban Comfort Fixed Light compatible for high lights

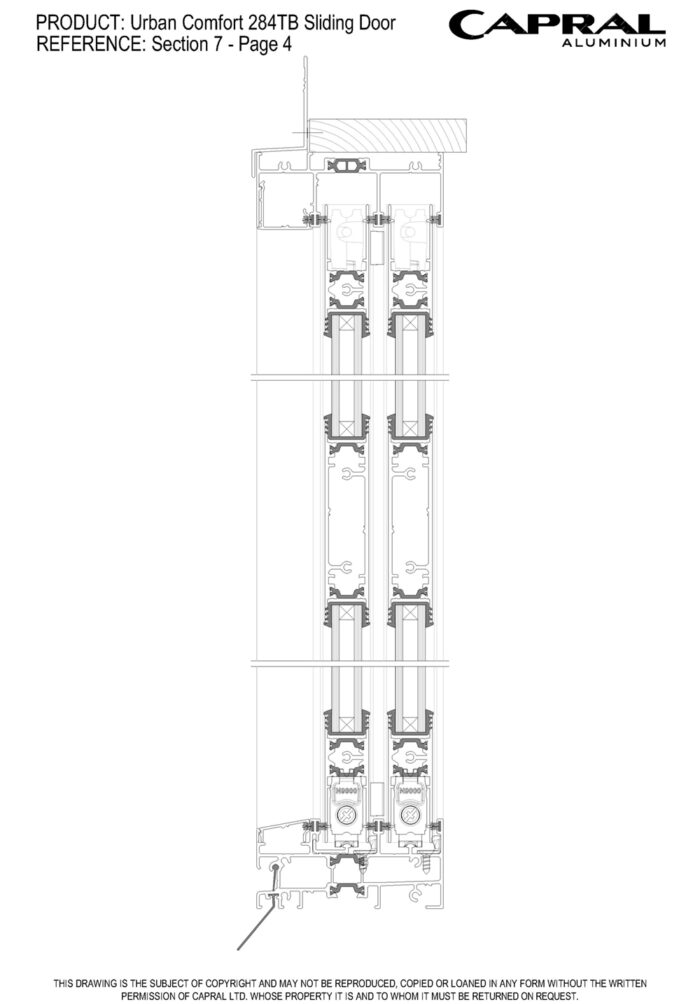

    The Urban Comfort Thermally Broken Sliding Door is expertly designed for Australian residential applications, delivering exceptional thermal efficiency and enhanced occupant comfort. Featuring advanced thermal break technology, this versatile system offers both sliding and stacking configurations and integrates seamlessly with screening options, making it the perfect choice for modern, energy-conscious homes.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2700
    Panel Width (mm) 1500
    Panel Weight (kg) 160

    Frame Dimensions (mm)

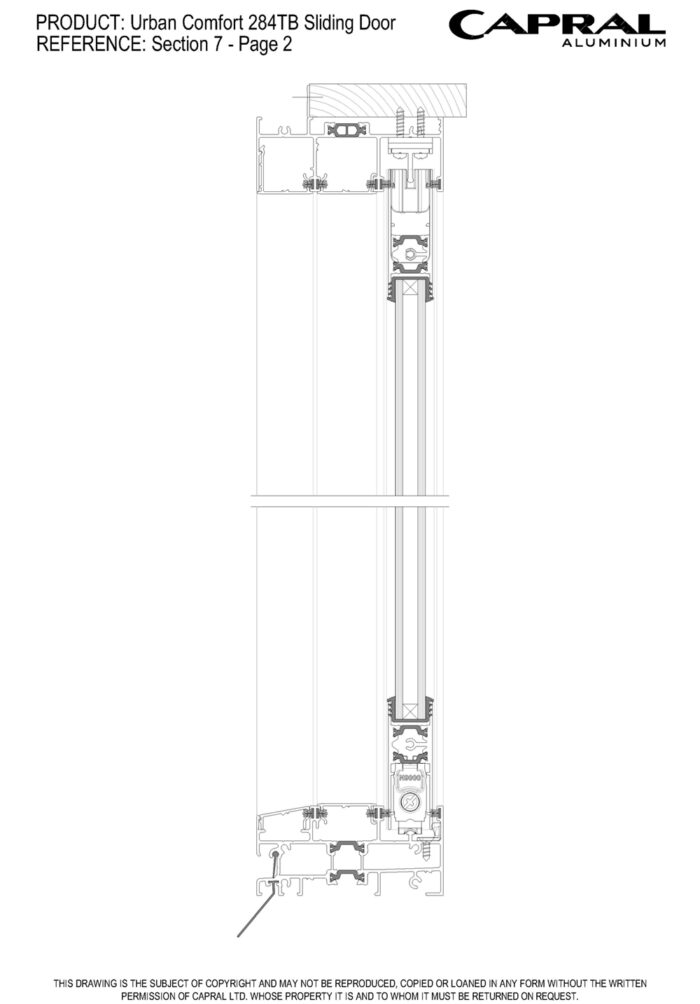

    Standard 100

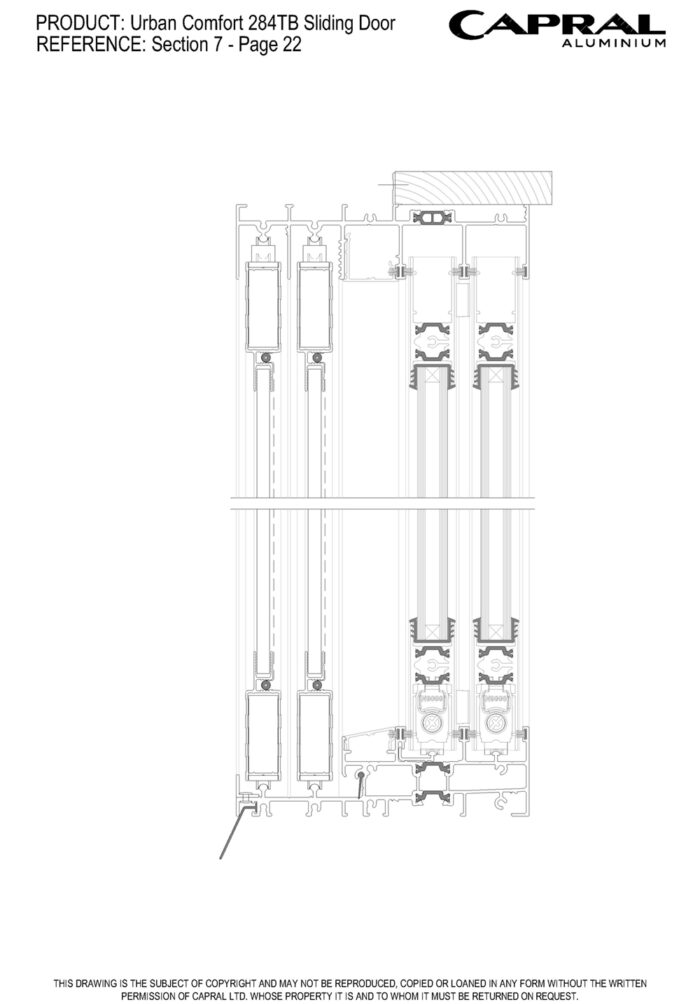

    Integrated Multistack Screen 156.5

    Maximum Product Performance

    SLS (Pa) 2000
    ULS (Pa) 4000
    WATER (Pa) 300

    SLS & ULS achievable using a panel retaining block system.

    Glazing Details

    Single Glazed 10 - 10
    Double Glazed 16 - 18

    Energy Performance

    Uw Range 2.00 - 3.10
    SHGC Range 0.30 - 0.63
    Tvw Range 0.34 - 0.66
    Air infiltration 0.48 - 0.48
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual UrbanComfort 284TB Sliding Door
    Wall Charts
    Extrusion Wall Chart Capral Screening
    Extrusion Wall Chart Urban Comfort Windows & Doors
    CAD Files
    CAD Files Urban Comfort 284TB Sliding Door
    CAD Files Capral Screening
    CAD Wall Chart Urban Comfort Windows and Doors
    Bulletins
    J1003 - Urban Comfort 284TB – Thermal Residential Range
    Other
    Capral Urban Comfort 284TB Sliding Door Brochure
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
