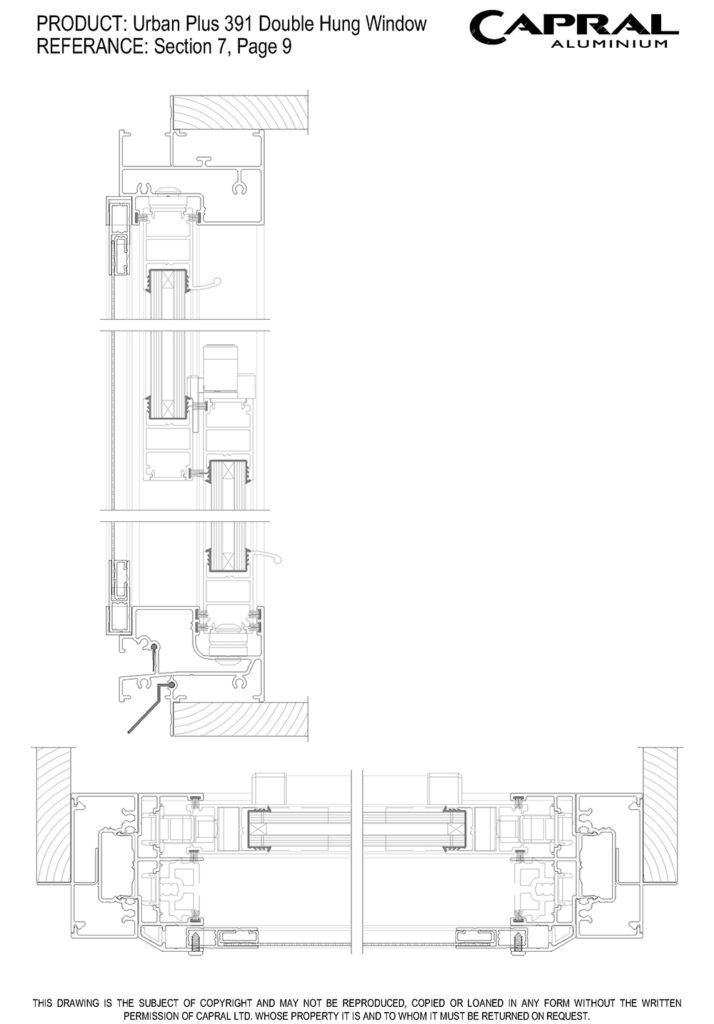

Urban Plus 391 Double Hung Window
The Urban Plus Double Hung window features a substantial outer frame allowing for large configurations with a modern architectural aesthetic. Ideal for high-end homes and architectural applications.
Certified
Rated
Tested
Key features
- Premium quality 76mm architectural framing system

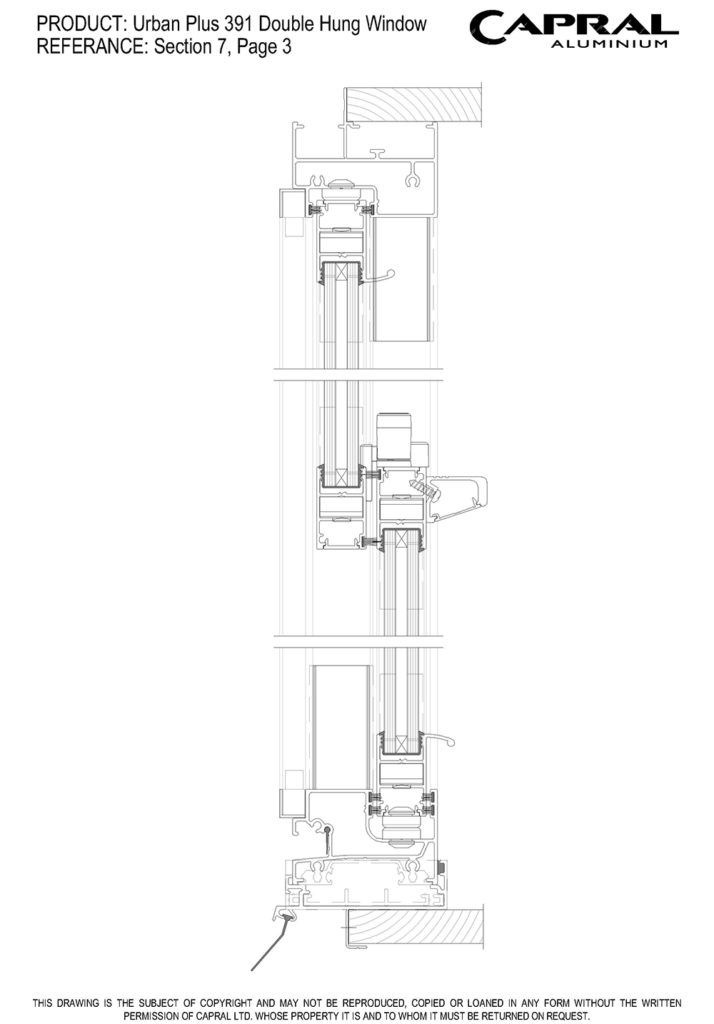

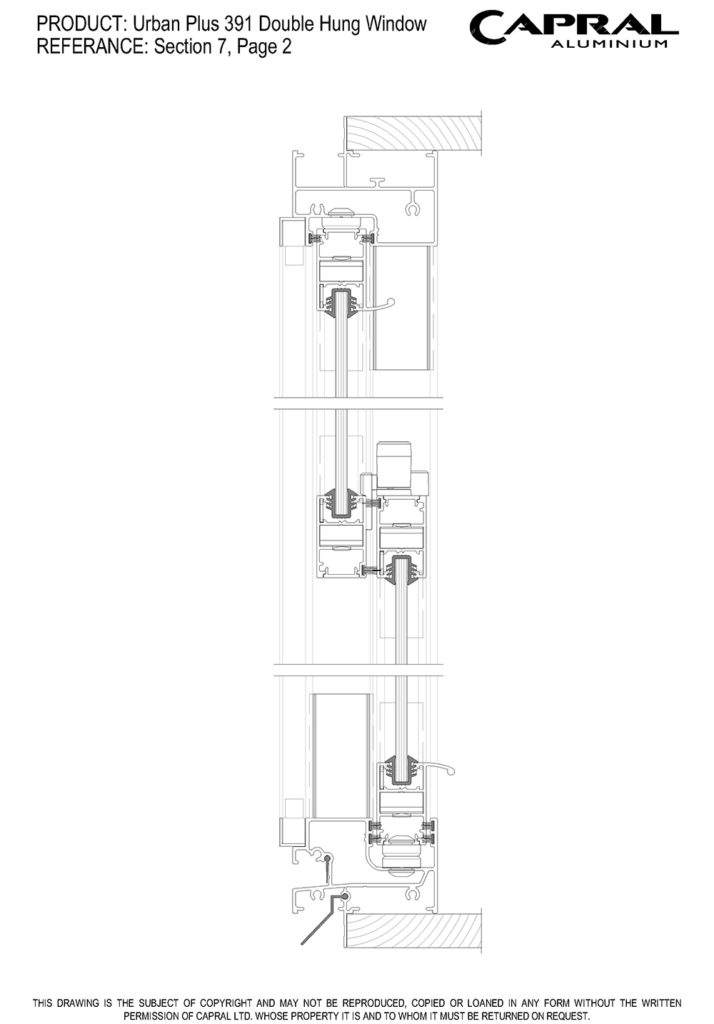

- Large capacity single and double glazing options
- Height adjustable sash panels
- AGS 300/325 and 400/425 Narrowline compatible for seamless integration
- Compatible with the full range of Urban Plus window suites

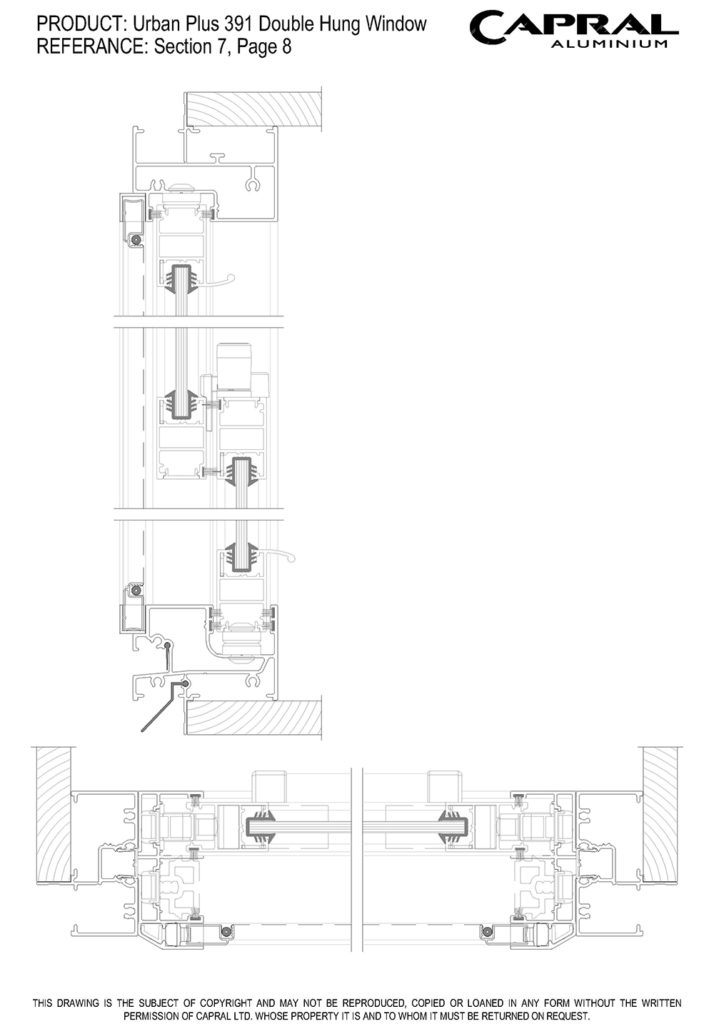

- Integrated insect and security screening options
- Exclusively designed components to improve the system’s performance and function

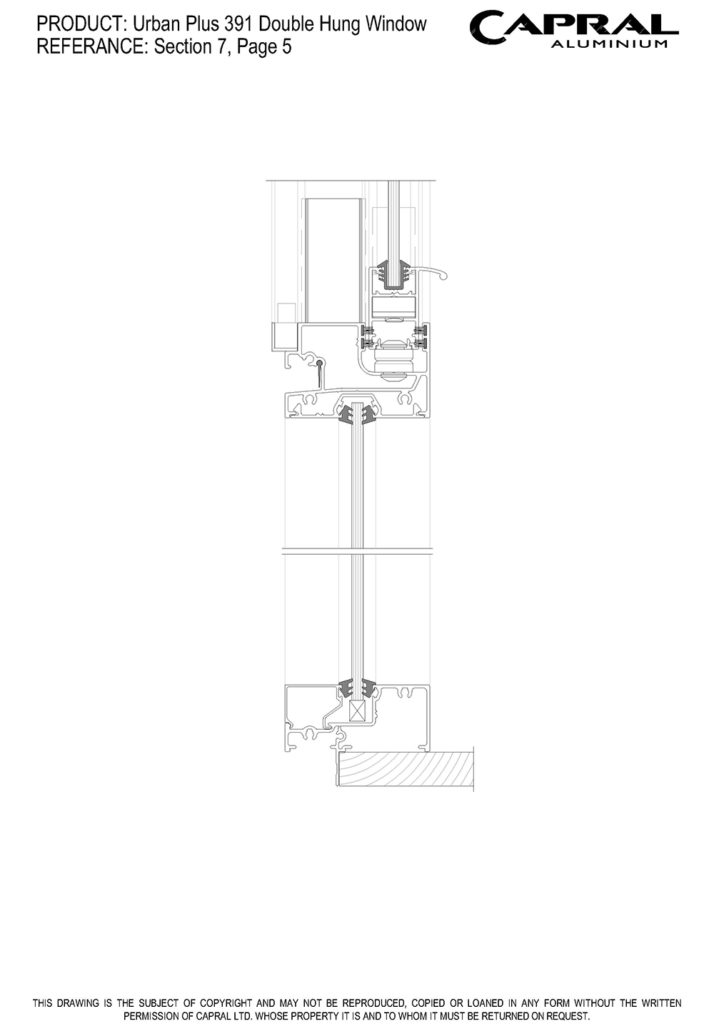

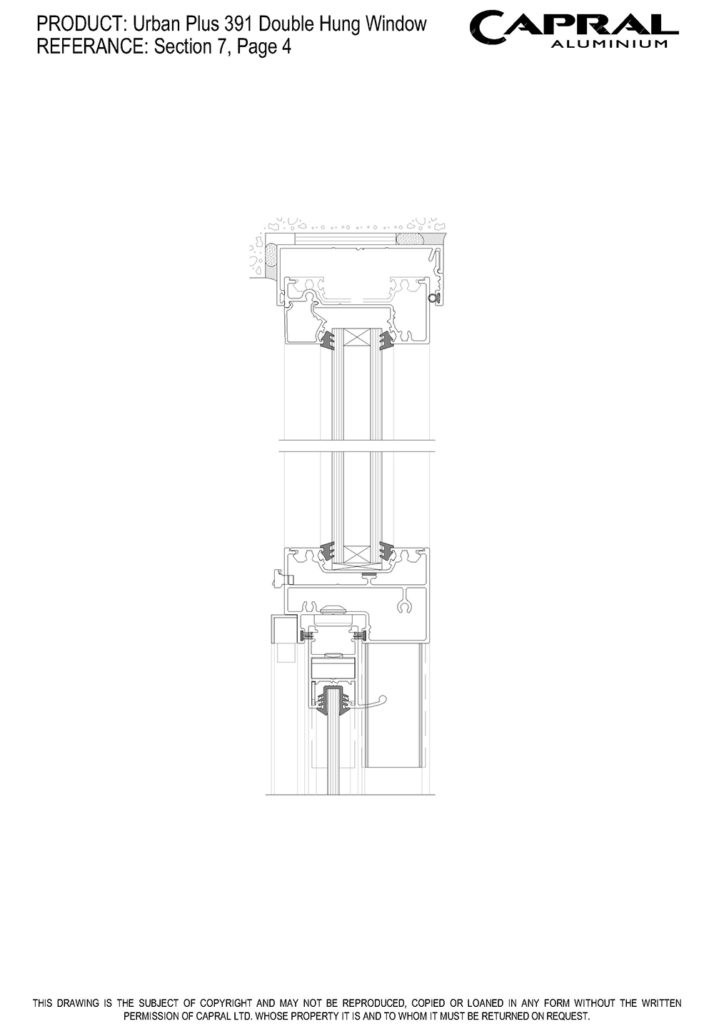

- Provision for High, Low and Side Lights
The Urban Plus Double Hung window features a substantial outer frame allowing for large configurations with a modern architectural aesthetic.

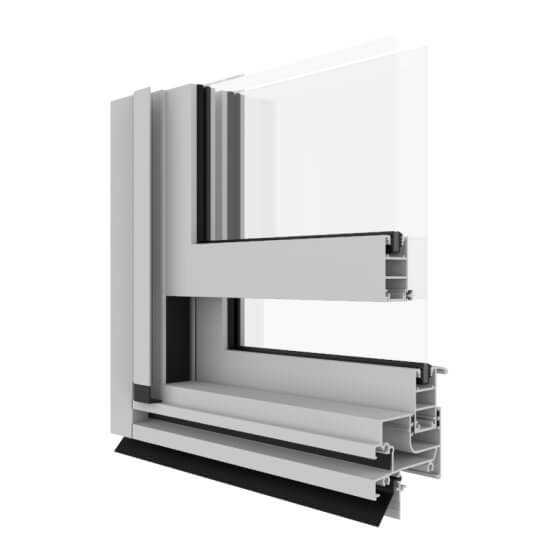

Bold mitred sash profiles sit within a clean square-cut frame, demonstrating simplicity and style, which are hallmarks of the Urban Plus range. High-quality operating hardware and a simple sash release system for easy cleaning from within the building make the Urban Plus Double Hung window ideal for elevated applications. This system incorporates integrated finger pulls and high-quality latch hardware to further enhance the functionality of this modern take on a classic window style.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
1200
Panel Width (mm)
1200
Panel Weight (kg)
20.4
Frame Dimensions (mm)
Frame depth (mm)
76
Acoustic Rating
Rw (C;Ctr)
35(-1;-3)
Maximum Product Performance
SLS (Pa)
2200
ULS (Pa)
3800
WATER (Pa)
350
Glazing Details
Single Glazed
4 - 10
Double Glazed
16 - 18
Energy Performance
Uw Range
3.48 - 6.39
SHGC Range
0.31 - 0.62
Tvw Range
0.27 - 0.63
Air infiltration
0.21 - 0.21
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Urban Plus 391 Double Hung Window
Wall Charts
Extrusion Wall Chart Capral Screening
Extrusion Wall Chart Urban Plus Windows
CAD Files
CAD Files Urban Plus 391 Double Hung Window
CAD Files Capral Screening
CAD Wall Chart Urban Plus Windows & Doors
Bulletins
PB429 - 391 & 991 Double Hung Components Update
PB305 - Urban Plus to AGS Couplers
PB298 - Universal Head Capping
PB281 - Urban Plus Designer Residential 391 Double Hung Window
Other
Capral Urban Plus 391 Double Hung Window Brochure
Specification Urban Plus 391 Double Hung Window
Capral Installation Details
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
Compatible Products

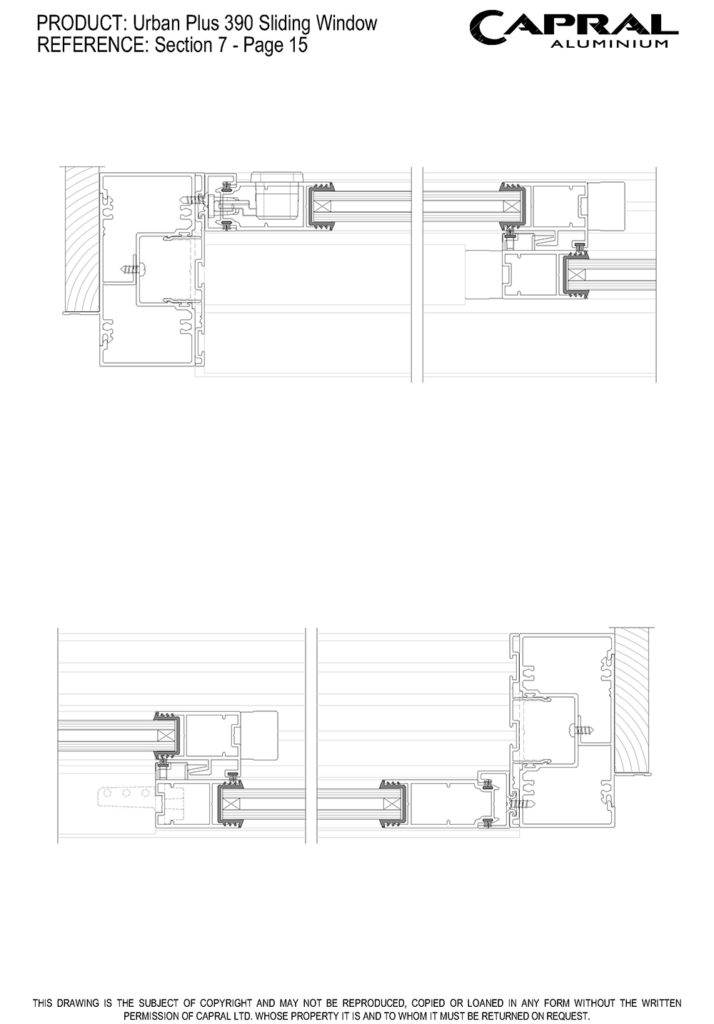

Urban Plus 390 Sliding WindowThe Urban Plus Sliding window delivers contemporary styling, strength, and performance, making it an ideal solution for high-end architectural applications.
