    Home Our Systems Windows Awning Urban Plus 392 Awning Window

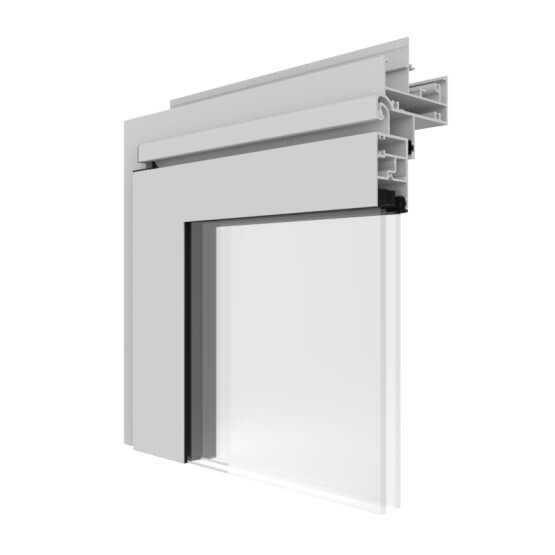

    Capral's Urban Plus 392 Awning Window Corner Image.
    Residential

    Urban Plus 392 Awning Window

    The Urban Plus Awning window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    BAL 40
    Tested
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features
    • Accepts double glazing up to 26mm alongside standard single glazing options
    • Compatible with the full range of Urban Plus window suites
    • Custom designed hardware optionsnAGS 300/325 and 400/425 Narrowline compatible for seamless integration
    • Incorporates an integrated hook hinge at the head for strength
    • Optional Caprice side latches to ensure security and performance on large sashes
    • Integrated insect and security screening options for a modern, tidy aesthetic

    The Urban Plus Awning window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
    The Urban Plus Awning window takes a traditional and popular window style and brings it into the 21st century with considered design solutions for screening, operation, drainage and aesthetics. The Urban Plus Awning window is an ideal choice for high-end architectural applications.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2100
    Panel Width (mm) 2100
    Panel Weight (kg) 106
    Panel Area (m2) 1.9

    Frame Dimensions (mm)

    Frame depth (mm) 76

    Acoustic Rating

    Rw (C;Ctr) 37(-1;-2)

    Maximum Product Performance

    SLS (Pa) 1900
    ULS (Pa) 4600
    WATER (Pa) 1200

    Maximum sash height and width are interdependent. The overall sash size cannot exceed an area of 1.9m.

    Glazing Details

    Single Glazed 4 - 14
    Double Glazed 12 - 26

    Energy Performance

    Uw Range 4.13 - 6.76
    SHGC Range 0.30 - 0.55
    Tvw Range 0.21 - 0.52
    Air infiltration 0.04 - 0.04
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Urban Plus 392 Awning & Casement Window
    Wall Charts
    Extrusion Wall Chart Capral Screening
    Extrusion Wall Chart Urban Plus Windows
    CAD Files
    CAD Files Urban Plus 392 Awning & Casement Window
    CAD Files Capral Screening
    CAD Wall Chart Urban Plus Windows & Doors
    Bulletins
    PB305 - Urban Plus to AGS Couplers
    PB298 - Universal Head Capping
    PB282 Urban Plus Designer Residential 392 Awning/Casement Window_210801
    Other
    Capral Urban Plus 392 Awning Casement Window Brochure Specification Urban Plus 392 Awning Casement Window Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
