Urban Plus 392 Casement Window

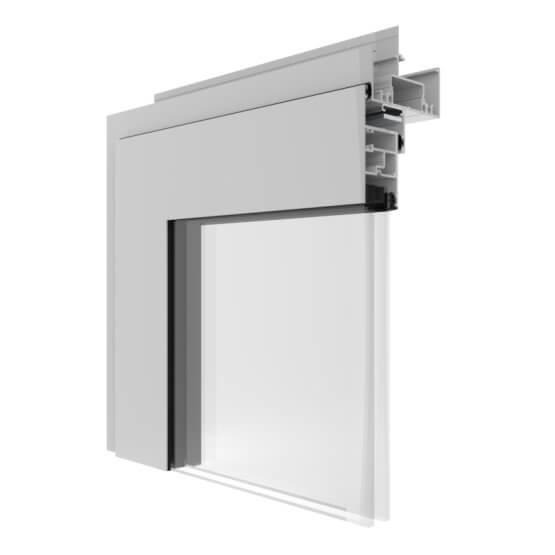

The Urban Plus Casement window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
Certified
Tested
Key features
- Accepts double glazing up to 26mm alongside standard single glazing options
- Compatible with the full range of Urban Plus window suites
- Custom designed hardware optionsnAGS 300/325 and 400/425 Narrowline compatible for seamless integration
- Caprice latches to ensure security and performance on large sashes

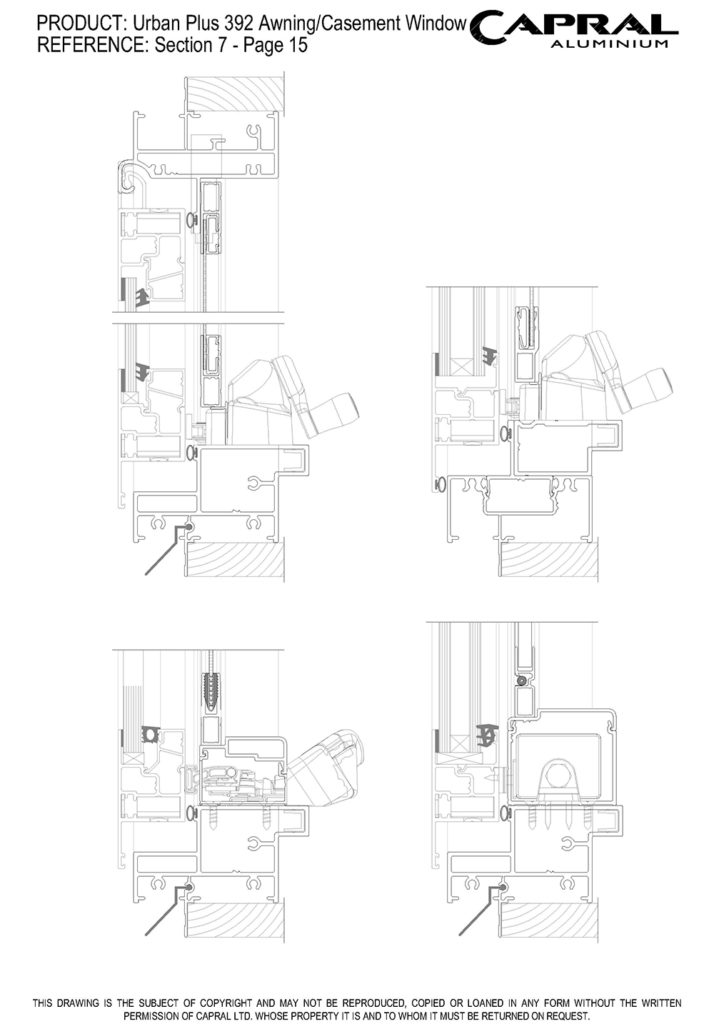

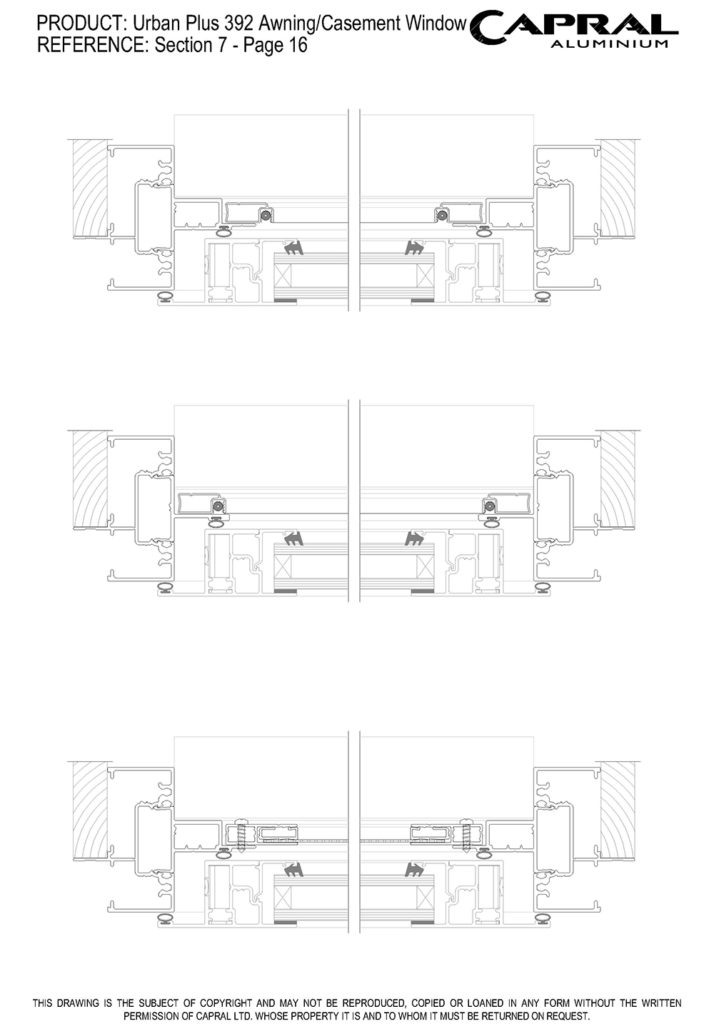

- Integrated insect and security screening options for a modern, tidy aesthetic
The Urban Plus Casement window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
The Urban Plus Casement window takes a traditional and popular window style and brings it into the 21st century with considered design solutions for screening, operation, drainage and aesthetics. The Urban Plus Casement window is an ideal choice for high-end architectural applications.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2100
Panel Width (mm)
900
Panel Weight (kg)
54.5
Panel Area (m2)
1.9
Frame Dimensions (mm)
Frame depth (mm)
76
Maximum Product Performance
SLS (Pa)
1700
ULS (Pa)
3500
WATER (Pa)
900
Glazing Details
Single Glazed
4 - 14
Double Glazed
12 - 26
Energy Performance
Uw Range
4.13 - 6.76
SHGC Range
0.30 - 0.55
Tvw Range
0.21 - 0.52
Air infiltration
0.04 - 0.04
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Urban Plus 392 Awning & Casement Window
Wall Charts
Extrusion Wall Chart Urban Plus Windows
CAD Files
CAD Files Urban Plus 392 Awning & Casement Window
CAD Wall Chart Urban Plus Windows & Doors
Bulletins
PB298 - Universal Head Capping
PB282 Urban Plus Designer Residential 392 Awning/Casement Window_210801
Other
Capral Urban Plus 392 Awning Casement Window Brochure
Specification Urban Plus 392 Awning Casement Window
Capral Installation Details
NATSPEC Branded Work Section
Environmental Protection Declaration (EPDs)
