Urban Plus 393 Louvre Window
Designed to deliver a stylish natural ventilation solution, the Urban Plus Louvre window gives you complete control over the airflow in your living space.
Certified
Rated
Tested

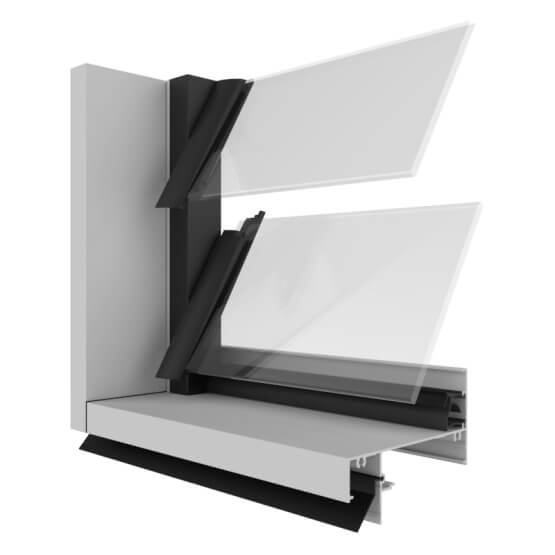

Key features
- 125mm frame allows full opening of louvre blades whilst maintaining screening capability
- Unique Fixed Light Adaptor System
- Integrated Flyscreen / Security screening options
- Full range of galleries including manual and automatic variants
- A range of glass and aluminium flat or elliptical blades available
- Custom designed hardware ensures the system is easy to fabricate and is high performing
- Compatible with the full range of Ventus Louvre Galleries
Designed to deliver a stylish natural ventilation solution, the Urban Plus Louvre window gives you complete control over the airflow in your living space. Adjust the angle of the blades to control airflow within your home.
Available in both manual and automatic variants, Urban Plus Louvre comes in a range of sizes and styles. With multiple blade options, high-performance handle styles and the ability to install an integrated flyscreen or security screen, creating a window that perfectly complements your home’s design requirements has never been easier.
As a part of the Urban Plus family, the Louvre window is compatible with the full range of Urban Plus window and door suites.
Details
Product Specs
Configurations

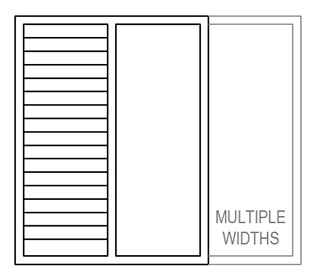

Arrangements
Maximum Product Sizes
Panel Height (mm)
2472
Panel Width (mm)
900
Maximum sizes are based on 152mm louvre blade, where 102mm louvre blade is used maximum height is 2532mm

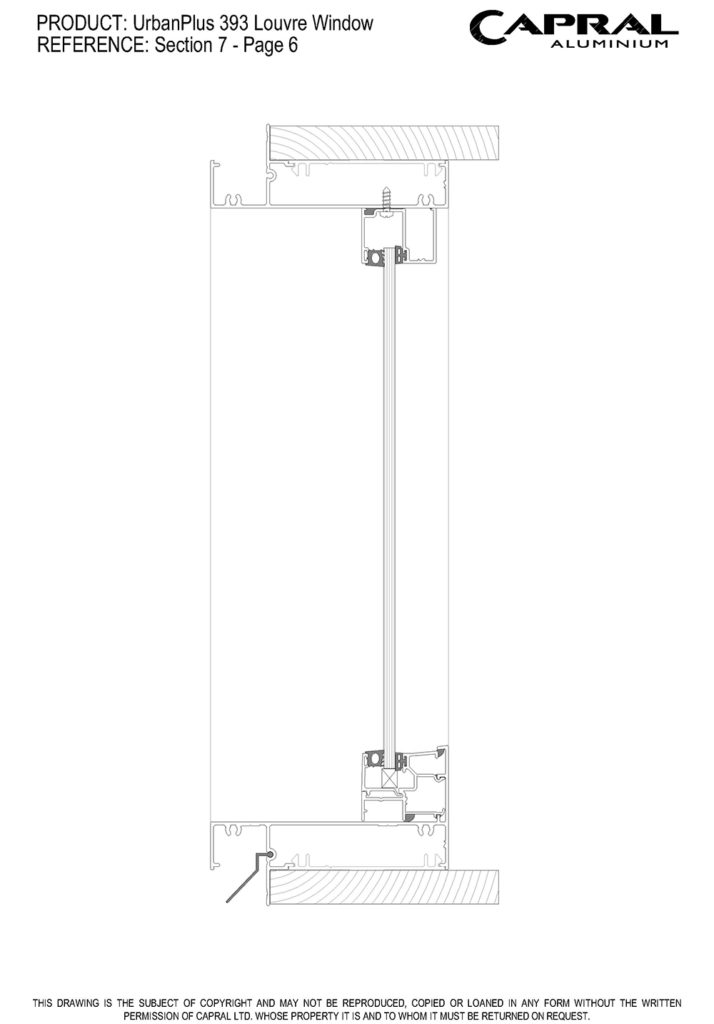

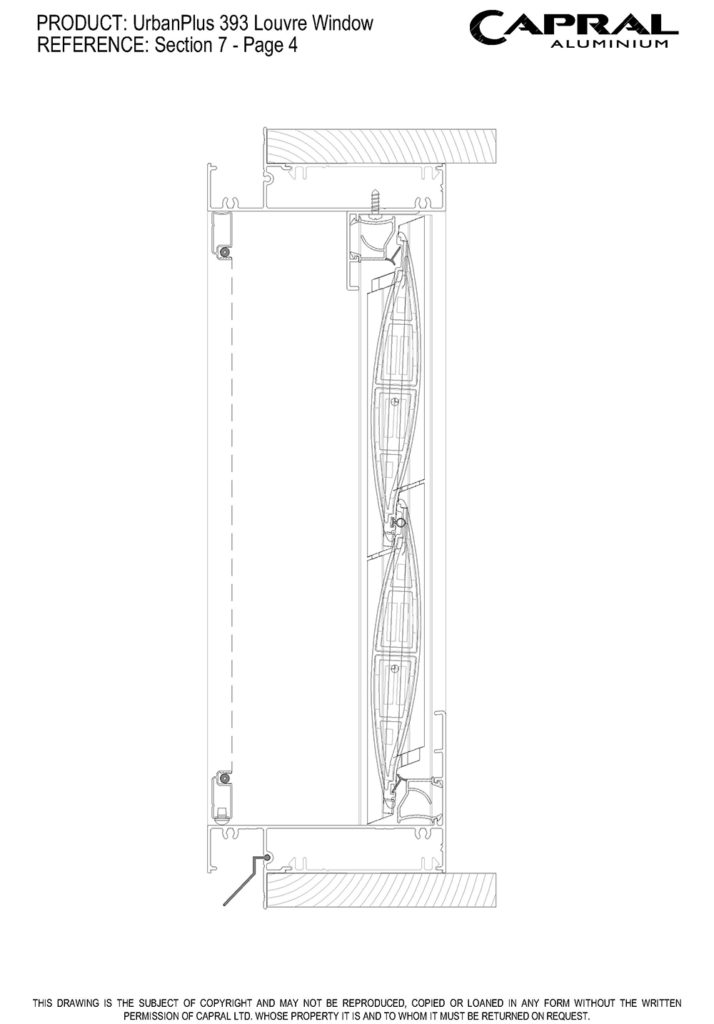

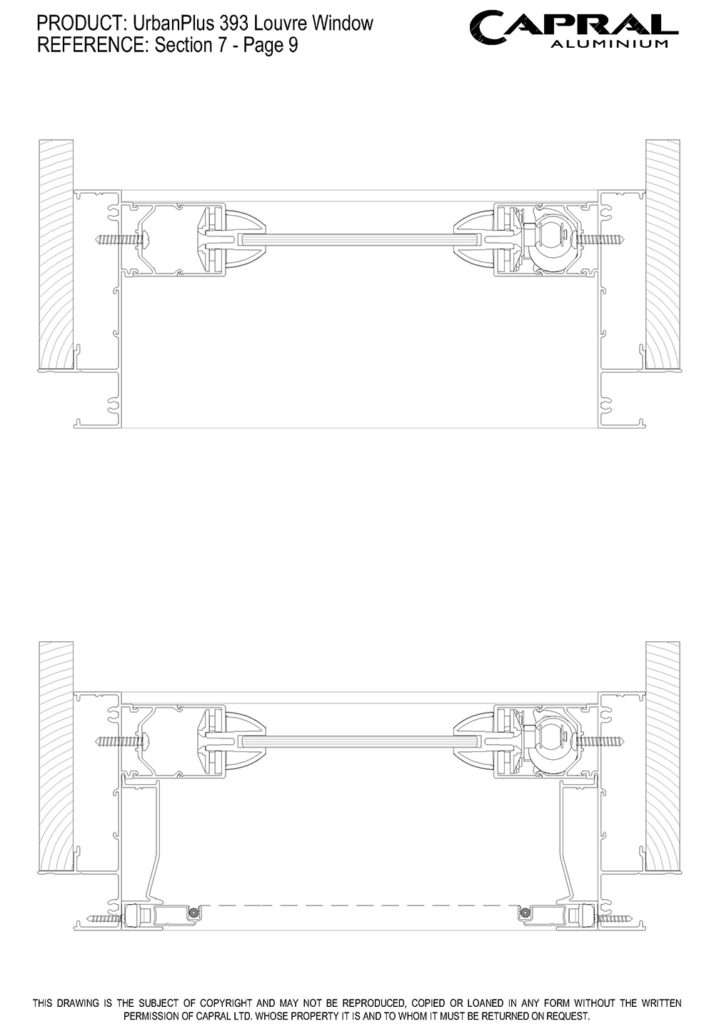

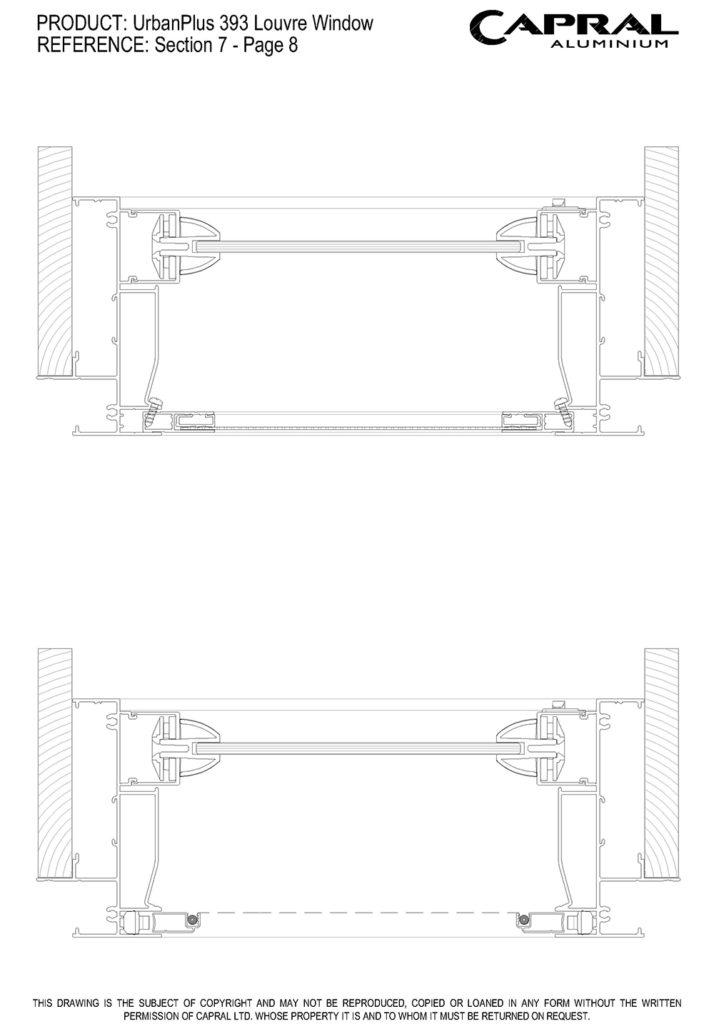

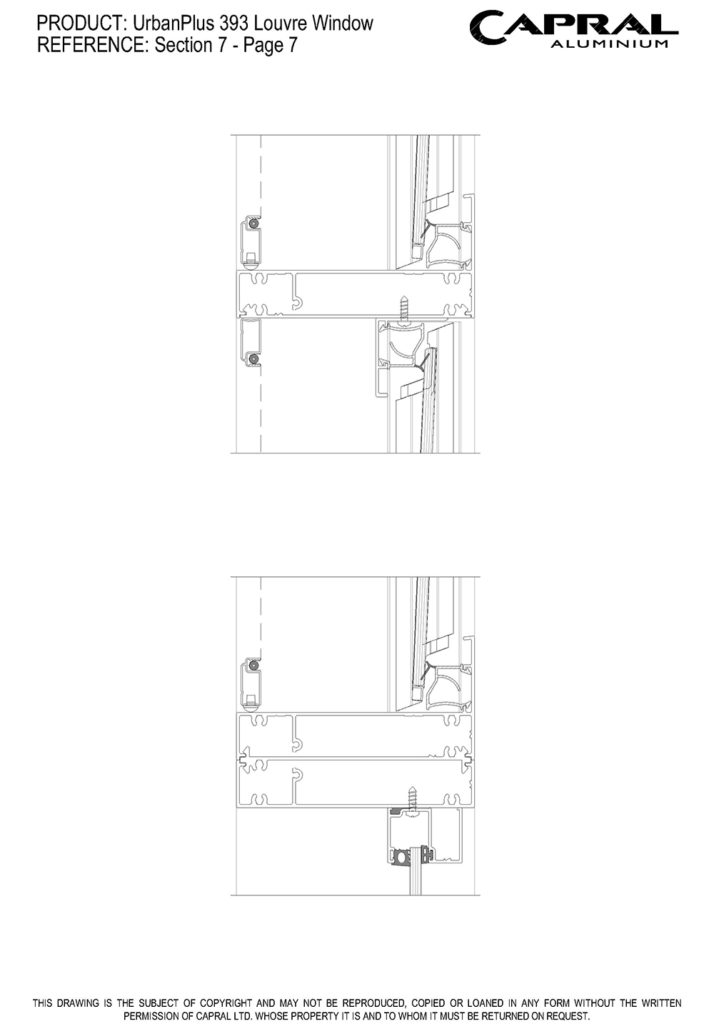

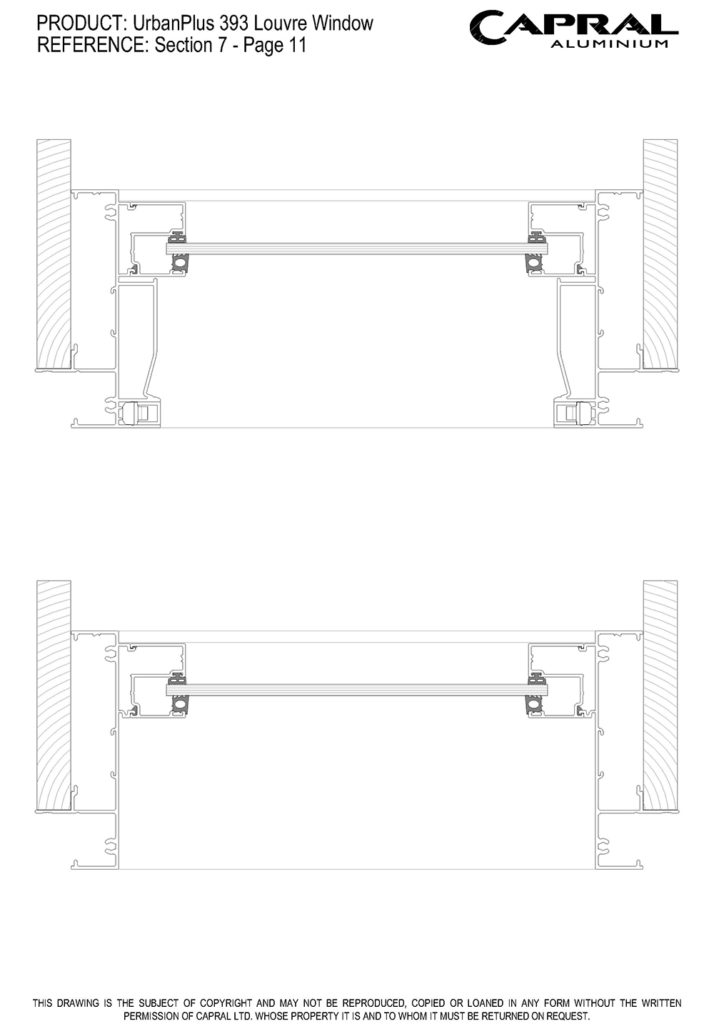

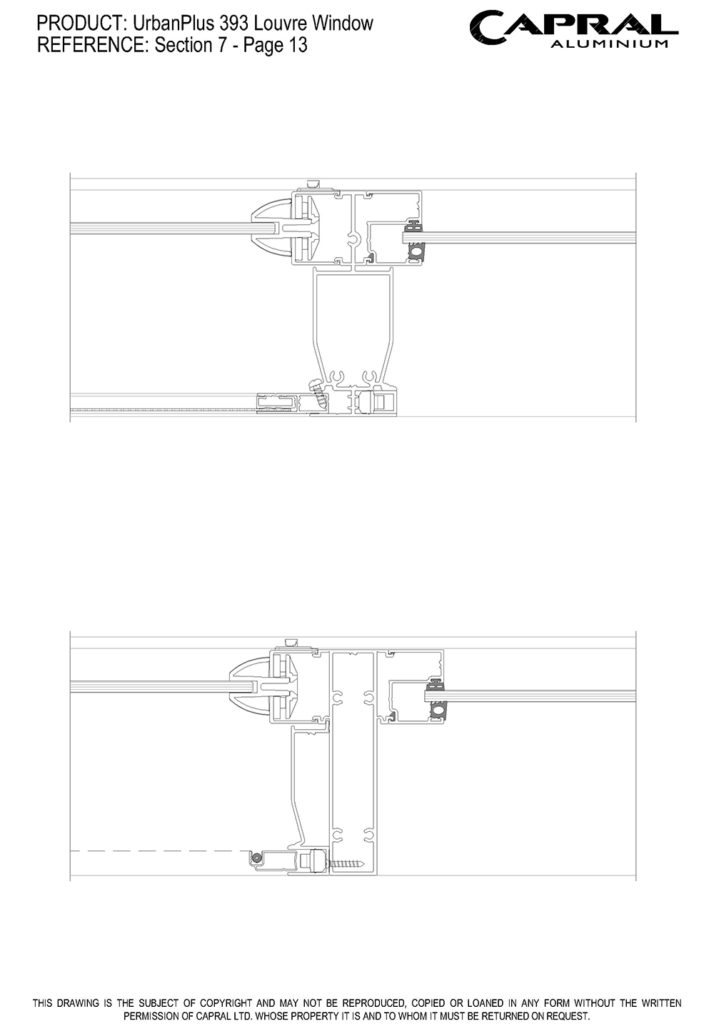

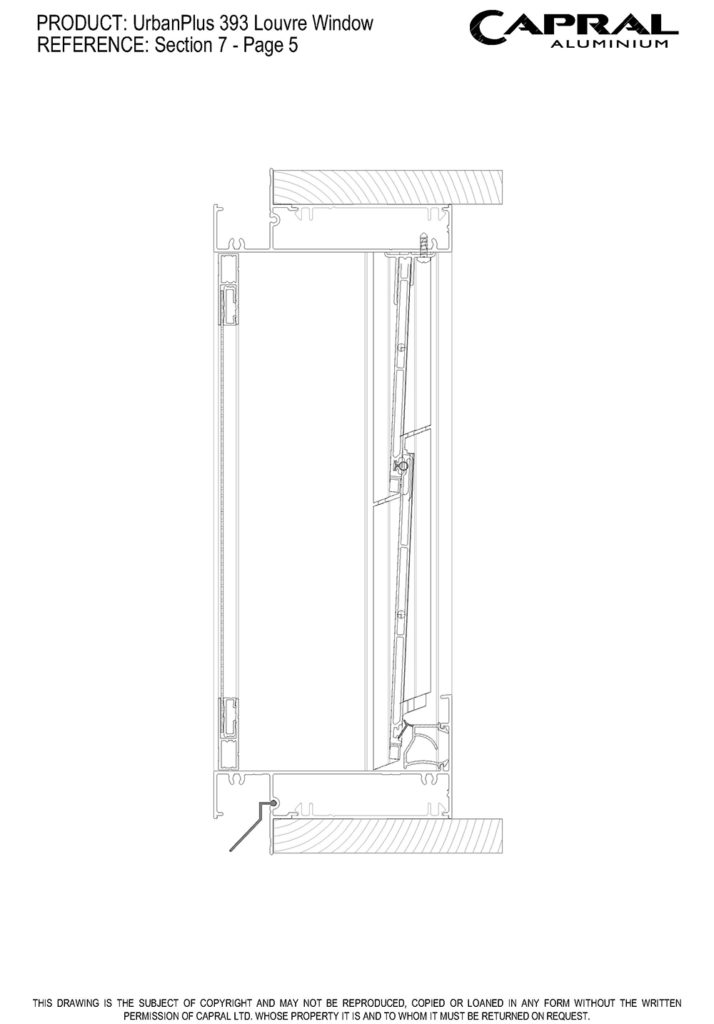

Frame Dimensions (mm)
Frame depth (mm)
125
Acoustic Rating
Rw (C;Ctr)
24(-1;-2)
Maximum Product Performance
SLS (Pa)
2600
ULS (Pa)
8000
WATER (Pa)
300
Fixed light water performance is 600Pa
Glazing Details
Single Glazed
6 - 6
152mm & 102mm Galleries available including Elliptical and Flat Aluminium louvre blade options
Sill Options
Option 1
65 Std Sill
Option 2
85
High Performance Sill
High Performance Sill
Energy Performance
Uw Range
4.62 - 6.08
SHGC Range
0.33 - 0.57
Tvw Range
0.27 - 0.60
Air infiltration
1.85 - 1.85
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual Urban Plus 393 Louvre Window
Wall Charts
Extrusion Wall Chart Capral Screening
Extrusion Wall Chart UrbanPlus Windows
CAD Files
CAD Files Urban Plus 393 Louvre Window
CAD Files Capral Screening
CAD Wall Chart UrbanPlus Windows and Doors
Bulletins
PBJ1042 - Urban Plus 393 Louvre – Breezeway Gallery Adaptor
PB368 - Louvre Security Bar and Channel
PB305 - Urban Plus to AGS Couplers
PB298 - Universal Head Capping
PB263 - Urban Plus 393 Louvre Commercial Louvre Adaptor Release
Other
NATSPEC Branded Work SectionCompatible Products
Urban Plus 390 Sliding WindowThe Urban Plus Sliding window delivers contemporary styling, strength, and performance, making it an ideal solution for high-end architectural applications.
Urban Plus 391 Double Hung WindowThe Urban Plus Double Hung window features a substantial outer frame allowing for large configurations with a modern architectural aesthetic. Ideal for high-end homes and architectural applications.
Urban Plus 392 Awning WindowThe Urban Plus Awning window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
Urban Plus 392 Casement WindowThe Urban Plus Casement window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
Urban Plus 394 Sliding DoorThe Urban Plus sliding door spans wide openings to maximise views. Available in sliding and multi-stack configurations the Urban Plus Sliding is the perfect door for a high end residential project or architectrually deisgned home.
Urban Plus 395 Folding WindowThe Urban Plus Folding window delivers seamless operation, classic style and excellent flexibility for residential or commercial applications. Incorporating an innovative bottom rolling mechanism ensuring that even double glazed panels glide effortlessly.
Urban Plus 396 Folding DoorThe Urban Plus Folding door is a perfect solution to open your living spaces to the great outdoors. With clean bold styling and stainless-steel hardware the Urban Plus Folding Door is sure to deliver satisfaction for generations
Urban Plus 397 Hinged DoorThe Urban Plus Hinged door system features smooth flat panel profiles with an integrated bead to achieve a modern yet classic appearance.
Urban Plus Fixed Light Window (76mm)The Urban Plus Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of Urban Plus operable windows and doors.
Urban Plus Fixed Light Window (125mm)The Urban Plus Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of Urban Plus operable windows and doors.
More products from this range
Urban Plus 392 Awning WindowThe Urban Plus Awning window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
Urban Plus Fixed Light Window (125mm)The Urban Plus Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of Urban Plus operable windows and doors.
Urban Plus 391 Double Hung WindowThe Urban Plus Double Hung window features a substantial outer frame allowing for large configurations with a modern architectural aesthetic. Ideal for high-end homes and architectural applications.
Urban Plus 396 Folding DoorThe Urban Plus Folding door is a perfect solution to open your living spaces to the great outdoors. With clean bold styling and stainless-steel hardware the Urban Plus Folding Door is sure to deliver satisfaction for generations
Urban Plus 392 Casement WindowThe Urban Plus Casement window incorporates clean, flat sash profiles within a bold outer frame to deliver a modern aesthetic with excellent strength and performance characteristics.
Urban Plus Fixed Light Window (76mm)The Urban Plus Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of Urban Plus operable windows and doors.
Urban Plus 395 Folding WindowThe Urban Plus Folding window delivers seamless operation, classic style and excellent flexibility for residential or commercial applications. Incorporating an innovative bottom rolling mechanism ensuring that even double glazed panels glide effortlessly.
Urban Plus 397 Hinged DoorThe Urban Plus Hinged door system features smooth flat panel profiles with an integrated bead to achieve a modern yet classic appearance.
Not quite what you’re looking for? Consider...
AGS Commercial Louvre AdaptorThe AGS Commercial Louvre Adaptor gives you the flexibility you need to create a high-performance louvre window with a clean architectural finish.
Urban 283 Louvre WindowDesigned to deliver a stylish natural ventilation solution, the Urban Louvre window gives you complete control over the airflow in your living space.
Projects that use this system
St. Andrew’s Beach House

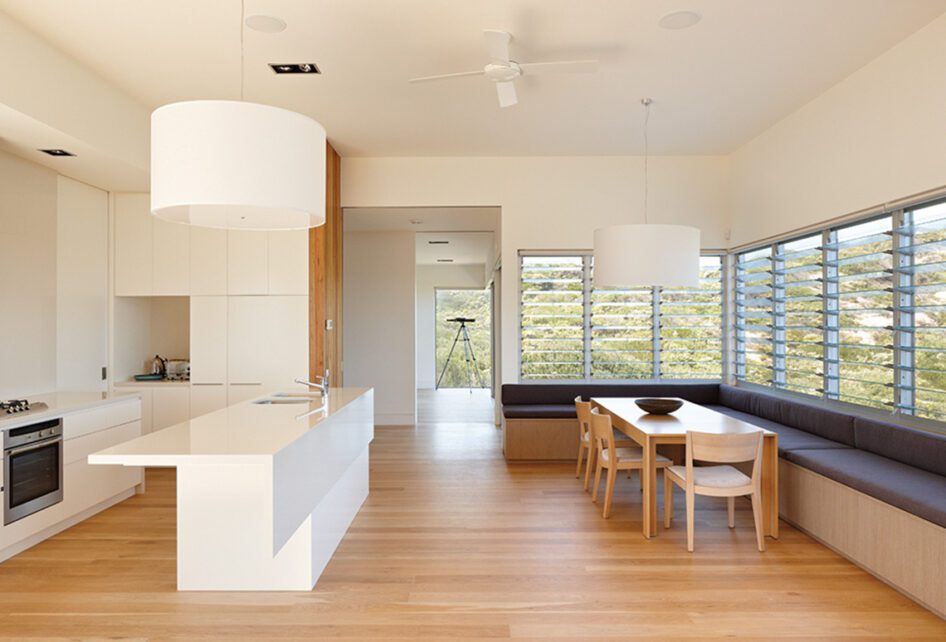

Nestled in the sand dunes of St Andrews Beach is an example of Perkins Architects’ unique and award-winning residential architecture.
