Residential

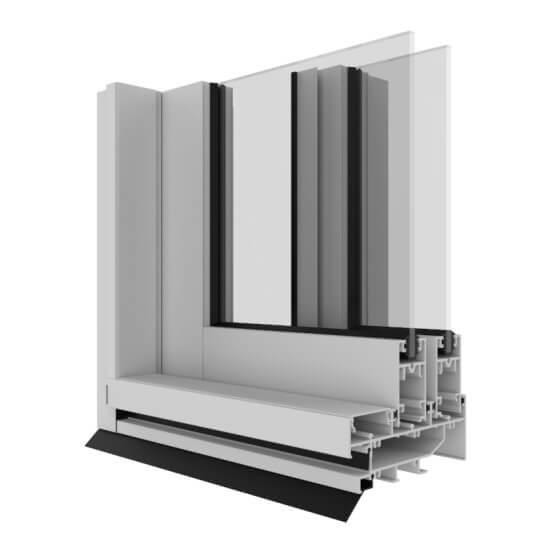

Urban Plus 394 Sliding Door
The Urban Plus sliding door spans wide openings to maximise views. Available in sliding and multi-stack configurations the Urban Plus Sliding is the perfect door for a high end residential project or architectrually deisgned home.
Certified
Rated
Tested
Key features
- Available as Standard or Multistack configurations with or without screen tracks.
- XO, OXO, XXO, OXXO, OXXXXO
- A variety of performacne sill option available
- Premium quality 125mm architectural framing systems
- Complementary hardware from the Caprio and Caprice ranges
- Single and Double glazing options.
- Ability to site or factory glaze.
- Unique sill tray design seamlessly connects main frame to screen tracks
- Linear Grate drain solution possible using aluminium or SS grates
- Integrated fixed light framing system
- Integrated screen tracks which easily accommodates Amplimesh security door or flyscreen door.
The Urban Plus sliding door will span wide openings up tp 12m wide and 2.7m high and is a perfect choice to maximise views. Available in sliding and multi-stack configurations various performance sill options to suit standard and exposed locations. Clean bold lines are hallmarks of this design and can be complemented with the elegant aesthetics of Caprio or Caprice hardware to create a defining feature within the home.
With single and double glazing options the Urban Plus Sliding Door offers flexibility to achieve stringent energy provisions and meet building code requirements across Australia.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
2200
Panel Weight (kg)
200
Panel width of 2200mm is achieved using a rail stiffener; without the rail stiffener maximum panel width is 1200mm
Frame Dimensions (mm)
Standard
125
Multistack with screens
194.5
Acoustic Rating
Rw (C;Ctr)
34(-1;-1)
Maximum Product Performance
SLS (Pa)
4000
ULS (Pa)
6200
WATER (Pa)
550
Glazing Details
Single Glazed
4 - 10
Double Glazed
18 - 24
Sill Options
Option 1
48.5 Std Sill
Option 2
25
Low Profile Sill
Low Profile Sill
Option 3
67
High Performance Sill
High Performance Sill
Energy Performance
Uw Range
2.86 - 6.16
SHGC Range
0.28 - 0.66
Tvw Range
0.30 - 0.69
Air infiltration
5 - 5

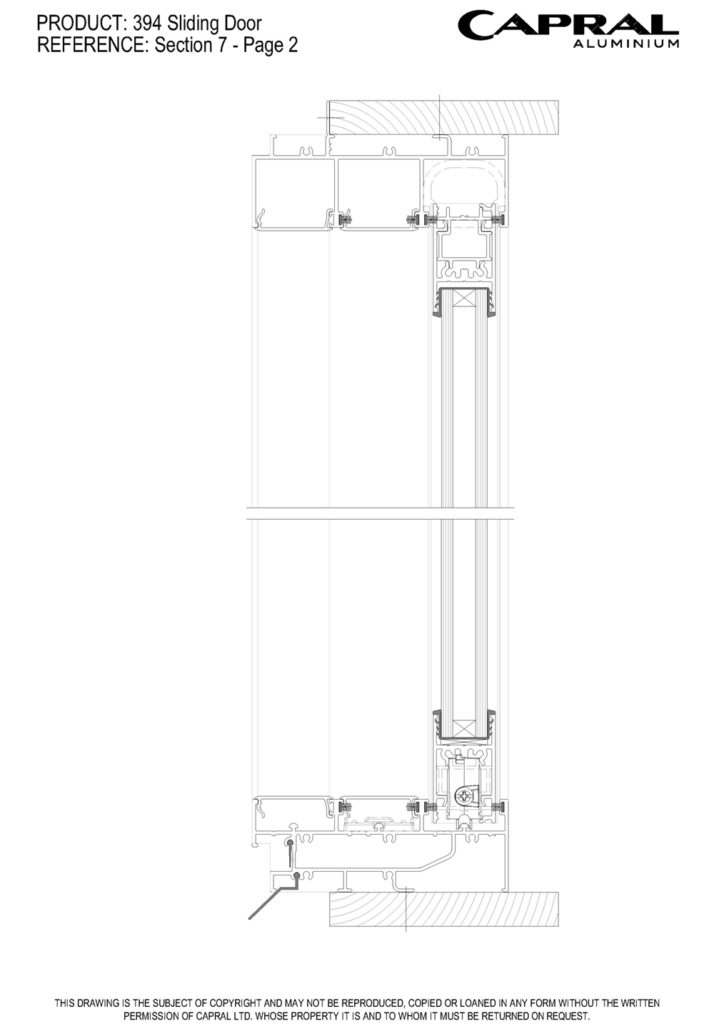

Sliding Panel (Ver)

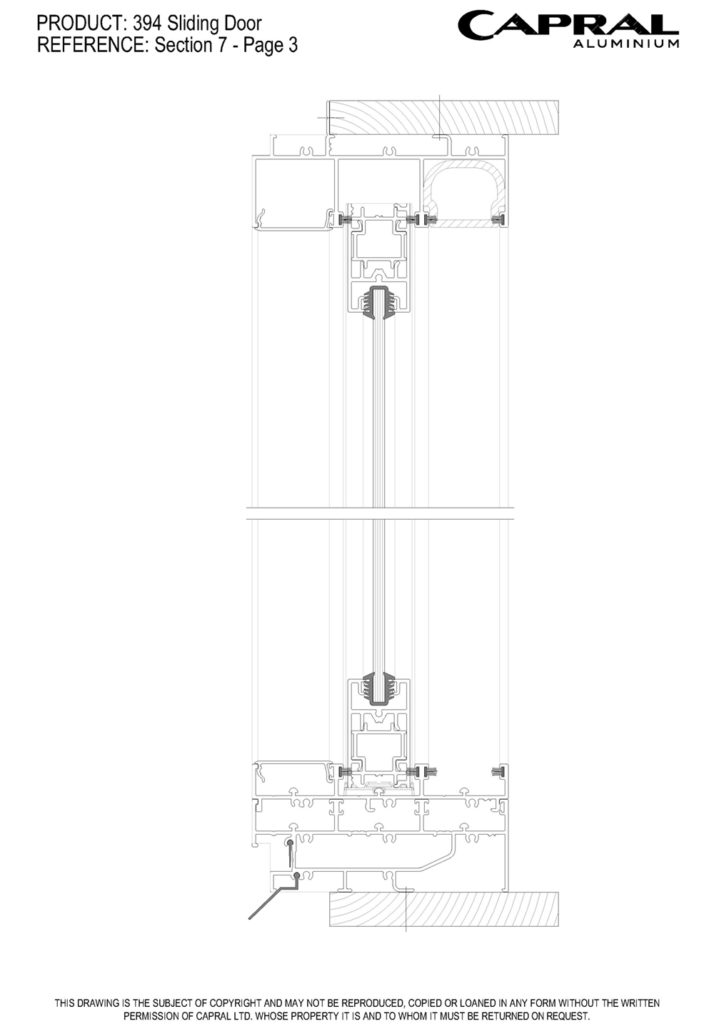

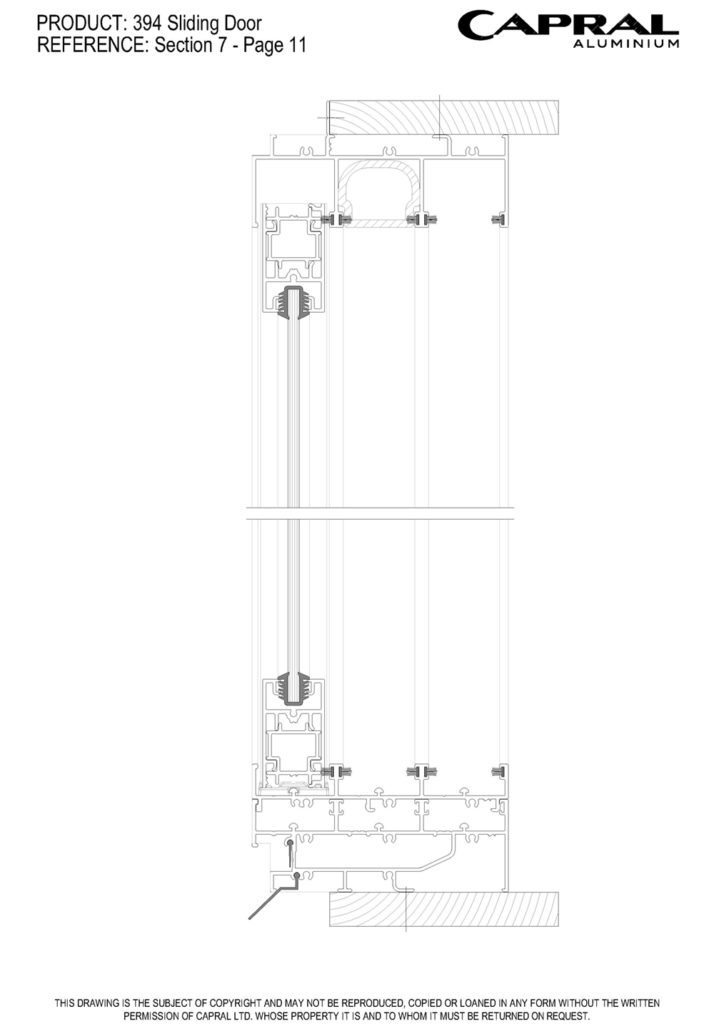

2 Tack Fixed Panel (Ver)

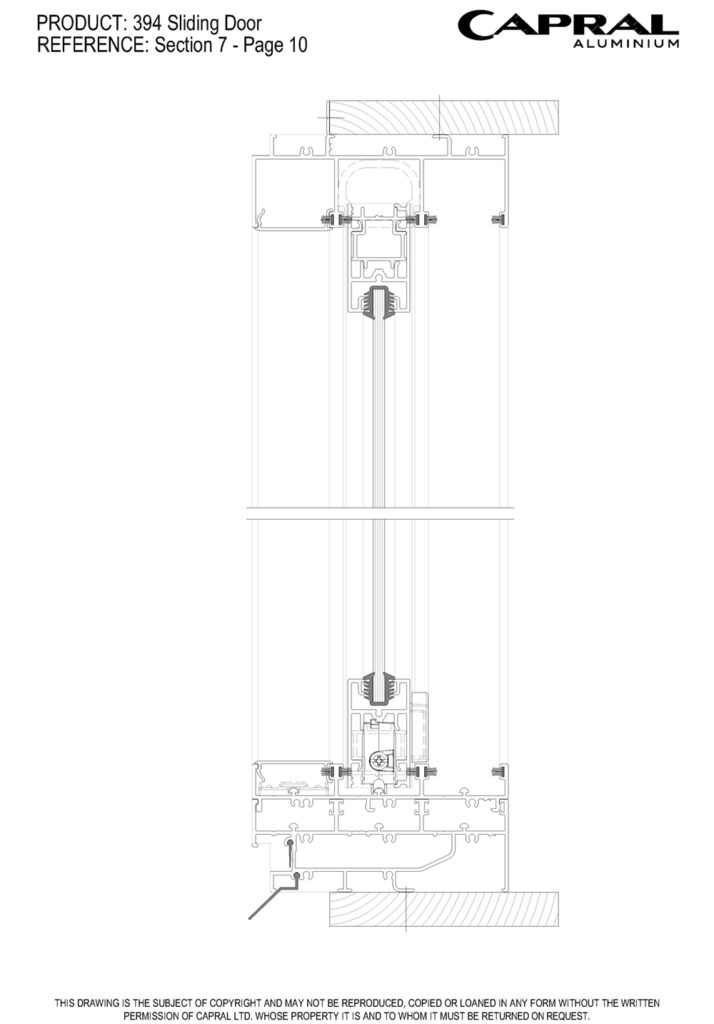

Multistack Middle Sliding Panel (Ver)
Multistack Fixed Panel (Ver)

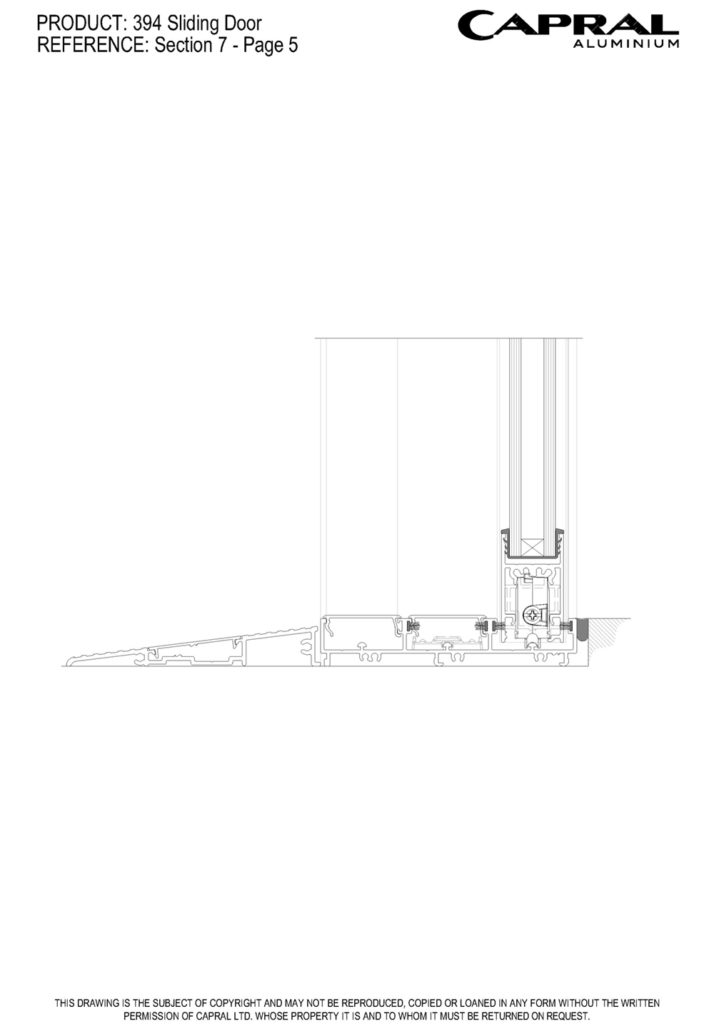

Low Profile Sill

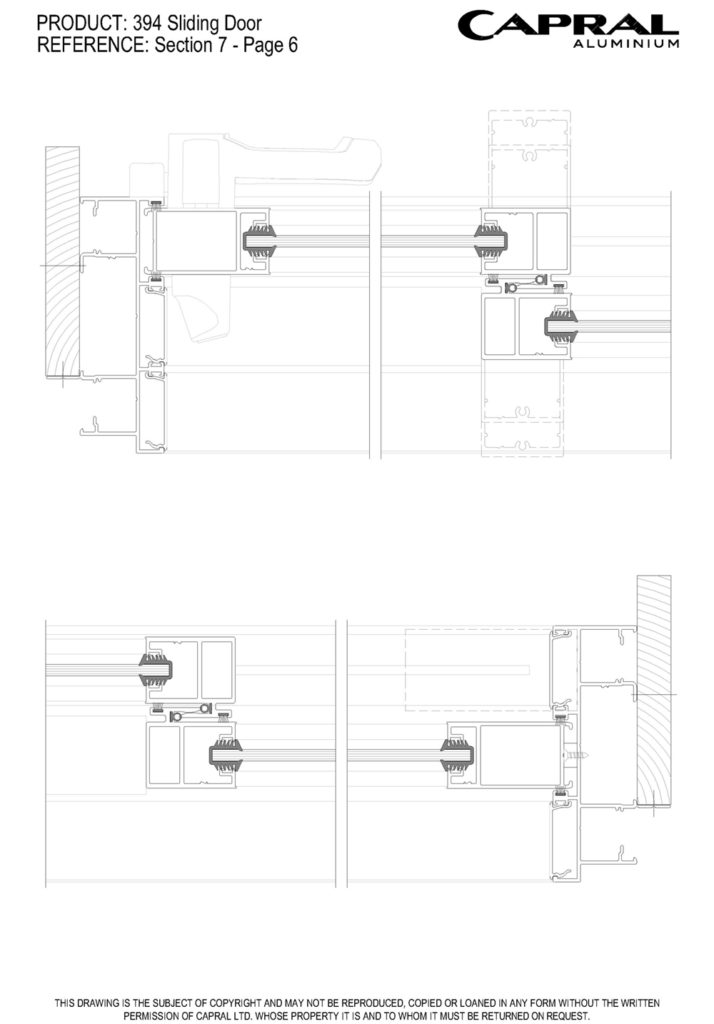

Mortice Stiles (Hor)

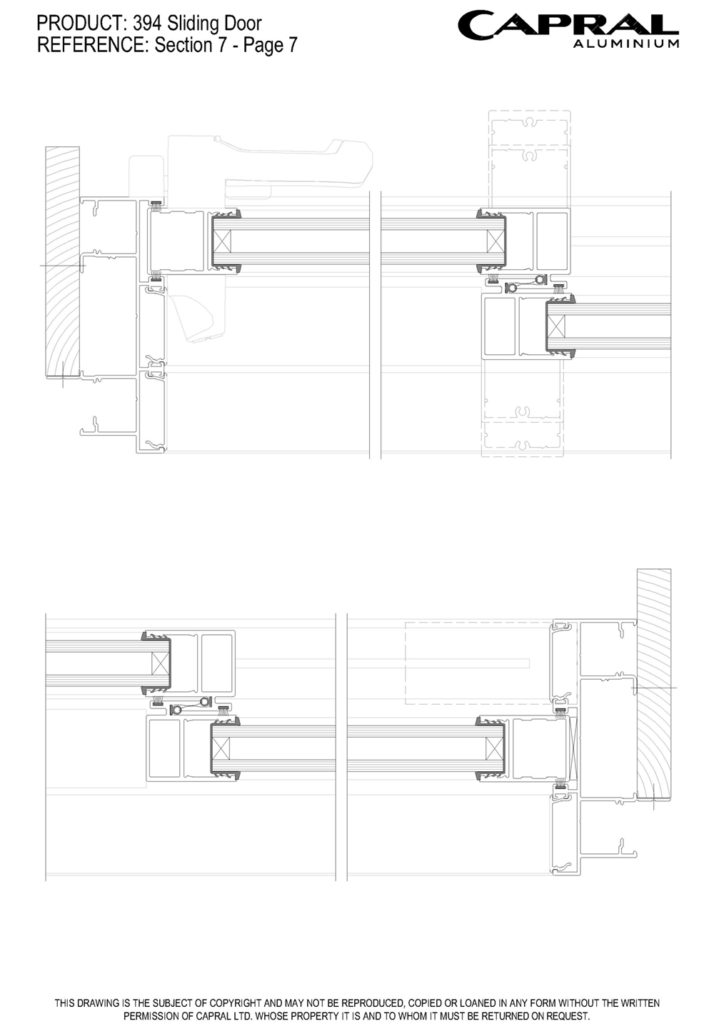

Lock Stiles (Hor)

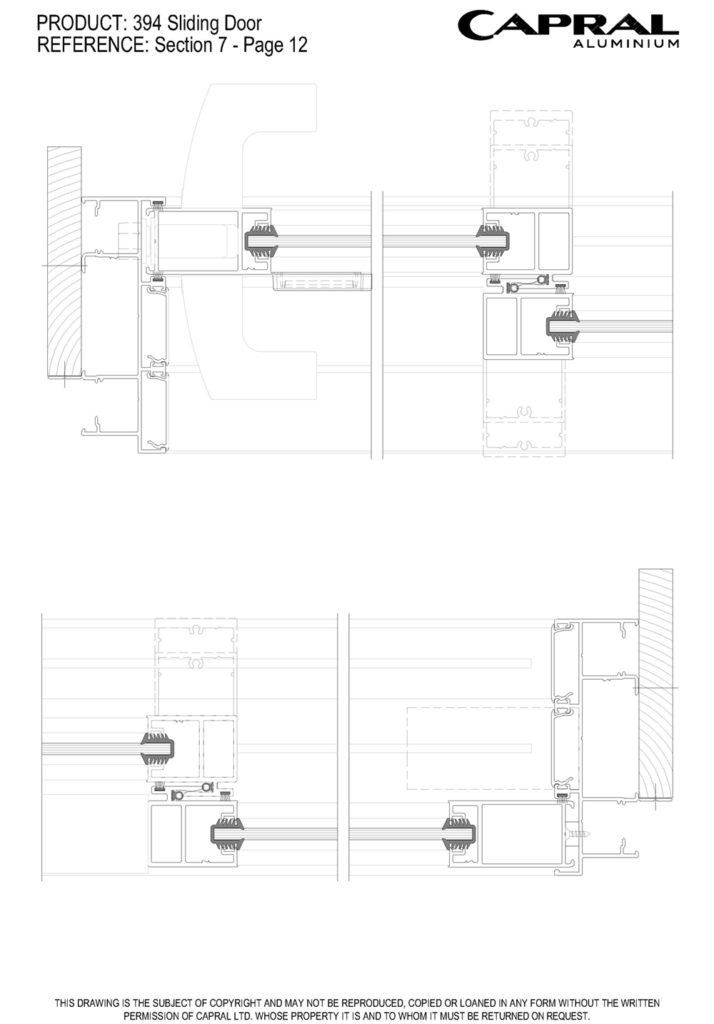

Multistack (Hor)

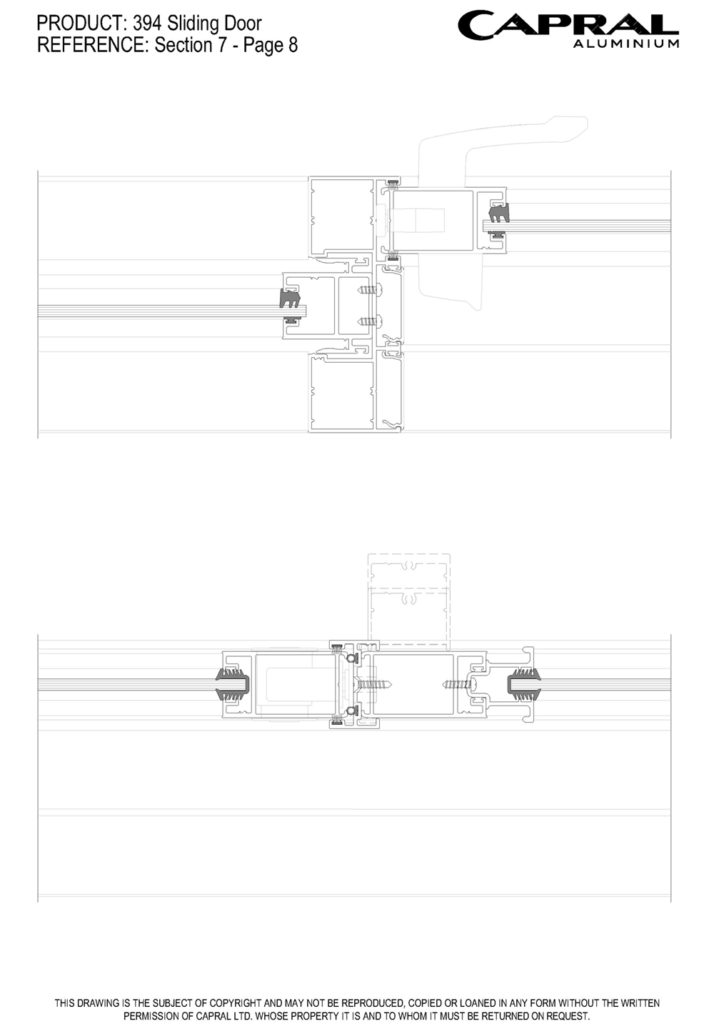

OXO & Meeting Stiles

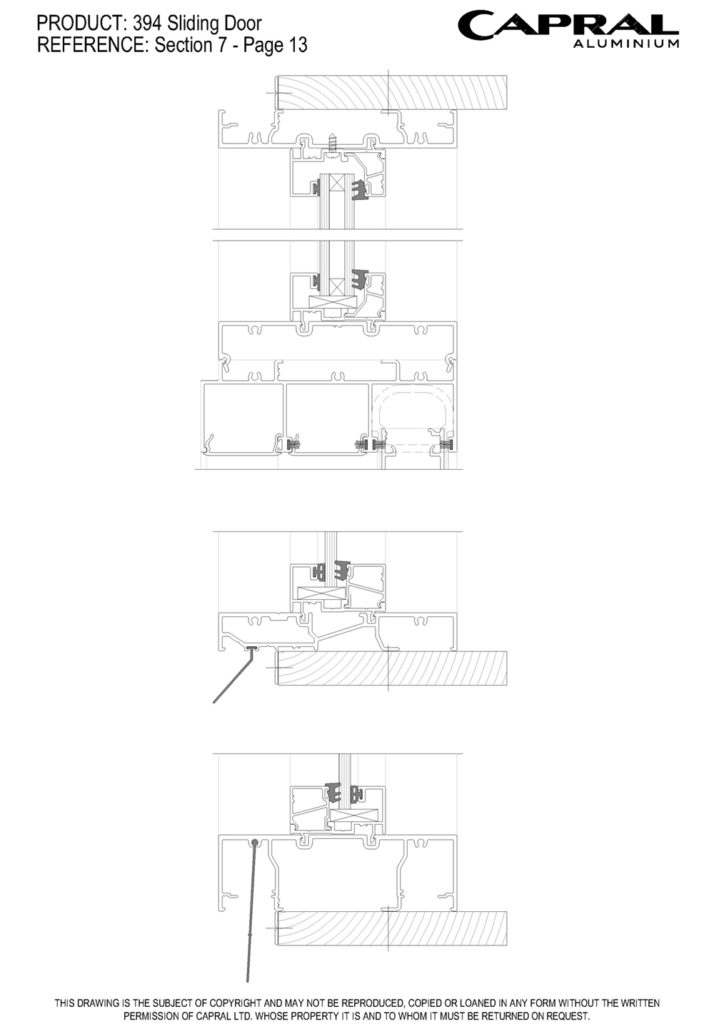

High Light

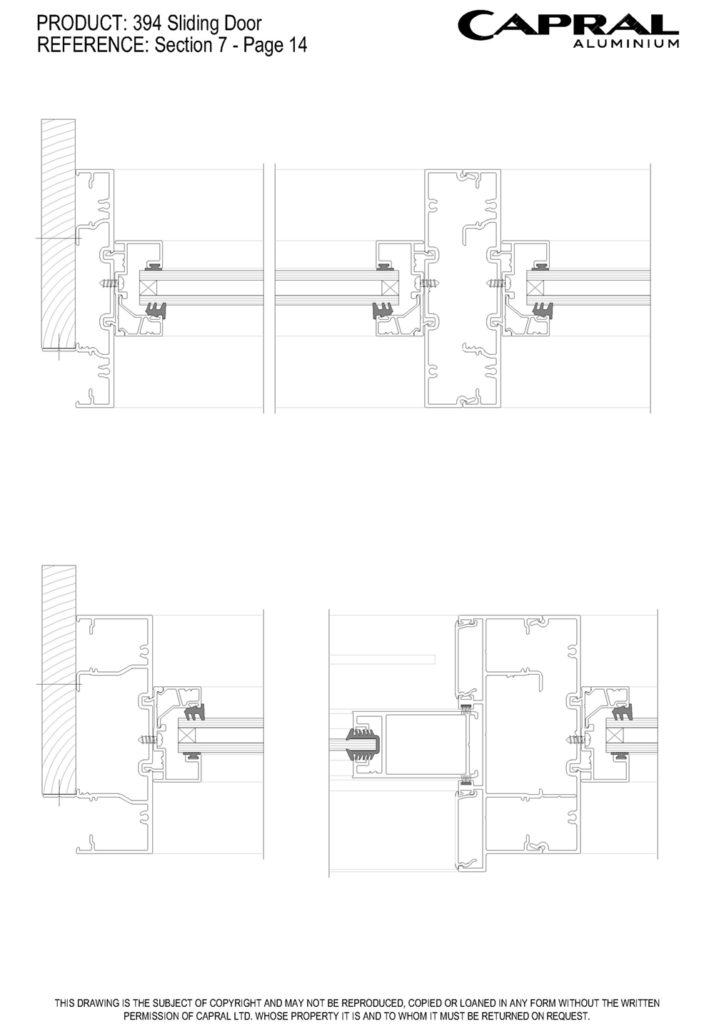

Side Light

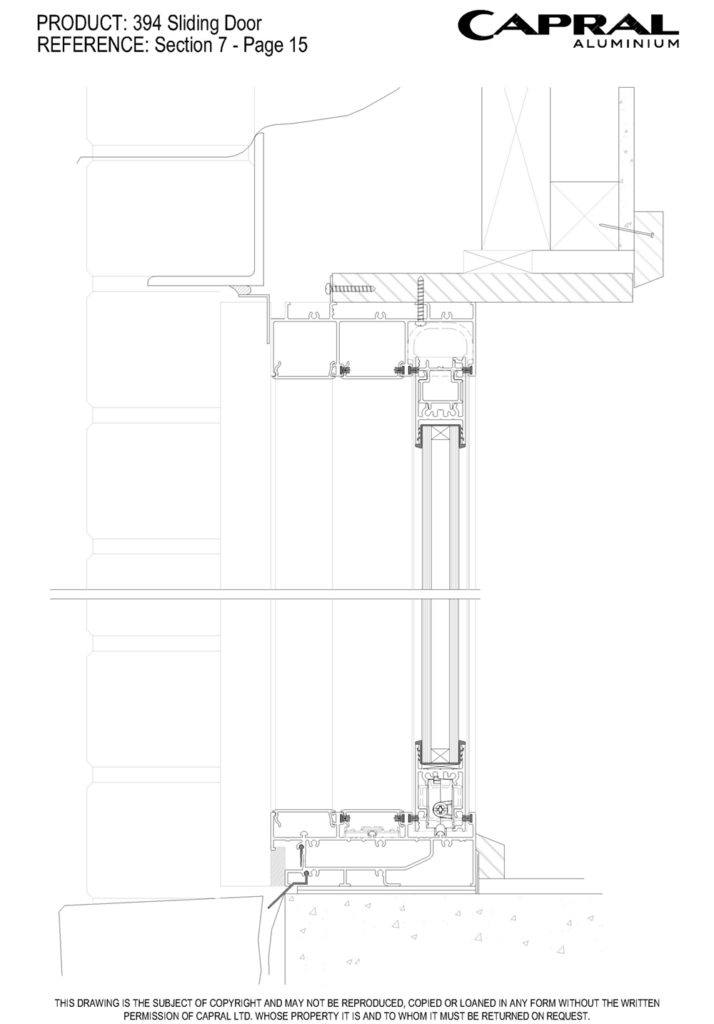

Cavity (Ver)

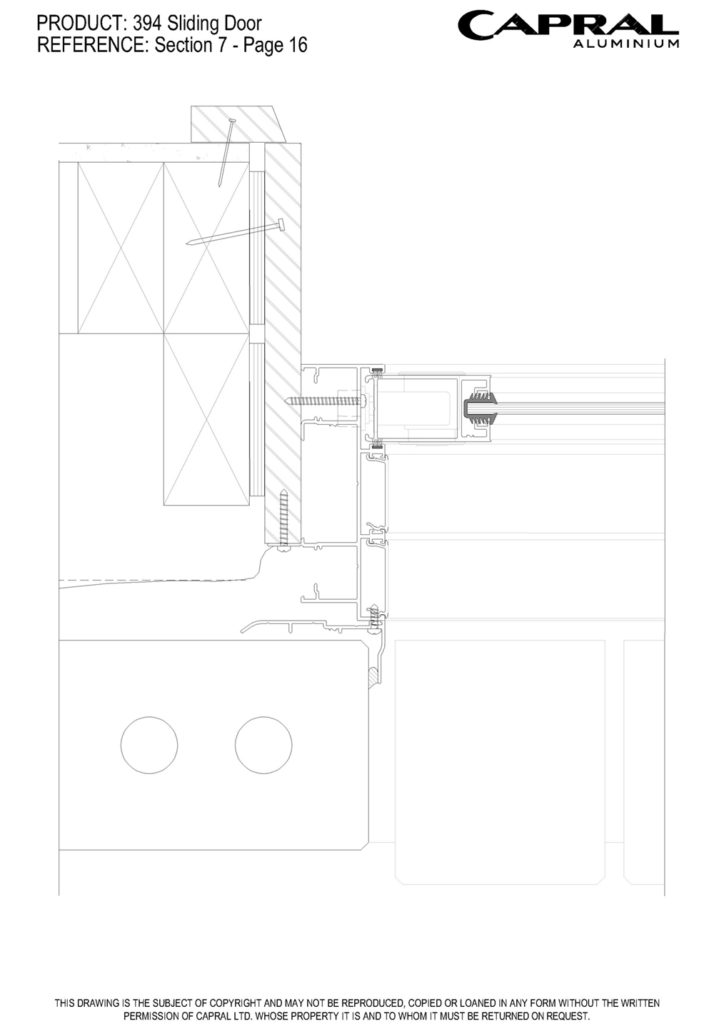

Cavity Lock Jamb

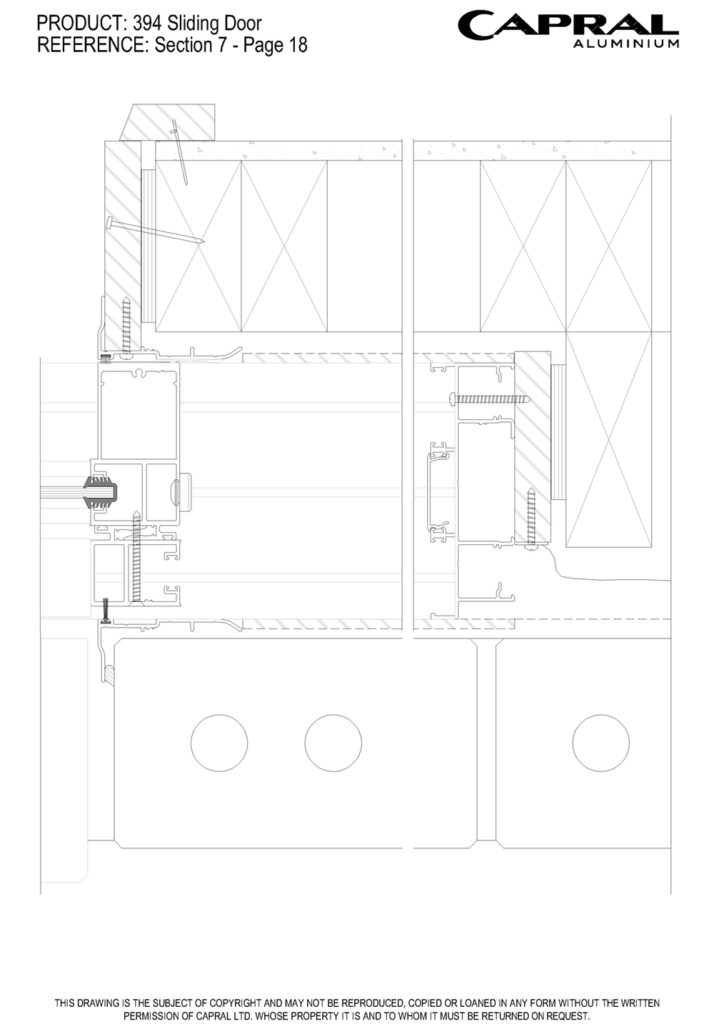

Cavity Wall Interlock & Jamb

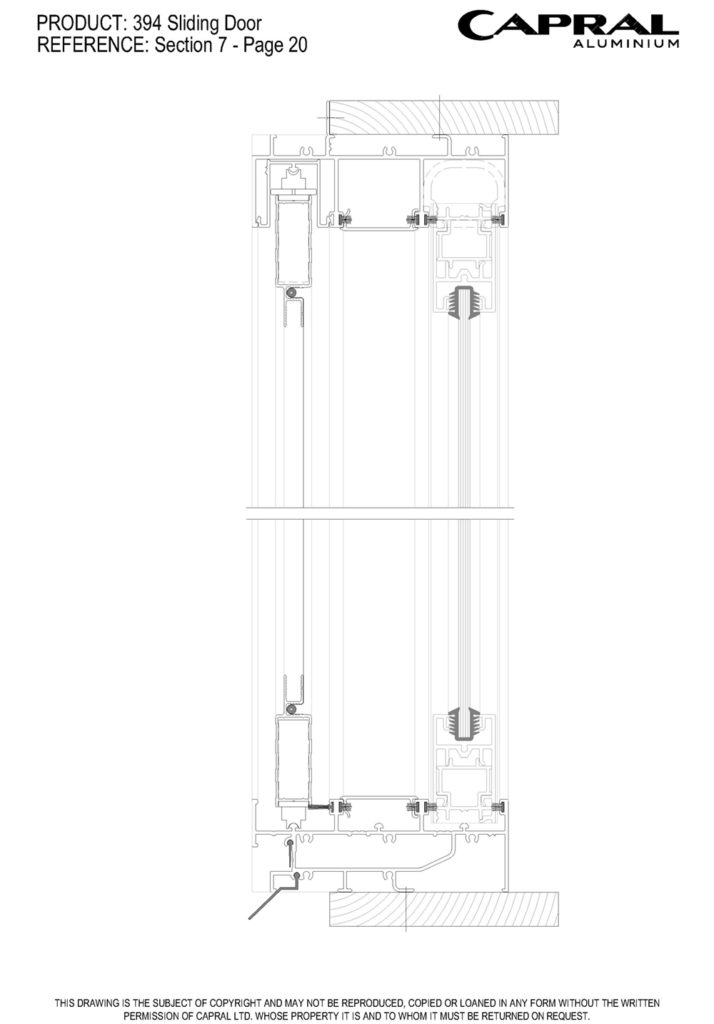

Integrated Screen (Ver)

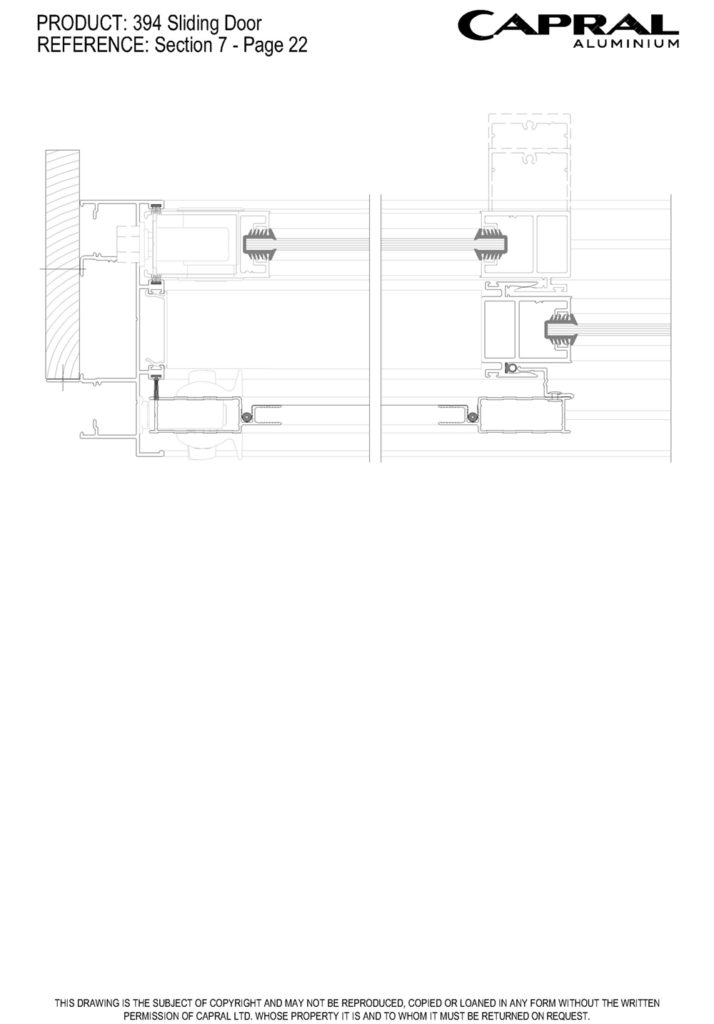

Integrated Screen (Hor)

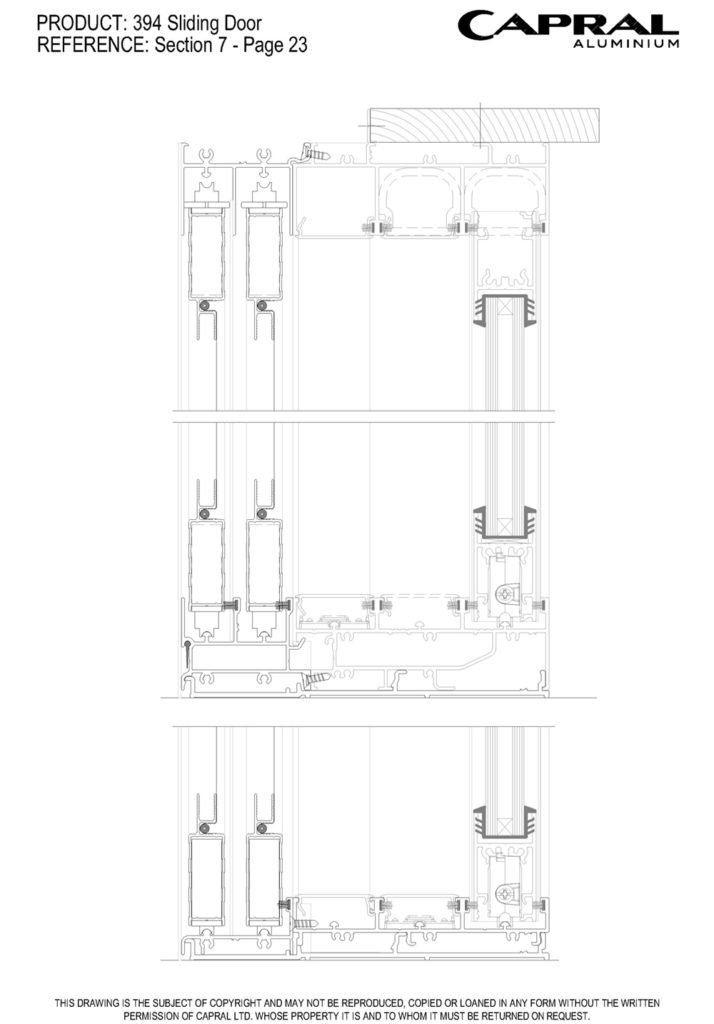

Multistack Screen (Ver)

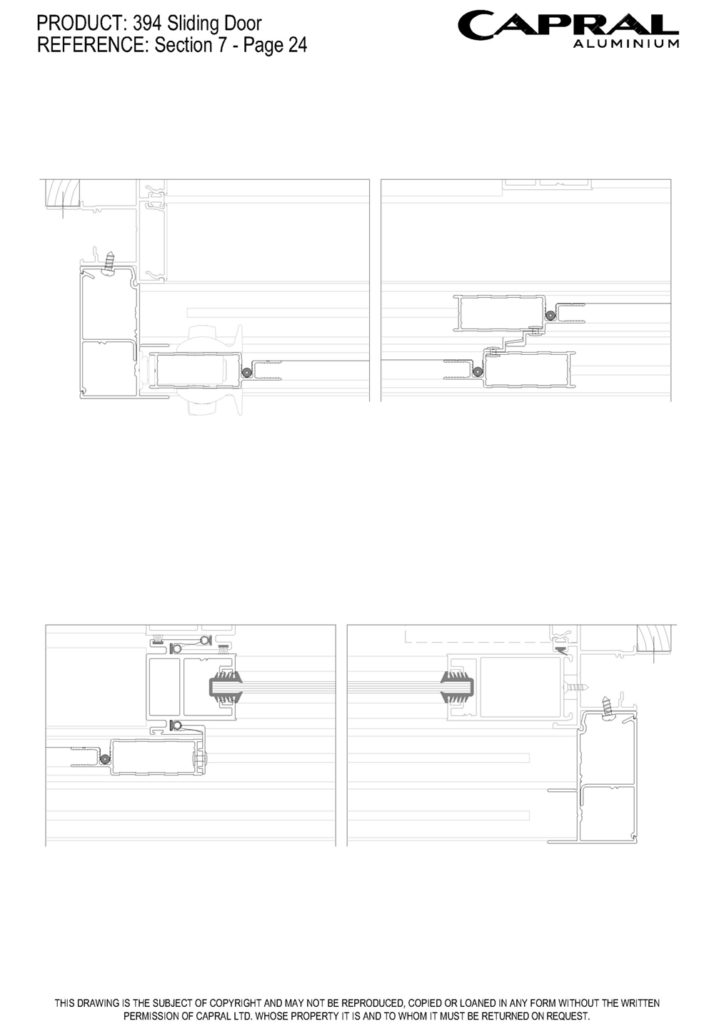

Multistack Screen (Hor)

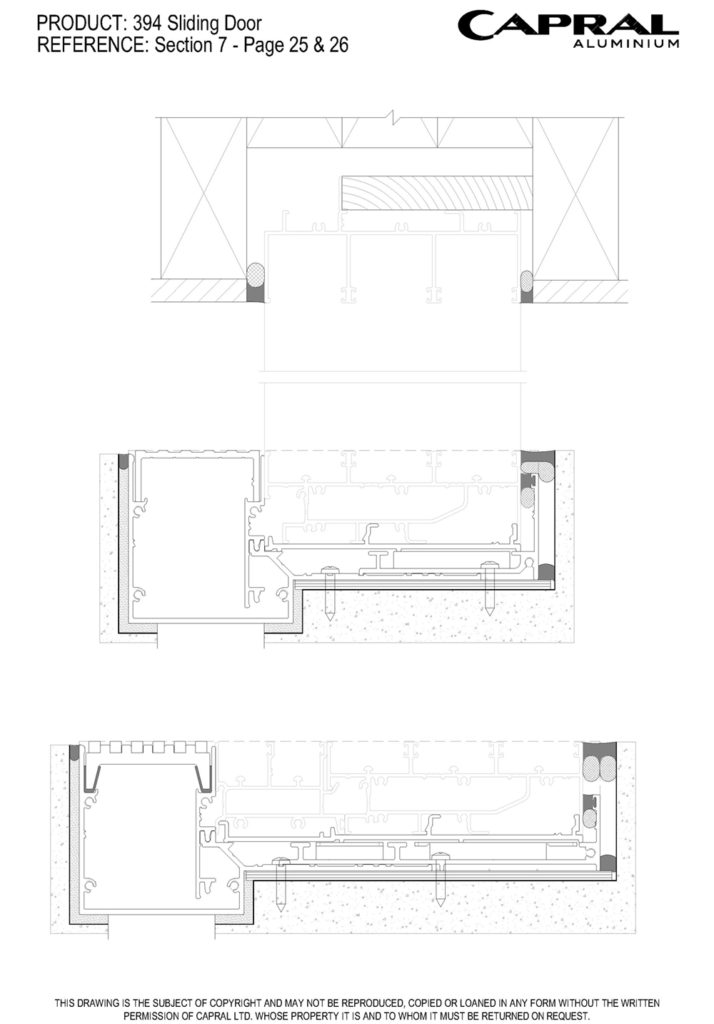

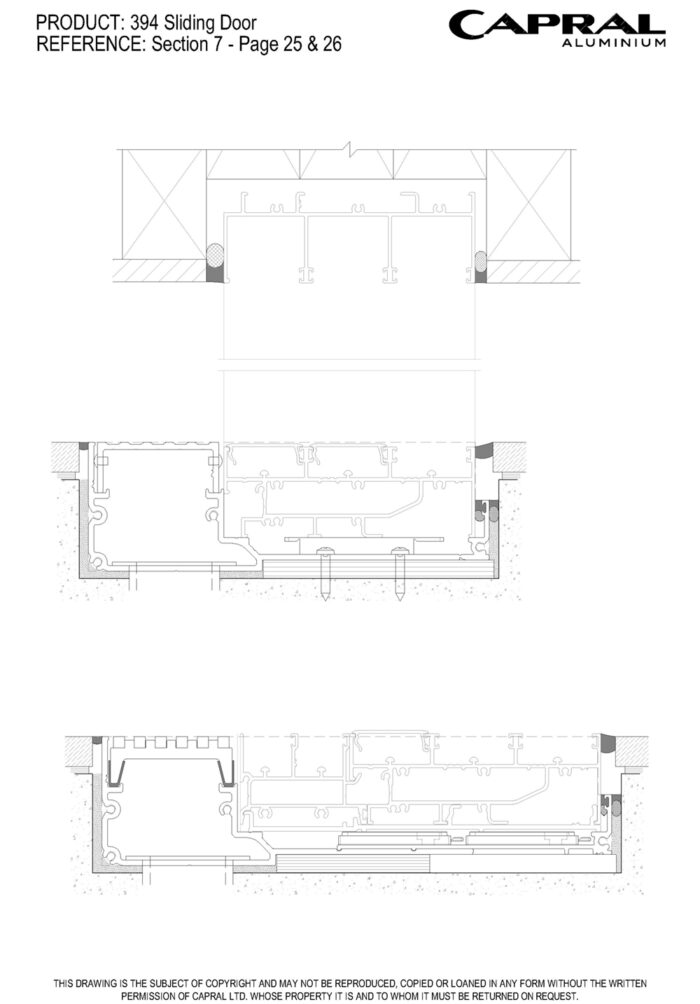

Linear Grate Sills
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual UrbanPlus 394 Sliding Door
Wall Charts
Extrusion Wall Chart Capral Screening
Extrusion Wall Chart Urban Plus Doors
CAD Files
CAD Files Urban Plus 394 Sliding Door
CAD Files Capral Screening
CAD Wall Chart UrbanPlus Windows and Doors
Bulletins
PB305 - Urban Plus to AGS Couplers
PB317 - Urban Plus Designer Residential 394 Sliding Door
PB298 - Universal Head Capping
Other
NATSPEC Branded Work SectionCompatible Products
