Residential

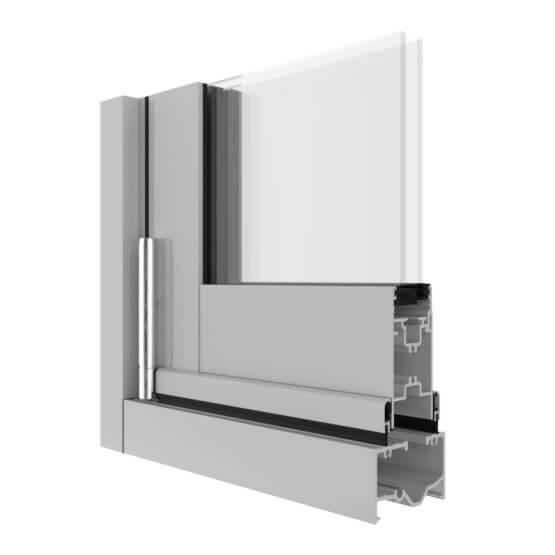

Urban Plus 395 Folding Window
The Urban Plus Folding window delivers seamless operation, classic style and excellent flexibility for residential or commercial applications. Incorporating an innovative bottom rolling mechanism ensuring that even double glazed panels glide effortlessly.
Certified
Rated
Key features
- Bottom rolling mechanism for long term smooth operation
- Accepts double glazing providing excellent energy efficiency
- Complementary hardware from the Caprio and Caprice range

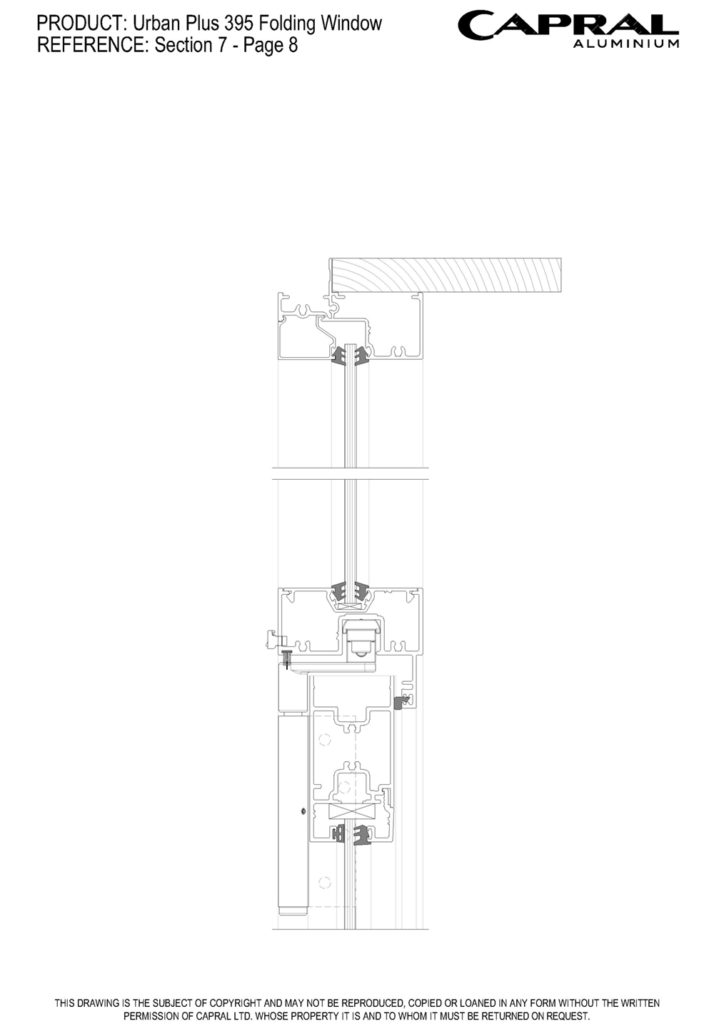

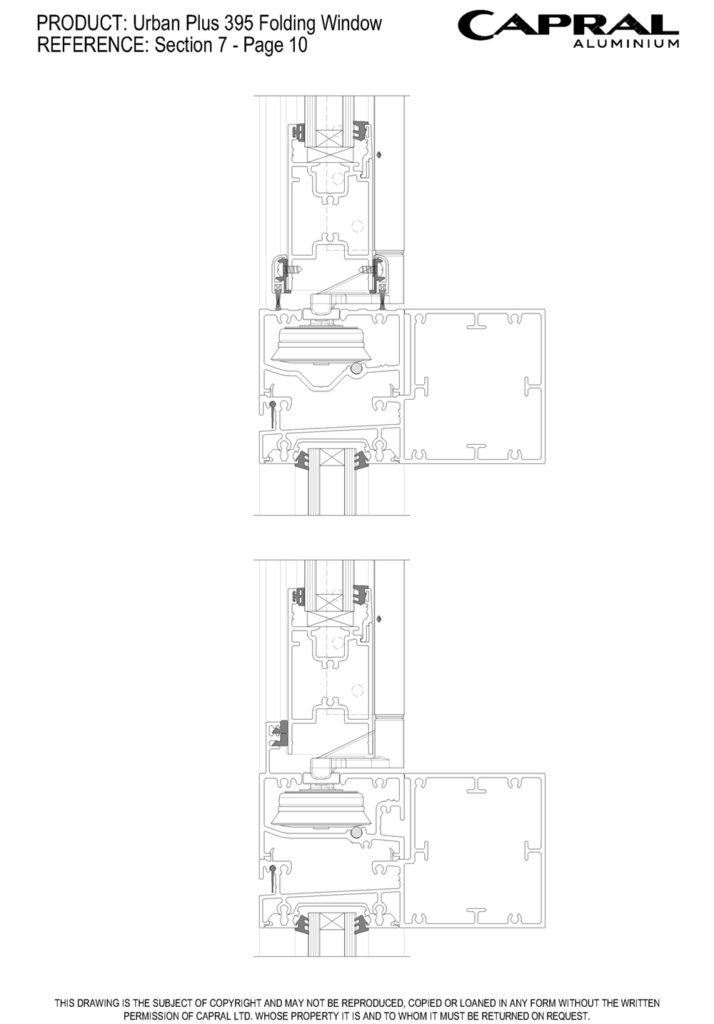

- Can be installed with fixed low lites or high lites
- Incorporates Stainless Steel hinges, rollers and flush-bolts

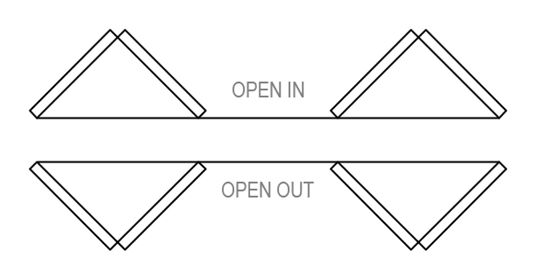

- Available in open in and open out configurations
The Urban Plus Folding window delivers seamless operation, classic style and excellent flexibility for residential or commercial applications. Incorporating an innovative bottom rolling mechanism ensuring that even double glazed panels glide effortlessly.
The Urban Plus Folding window can be installed in configurations incorporating glazed low lites. It is ideal for balconies or serveries, including cafes, due to the systems open-in operation capability. Flush bolt rods and stainless steel hinges ensure durability and long-term performance.
Complementary hardware from the Caprio or Caprice range provide the finishing touches for this versatile and stylish window system. A beautiful addition to your home or alfresco area.
Details
Product Specs

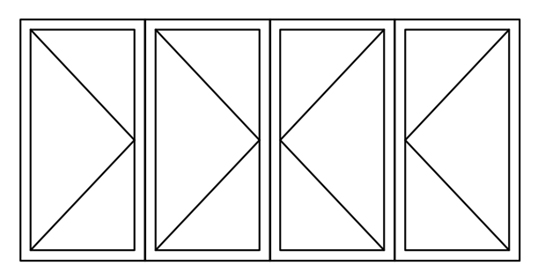

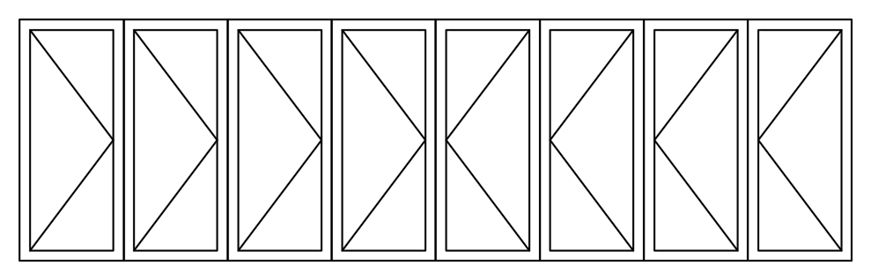

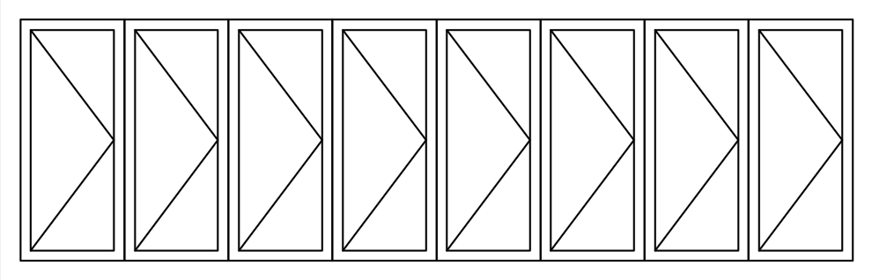

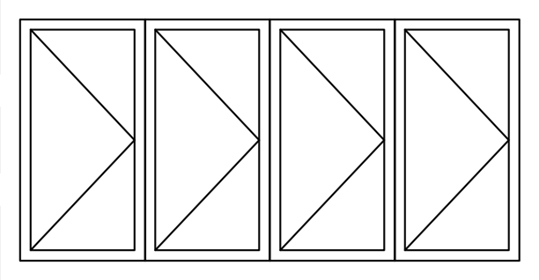

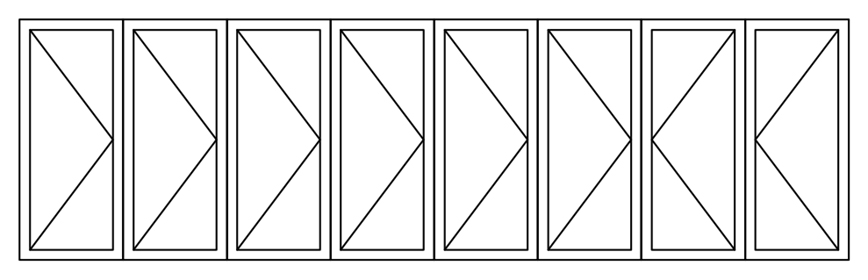

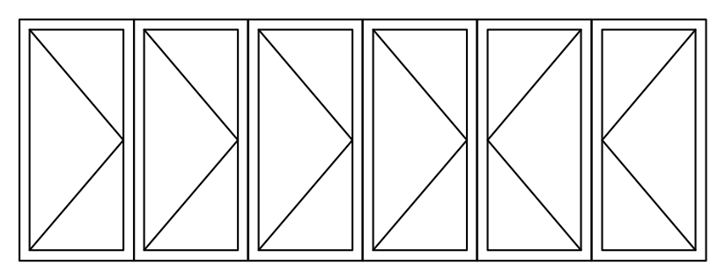

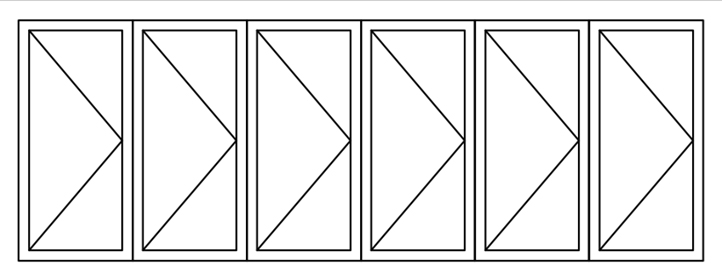

Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2100
Panel Width (mm)
900
Panel Weight (kg)
80
Frame Dimensions (mm)
Frame depth (mm)
76
Acoustic Rating
Rw (C;Ctr)
34(0;-2)
Maximum Product Performance
SLS (Pa)
2400
ULS (Pa)
5600
WATER (Pa)
600
Water performance result is based on open out configuration
Glazing Details
Single Glazed
4 - 14
Double Glazed
19 - 31
Thick Glazed
14 - 18
Energy Performance
Uw Range
3.77 - 6.19
SHGC Range
0.15 - 0.50
Tvw Range
0.19 - 0.50
Air infiltration
0.21 - 0.21
