    Urban Plus 396 Folding Door

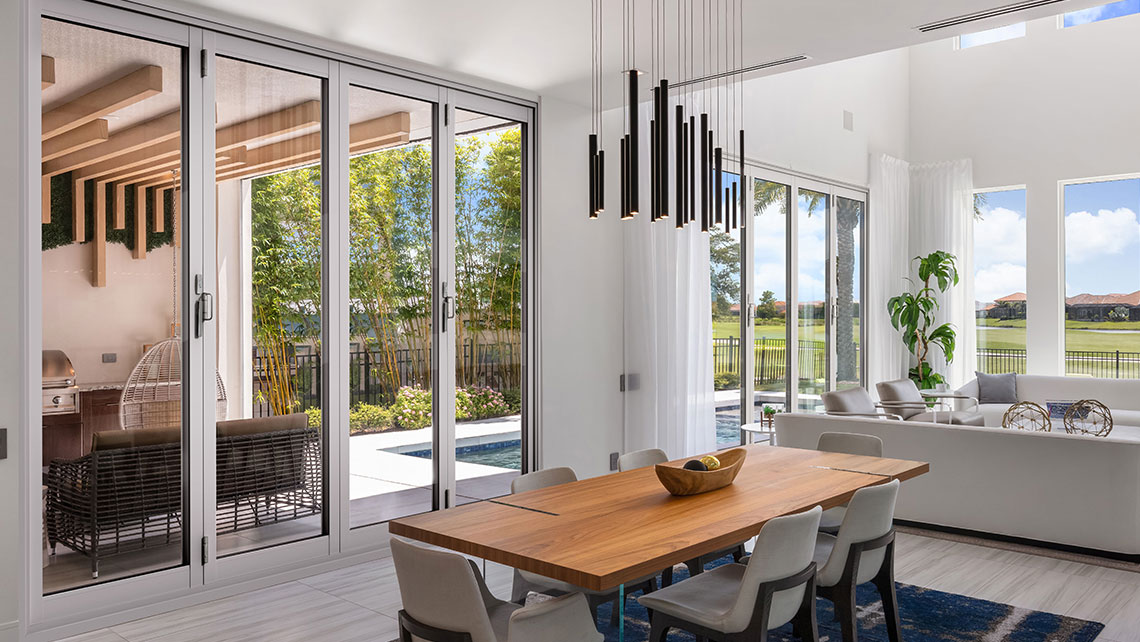

    The Urban Plus Folding door is a perfect solution to open your living spaces to the great outdoors. With clean bold styling and stainless-steel hardware the Urban Plus Folding Door is sure to deliver satisfaction for generations

    Download Brochure WERS Rating
    Residential Commercial
    Declare Label
    Certified
    Acoustic
    Rated
    Image Gallery Key Features Details Downloads Compatible Products More Products
    Jump to:
    Select
    Key features

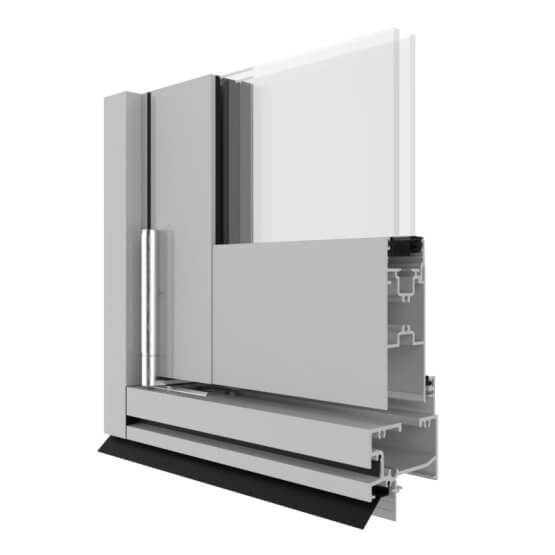

    • Bottom rolling mechanism for long term smooth operation
    • Accepts double glazing providing excellent energy efficiency
    • Complementary hardware from the Caprio and Caprice range
    • Incorporates Stainless Steel hinges, rollers and flush-bolts for long term durability
    • Available in open in and open out configurations

    The Urban Plus Folding door is perfect for opening your living spaces to the great outdoors. With clean bold styling and stainless-steel hardware the Urban Plus Folding door will surely deliver satisfaction for generations.

    An innovative bottom rolling mechanism supports panels, allowing them to guide seamlessly even when heavy double glazing is installed. Flexible hardware options from the Caprio and Caprice range ensure your style can be perfectly represented in your home. The classic folding door style continues to be a favorite in even the most contemporary of builds.

    The Urban Plus Folding door delivers a modern take on this classic door style providing excellent weather performance, energy efficiency and operability for your home.

    Download Brochure

    Details

    Product Specs
    Configurations
    Arrangements

    Maximum Product Sizes

    Panel Height (mm) 2700
    Panel Width (mm) 1000
    Panel Weight (kg) 80

    Frame Dimensions (mm)

    Frame depth (mm) 76

    Acoustic Rating

    Rw (C;Ctr) 30(-1;-2)

    Maximum Product Performance

    SLS (Pa) 3000
    ULS (Pa) 5300
    WATER (Pa) 600

    Glazing Details

    Single Glazed 4 - 14
    Double Glazed 19 - 31
    Thick Glazed 14 - 18

    Sill Options

    Option 1 72 Std Sill
    Option 2 45 Flat Sill

    Energy Performance

    Uw Range 3.23 - 5.89
    SHGC Range 0.25 - 0.55
    Tvw Range 0.25 - 0.58
    Air infiltration 0.04 - 0.04
    WERS Rating
    Residential Commercial

    Downloads

    Technical Documents, CAD & Revit
    Other
    Technical Manuals
    Technical Manual Urban Plus 396 Folding Door
    Wall Charts
    Extrusion Wall Chart Urban Plus Doors
    CAD Files
    CAD Files Urban Plus 396 Folding Door
    CAD Files Capral Screening
    CAD Wall Chart Urban Plus Windows & Doors
    Bulletins
    PB305 - Urban Plus to AGS Couplers
    PB298 - Universal Head Capping
    Other
    Capral Urban Plus 396 Folding Door Brochure Specification Urban Plus 396 Folding Door Capral Installation Details
    NATSPEC Branded Work Section
    Environmental Protection Declaration (EPDs)
    EPD-IES-0031050:001 LocAl Version: 1 (2026-05-28)
    EPD-IES-0032247:001 LocAl SG Version: 1 (2026-06-12)
