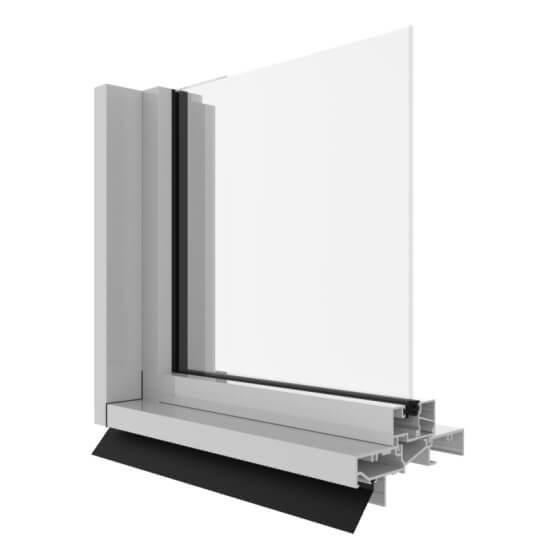

Urban Plus Fixed Light Window (125mm)
The Urban Plus Fixed Light Window has been designed to provide a clean and streamlined appearance to complement the range of Urban Plus operable windows and doors.
Certified
Rated
Tested
Key features
- Single and double glazing options

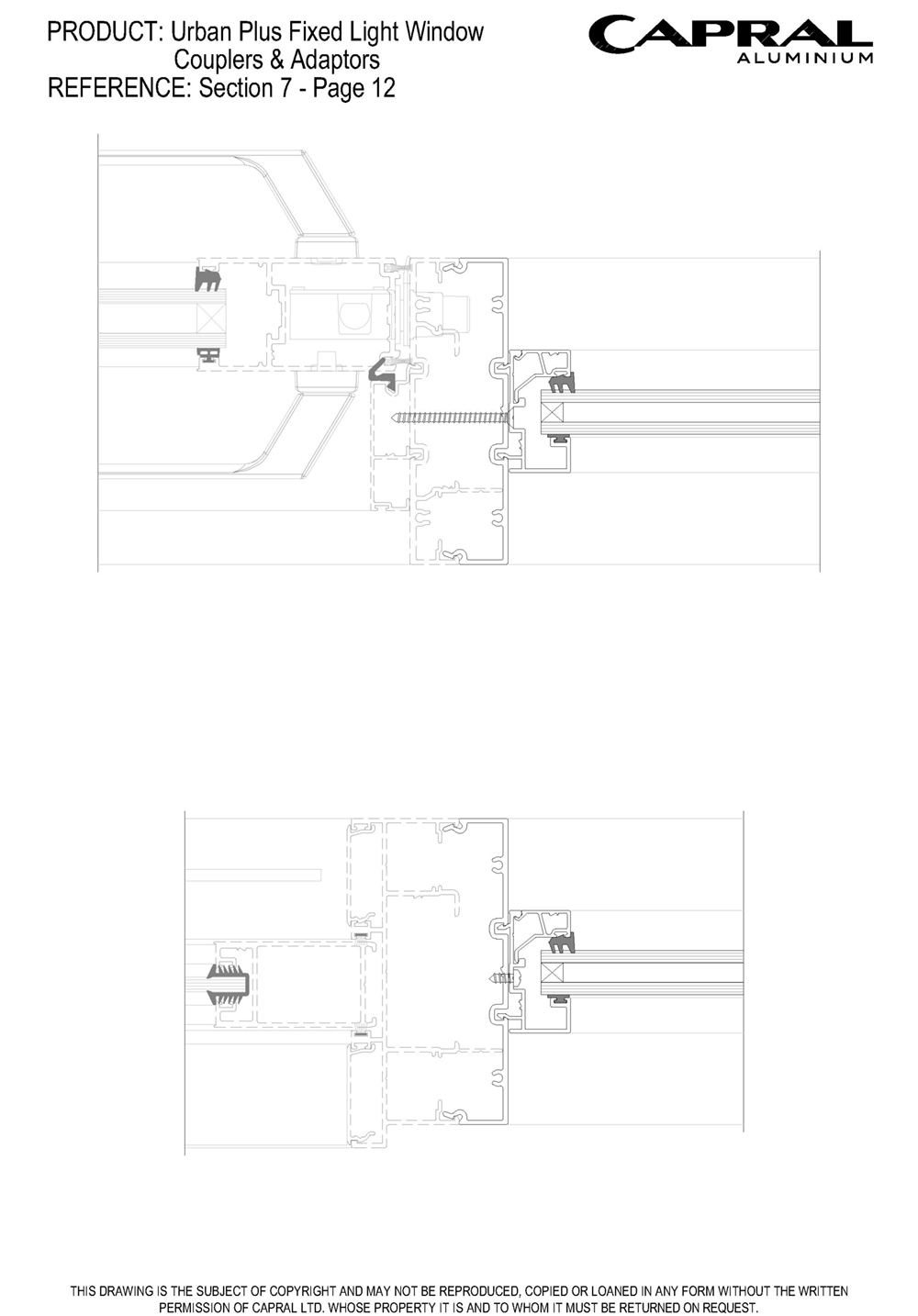

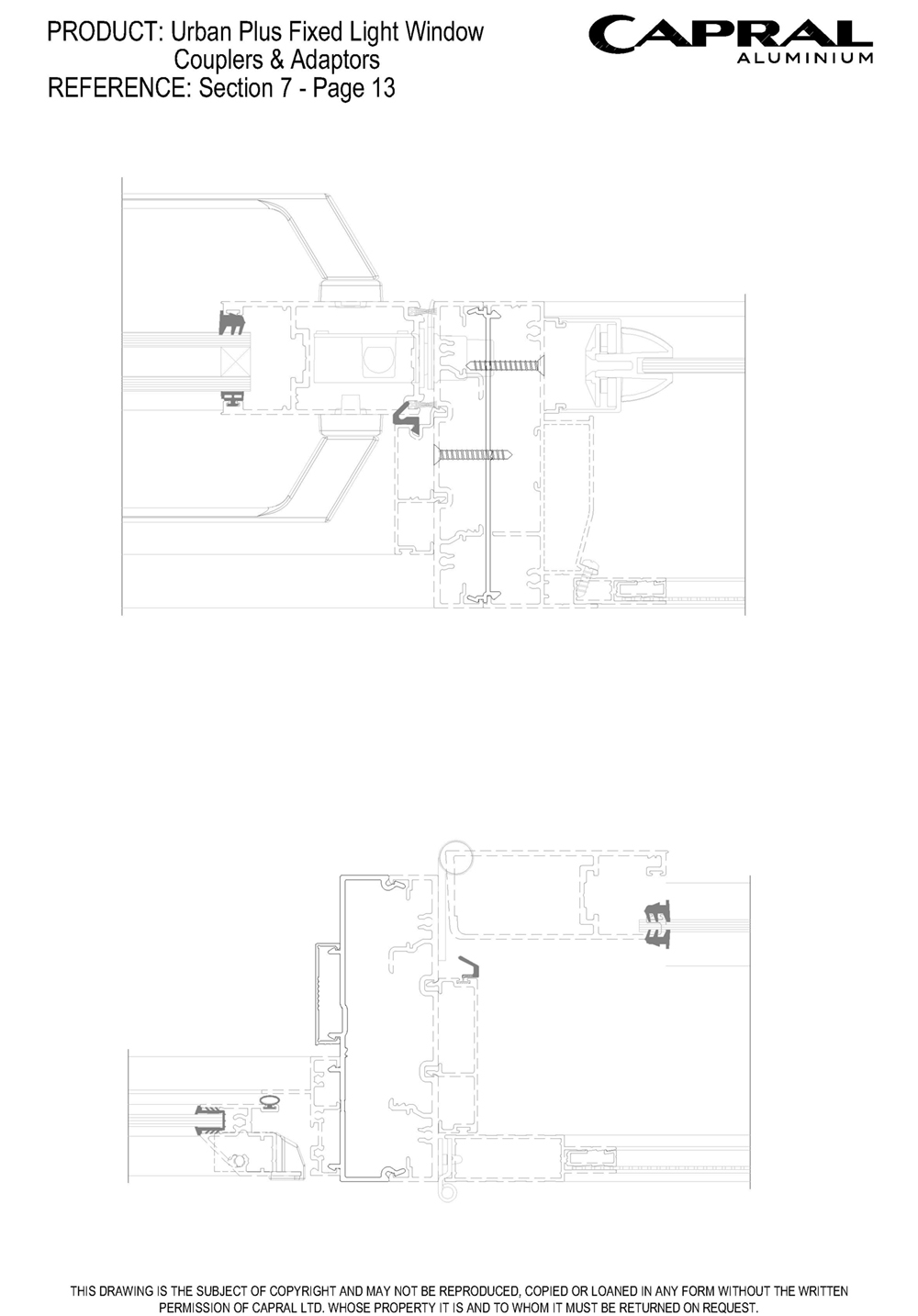

- Range of couplers available for large fixed lights
- Bushfire rated options
- Compatible with other Urban Plus products
The Urban Plus Fixed Light Window is designed to provide a clean and streamlined appearance to complement the range of Urban Plus operable windows and doors.
Fixed light windows can be coupled to all windows within the Urban Plus range or used independently where openings are not required. Frame the perfect vista, maximise natural light and enjoy the great outdoors with an Urban Plus Fixed Light Window to expand your view.
Details
Product Specs
Configurations
Arrangements
Maximum Product Sizes
Panel Height (mm)
2700
Panel Width (mm)
2700
Panel Area (m2)
3.2
Frame Dimensions (mm)
Frame depth (mm)
125mm
Acoustic Rating
Rw (C;Ctr)
40(-1;-4)
Bushfire Rating
BAL
40
Maximum Product Performance
SLS (Pa)
1600
ULS (Pa)
2700
WATER (Pa)
600
Glazing Details

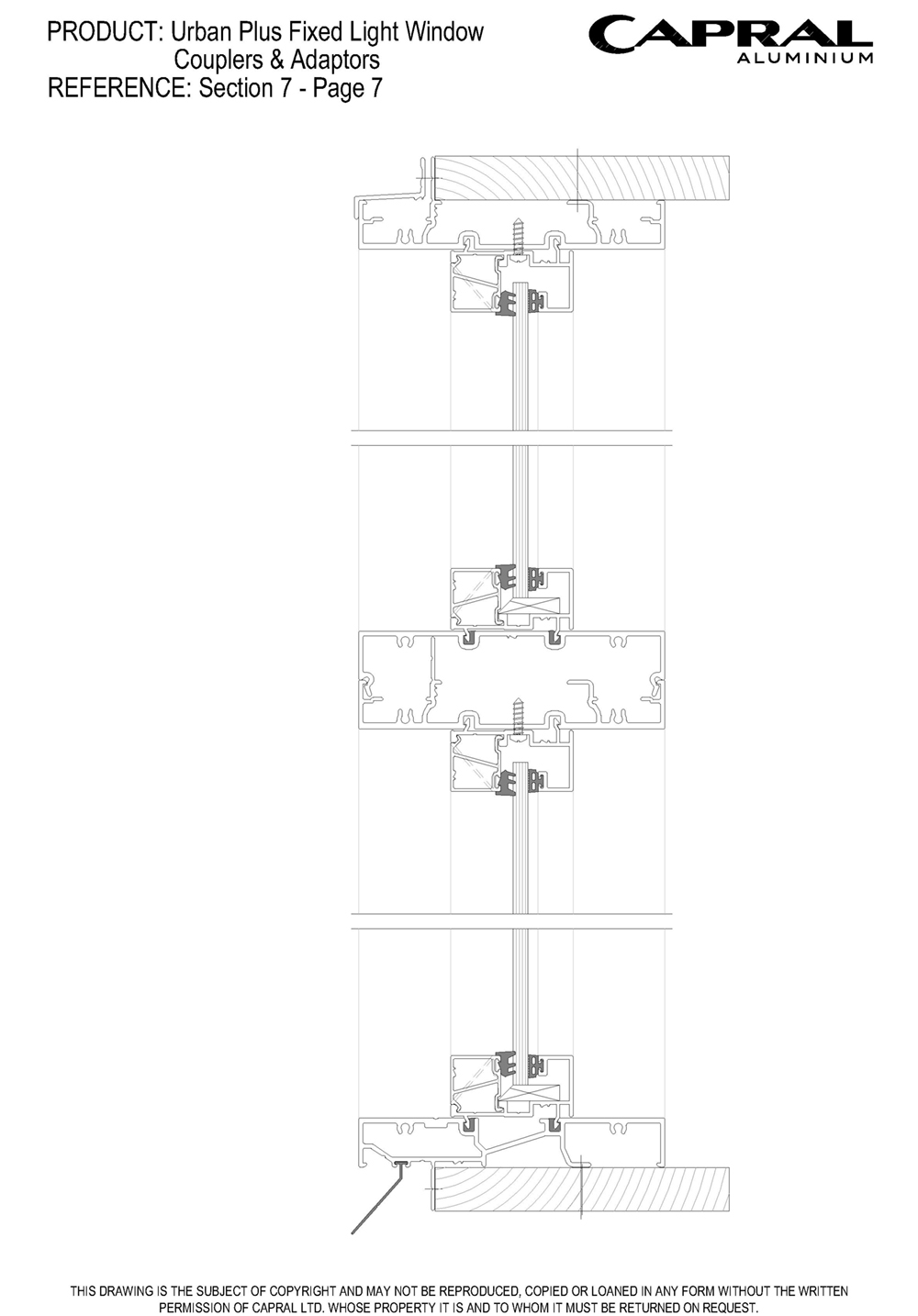

Single Glazed
4 - 10

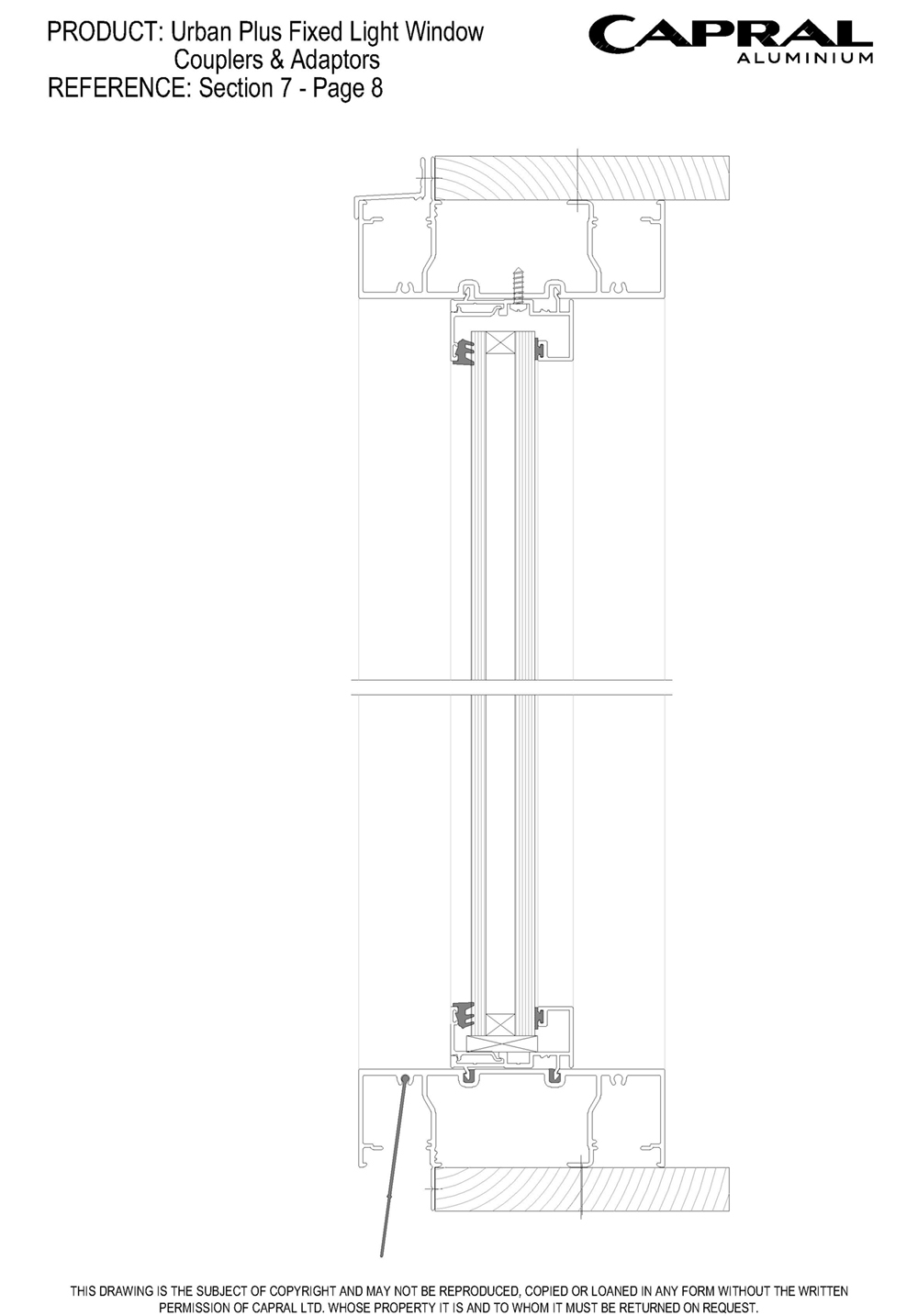

Double Glazed
16 - 28
Thick Glazed
10 - 16
Energy Performance
Uw Range
2.77 - 6.30
SHGC Range
0.28 - 0.72
Tvw Range
0.32 - 0.76
Air infiltration
0.22 - 0.22
Downloads
Technical Documents, CAD & Revit
Other
Technical Manuals
Technical Manual AGS Sub Frames
Technical Manual Urban Plus Fixed Light Windows, Couplers & Adaptors
Wall Charts
Extrusion Wall Chart Urban Plus Doors
CAD Files
CAD Files Urban Plus Fixed Light, Couplers & Adaptors
CAD Wall Chart Urban Plus Windows & Doors
Bulletins
PB331 - Urban Plus Fixed Light Release
PB298 - Universal Head Capping
Other
NATSPEC Branded Work SectionCompatible Products
